Features

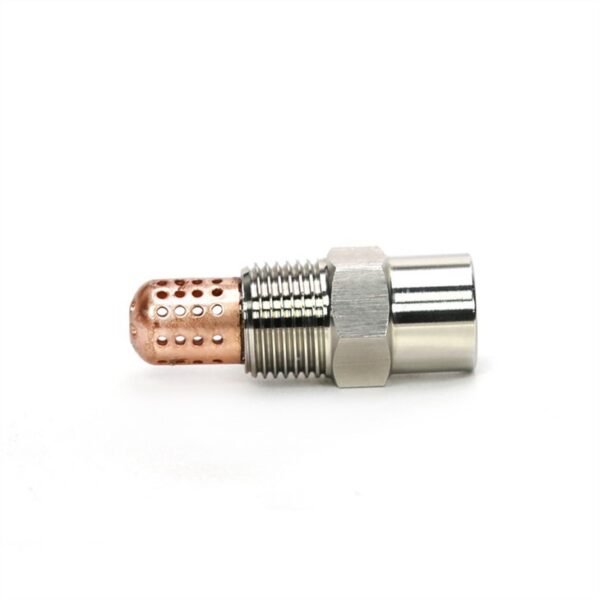

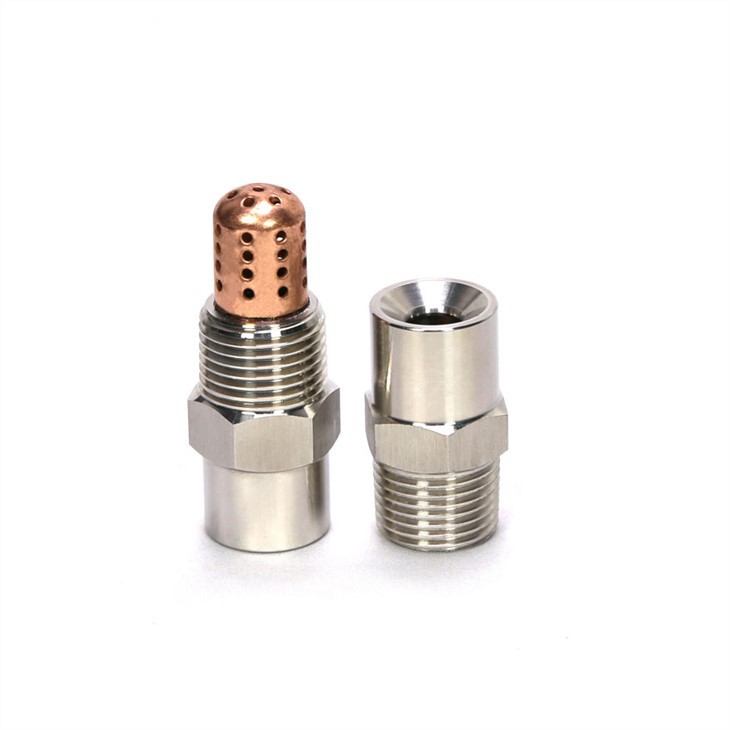

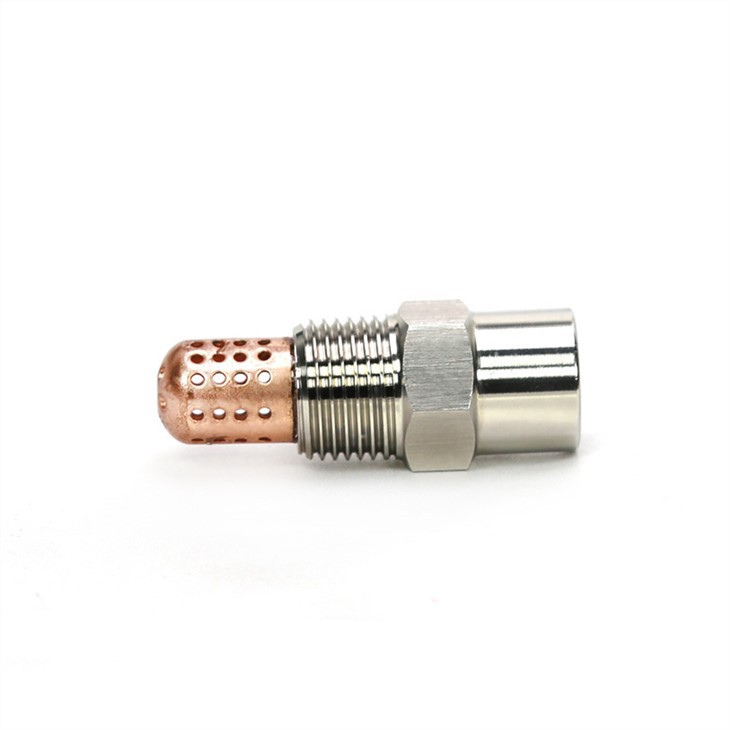

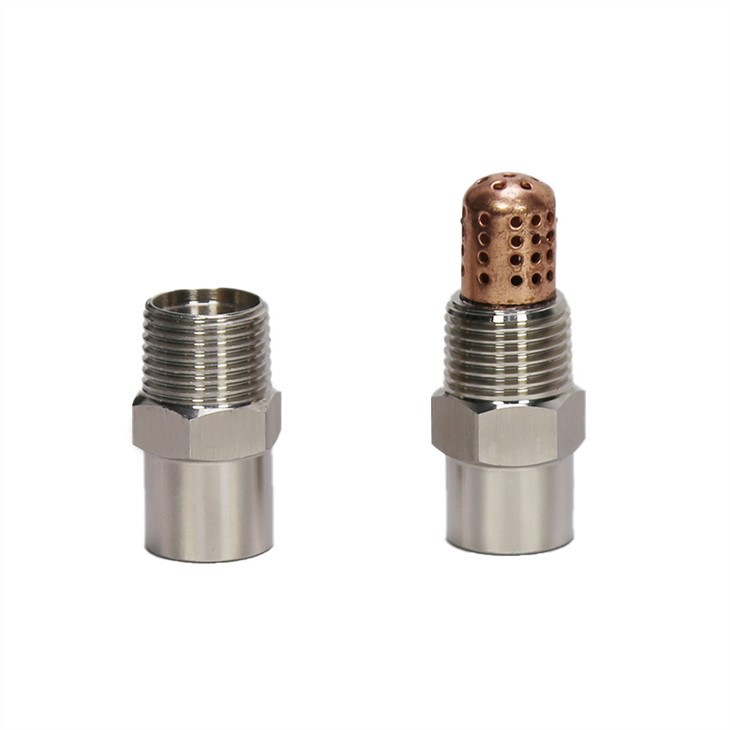

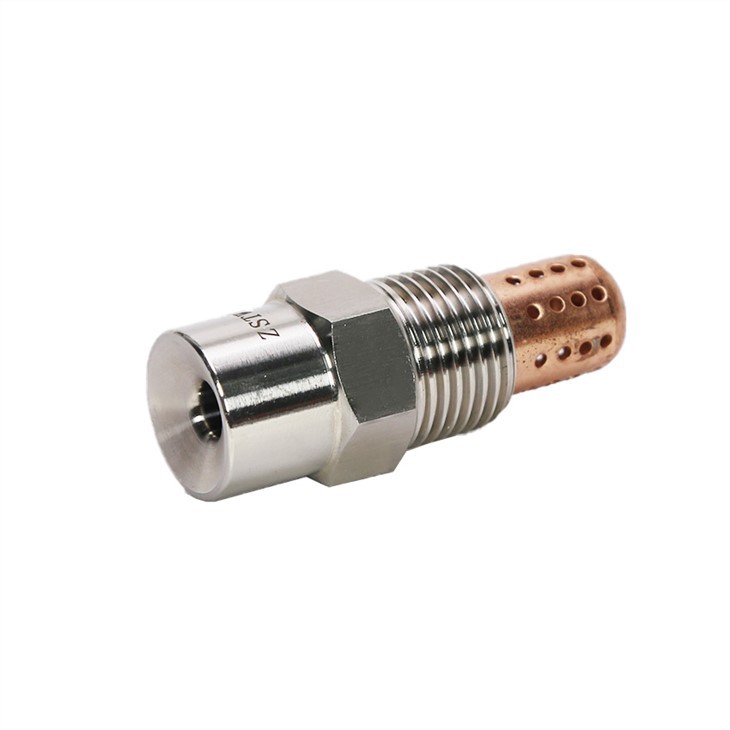

• The series of ZSTWB High Speed Centrifugal Full Cone Nozzles breaks down a certain pressure of water into two streams, one of which is a rotating water stream that moves along the inner wall and has a centrifugal velocity. The other is a straight water flow with axial velocity, two water streams meet at the nozzle of the nozzle, and is sprayed at the synthesis speed to form atomization
• Working pressure: 2-8 Bar
• Spray angles: 60⁰ to 120⁰
• Choices of materials: Stainless steel, brass with chrome-plated or natural color
• Connections: 1/2” to 1”
General Application
1) Fire proof
2) Quick cooling
Description
|
Model |
ZSTWB |
|
Spray pattern |
Full cone |
|
Inner connection |
1/2’’; 3/4’’; 1’’ |
|
Spray angle |
120°/90°/60° |
Parameter
|
Style No. |
Flow rate ( L/min) |
Spray Angle |
K Factor |
Thread Size |
| 3 bar | ||||
|
ZSTWB16/60 |
30 |
60° |
16 |
1/2″ |
|
ZSTWB16/90 |
30 |
90° |
16 |
1/2″ |
|
ZSTWB16/120 |
30 |
120° |
16 |
1/2″ |
|
ZSTWB21.5/60 |
40 |
60° |
21.5 |
1/2″ |
|
ZSTWB21.5/90 |
40 |
90° |
21.5 |
1/2″ |
|
ZSTWB21.5/120 |
40 |
120° |
21.5 |
1/2″ |
|
ZSTWB26.5/60 |
50 |
60° |
26.5 |
3/4″ |
|
ZSTWB26.5/90 |
50 |
90° |
26.5 |
3/4″ |
|
ZSTWB26.5/120 |
50 |
120° |
26.5 |
3/4″ |
|
ZSTWB33.7/60 |
63 |
60° |
33.7 |
3/4″ |
|
ZSTWB33.7/90 |
63 |
90° |
33.7 |
3/4″ |
|
ZSTWB33.7/120 |
63 |
120° |
33.7 |
3/4″ |
|
ZSTWB43/60 |
80 |
60° |
43 |
3/4″ |
|
ZSTWB43/90 |
80 |
90° |
43 |
3/4″ |
|
ZSTWB43/120 |
80 |
120° |
43 |
3/4″ |
|
ZSTWB53.5/60 |
100 |
60° |
53.5 |
3/4″ |
|
ZSTWB53.5/90 |
100 |
90° |
53.5 |
3/4″ |
|
ZSTWB53.5/120 |
100 |
120° |
53.5 |
3/4″ |
|
ZSTWB67.5/90 |
125 |
90° |
67.5 |
1″ |
|
ZSTWB80/90 |
150 |
90° |
80 |
1″ |
|
ZSTWB86/90 |
160 |
90° |
86 |
1″ |
|
ZSTWB107/90 |
200 |
90° |
107 |
1″ |
|
ZSTWB117/90 |
220 |
90° |
117 |
1″ |
Ordering information
|
ZSTWB16/60 |
1/4’’ |
SS |
|
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
