Features
Compared to the standard cat-eye-shaped flat fan nozzle tips, High Impact Tongue Type V type Deflector Narrow Angle Flat Fan Spray Nozzles have a larger and free inner passage and are less subject to clogging.
• V type Deflector Narrow Angle Flat Fan Spray Nozzles are designed with a spoon-shaped deflected surface to concentrate the liquid flow
• Thread: 1/8″ – 3/4″, Spray angle: 15° – 50°, Materials: AISI 303, AISI 316, Brass
• V type Deflector Narrow Angle Flat Fan Spray Nozzles produce a narrow-angle flat fan spray with a high impact value which are used in in all working environments requiring powerful jets
• Compared to the standard cat-eye-shaped flat fan nozzle tips, High Impact Tongue Type V type Deflector Narrow Angle Flat Fan Spray Nozzles have a larger and free inner passage and are less subject to clogging
• Sharply defined spray with high impact at low pressures.
• A wide selection of flow rates, spray angles with various standard materials and connections.
• V type Deflector Narrow Angle Flat Fan Spray Nozzles produce a sharp linear spray side way
• Nozzles of this type provides high performance cleaning efficiency and have an extended operating life
• Stable spray angle with uniform, parabolic distribution of liquid.
• Spray pipes equipped with these nozzles show an extremely uniform total distribution of liquid.
|

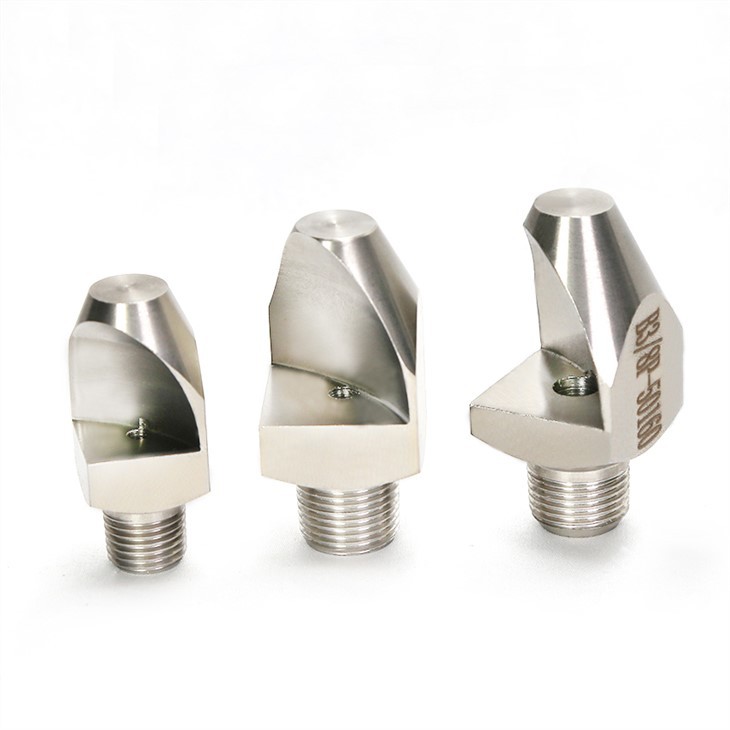

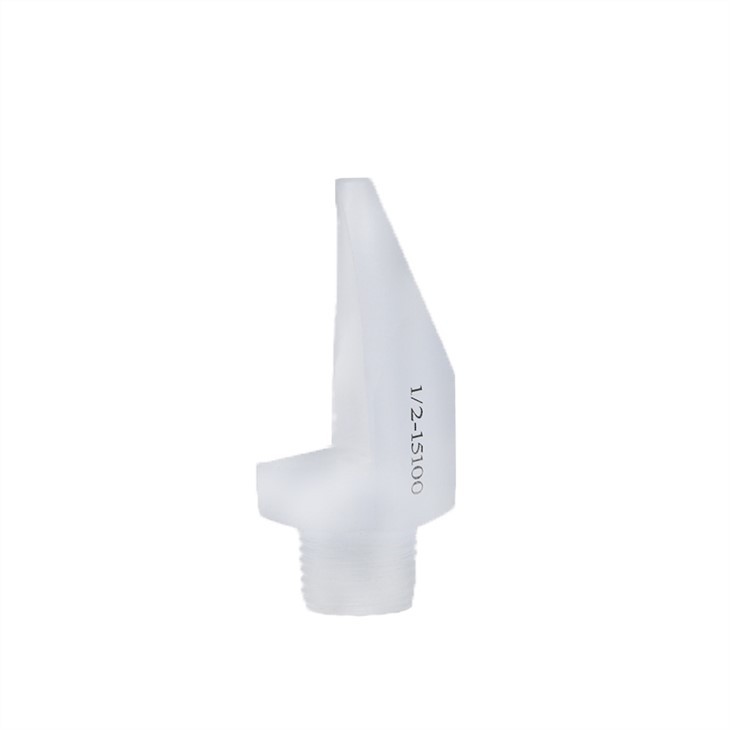

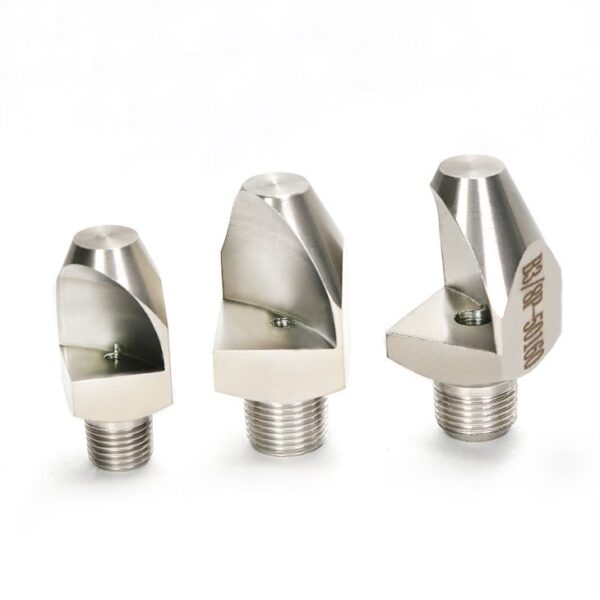

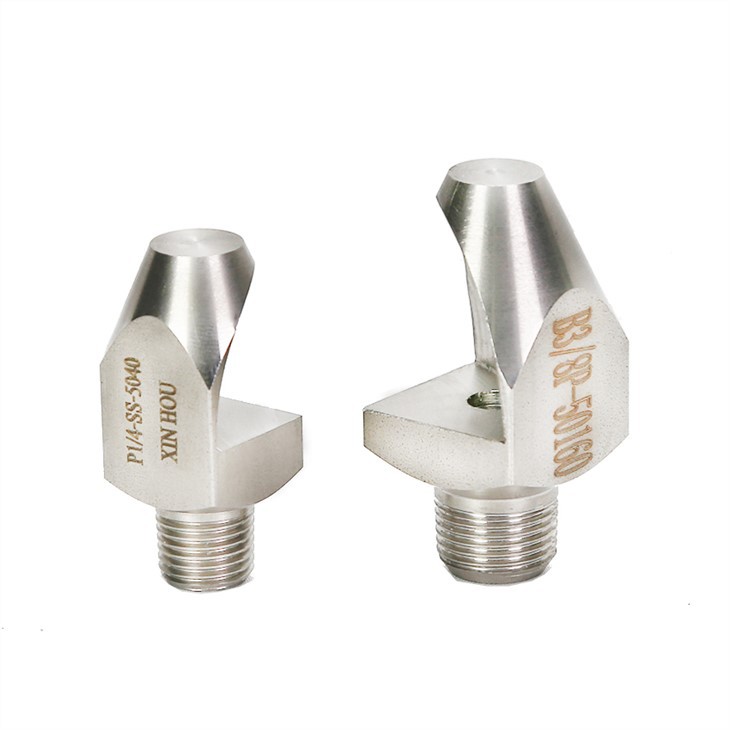

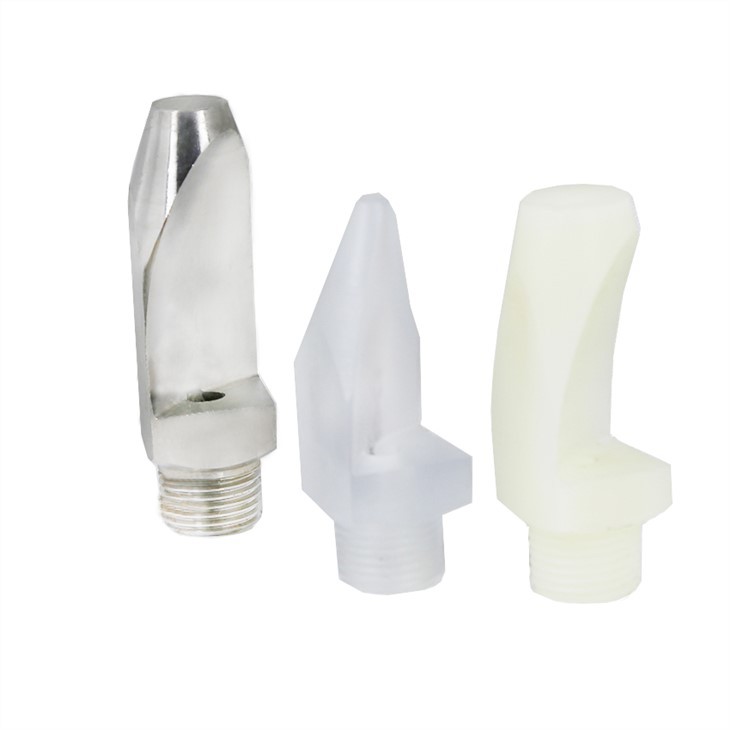

V Type Deflector Narrow Angle Flat Fan Spray Nozzles |
Narrow Angle Flat Fan Spray Nozzles |
Description
|
Model |
V |
|
Inlet connection |
1/8”1/4”3/8”1/2”3/4” BSPT or NPT |
|
Spray pattern |
Flat Fan |
|
Working pressure |
Up to 35 bar (500 psi) |
|
Flow Rate |
1.0-410L/min |
|
Spray angle |
50°/40°/35°/25°/15° |
|
Application |
Cleaning,Washing,Rinsing,Cooling,Quenching |
|
Lead time |
1-2 days after payment |
|
Delivery |
DHL,FedEx,UPS,TNT,EMS |
|
Payment |
T/T,Western Union,Paypal,Credit Card,Ali pay,We chat pay |
Parameter
|
Spray angle at 3 bar |
Flow Code |
Orifice dia. (mm) |
Flow rate (L/min) |
Spray angle |
Deflection angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
1 bar |
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
10 bar |
1 bar |
3 bar |
7 bar |
||||
|
50° |
5010 |
2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6 |
7.2 |
34° |
50° |
50° |
60° |
|
5025 |
2.8 |
5.7 |
8.1 |
9.9 |
11.4 |
12.7 |
14 |
15.1 |
18 |
42° |
50° |
50° |
42° |
|
|
5040 |
3.6 |
9.1 |
12.9 |
15.8 |
18.2 |
20 |
22 |
24 |
29 |
39° |
50° |
50° |
45° |
|
|
5060 |
4.8 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
42° |
50° |
55° |
37° |
|
|
50100 |
6 |
23 |
32 |
39 |
46 |
51 |
56 |
60 |
72 |
43° |
50° |
50° |
40° |
|
|
50125 |
6.7 |
28 |
40 |
49 |
57 |
64 |
70 |
75 |
91 |
38° |
50° |
50° |
38° |
|
|
50160 |
7.5 |
36 |
52 |
63 |
73 |
80 |
89 |
96 |
115 |
44° |
50° |
50° |
37° |
|
|
50200 |
8.3 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
46° |
50° |
50° |
32° |
|
|
40° |
4040 |
3.6 |
9.1 |
12.9 |
15.8 |
18.2 |
20 |
22 |
24 |
29 |
31° |
40° |
40° |
35° |
|
4050 |
4 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
31° |
40° |
40° |
33° |
|
|
4060 |
4.4 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
32° |
40° |
40° |
33° |
|
|
4070 |
5.2 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
32° |
40° |
40° |
29° |
|
|
4080 |
5.2 |
18.2 |
26 |
32 |
36 |
41 |
45 |
48 |
58 |
32° |
40° |
40° |
26° |
|
|
4090 |
5.6 |
21 |
29 |
36 |
41 |
46 |
50 |
54 |
65 |
34° |
40° |
40° |
28° |
|
|
40100 |
6 |
23 |
32 |
39 |
46 |
51 |
56 |
60 |
72 |
35° |
40° |
40° |
28° |
|
|
35° |
3504 |
1.2 |
0.91 |
1.3 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.9 |
20° |
35° |
35° |
40° |
|
3510 |
2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6 |
7.2 |
18° |
35° |
35° |
36° |
|
|
3520 |
2.8 |
4.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
24° |
35° |
35° |
30° |
|
|
3525 |
2.8 |
5.7 |
8.1 |
9.9 |
11.4 |
12.7 |
14 |
15.1 |
18 |
24° |
35° |
35° |
28° |
|
|
3530 |
3.2 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
26° |
35° |
35° |
28° |
|
|
3540 |
3.6 |
9.1 |
12.9 |
15.8 |
18.2 |
20 |
22 |
24 |
29 |
28° |
35° |
35° |
26° |
|
|
3550 |
4 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
31° |
35° |
35° |
23° |
|
|
3560 |
4.4 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
29° |
35° |
35° |
27° |
|
|
3580 |
5.2 |
18.2 |
26 |
34 |
36 |
41 |
45 |
48 |
58 |
26° |
35° |
35° |
24° |
|
|
35100 |
6 |
23 |
32 |
39 |
46 |
51 |
56 |
60 |
72 |
26° |
35° |
35° |
19° |
|
|
35160 |
7.5 |
36 |
52 |
63 |
73 |
82 |
89 |
96 |
115 |
26° |
35° |
35° |
23° |
|
|
35200 |
8.3 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
25° |
35° |
35° |
22° |
|
|
25° |
2540 |
3.6 |
9.1 |
12.9 |
15.8 |
18.2 |
20 |
22 |
24 |
29 |
15° |
25° |
25° |
25° |
|
15° |
1510 |
2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6 |
7.2 |
15° |
15° |
22° |
|
|
1520 |
2.8 |
4.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
15° |
15° |
19° |
||
|
1530 |
3.2 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
6° |
15° |
15° |
25° |
|
|
1540 |
3.6 |
9.1 |
12.9 |
15.8 |
18.2 |
20 |
22 |
24 |
29 |
8° |
15° |
15° |
18° |
|
|
1550 |
4.4 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
9° |
15° |
15° |
15° |
|
|
1560 |
5.2 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
10° |
15° |
15° |
14° |
|
|
1580 |
6 |
18.2 |
26 |
32 |
36 |
41 |
45 |
48 |
58 |
11° |
15° |
15° |
14° |
|
|
15100 |
7.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60 |
72 |
11° |
15° |
15° |
14° |
|
|
15200 |
8.3 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
12° |
15° |
15° |
14° |
|
Ordering information
|
V |
1/4” |
– |
SS |
5010 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
Connector Size |
|
Material |
Flow code |
General Application:
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
Shanghai XinHou Spray Nozzles has its own unique process in the production of V-shaped flat fan nozzles, we can ensure that V-shaped fan spray nozzles have a sharp edge of the water spray line, and the spray concentration is not scattered. This is also the reason why you choose XinHou spray nozzles.
Regarding Veejet flat fan spray nozzles, any suggestions from you will be highly appreciated. Shanghai Xinhou Spray Nozzles is also pleased to have a more detailed discussion with you about V flat fan nozzles.
Hot Tags: v type deflector narrow angle flat fan spray nozzles, China, manufacturers, suppliers, factory, price
