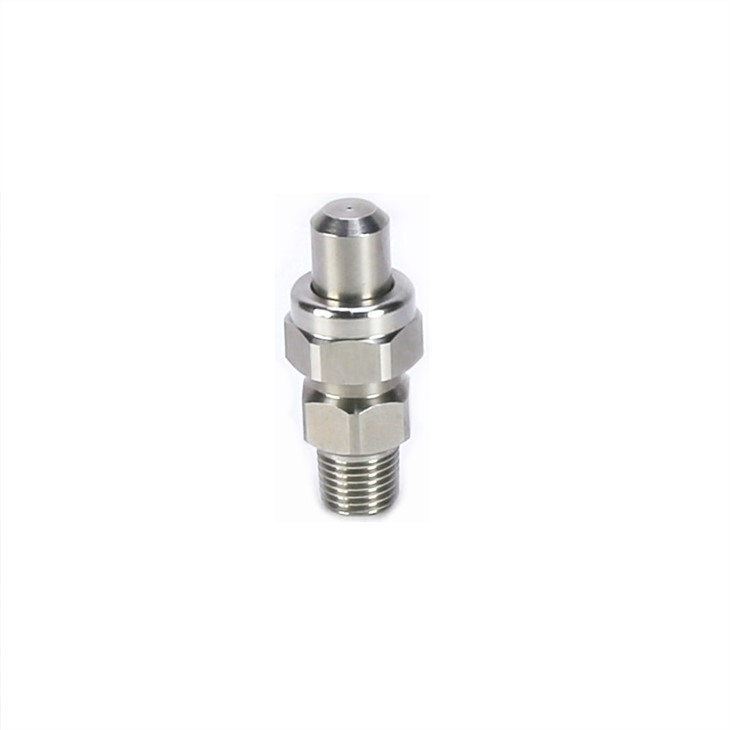

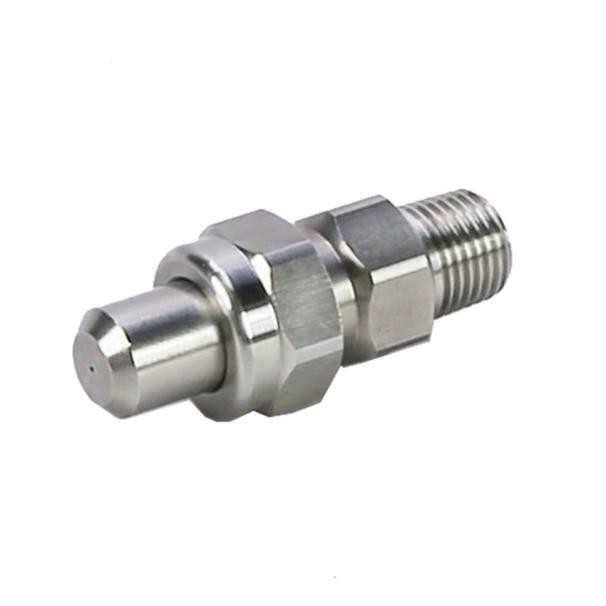

• TX Teejet Hollow Cone Spray Nozzles spray fine spray with hollow circle

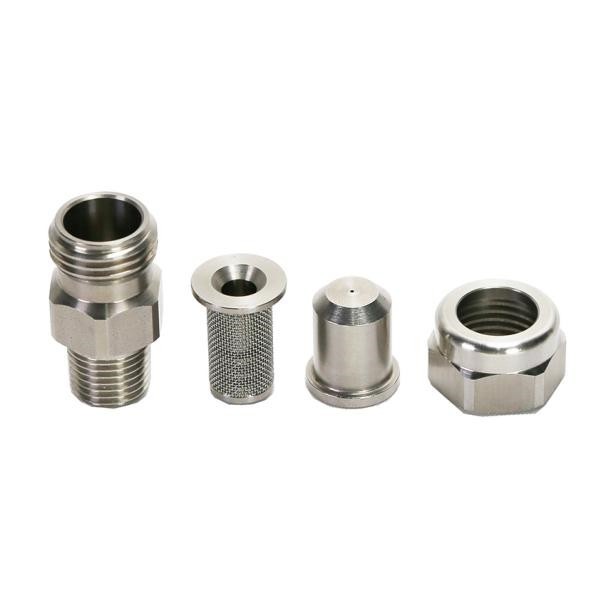

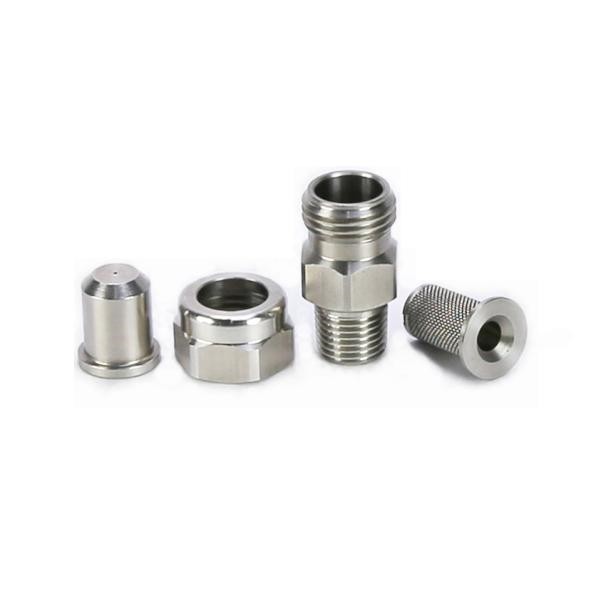

• TX Teejet Hollow Cone Spray Nozzles are combined by body, tip, filter and retainer. Tips can be ordered separately
• Spray angles inclues standard angle and wide angle
• Connections: 1/4” to 3/8” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
TX
Hollow cone tip with standard spray angle
TX series tip can give fine mist spray with even distribution at a low pressure
T-W
Hollow cone tip with wide spray angle
T-W series tip has same features with TX, but can spray wider angle
|
TX Teejet Hollow Cone Spray Nozzles |
TW Teejet Hollow Cone Spray Nozzles |
General Application
1) Cooling
2) Dust suppression
3) Chemical treatment
4) Washing or cleaning
Narrow Angle
|
Style No. |
Orifice Dia. |
Filter Mesh |
Flow Rate ( L/ Hour) |
Spray Angle |
|||||||||
|
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
10 bar |
15 bar |
25 bar |
1.5 bar |
3 bar |
|||
|
TX0.60 |
0.36 |
200 |
– |
– |
– |
2.9 |
3.1 |
3.3 |
3.9 |
4.6 |
5.7 |
– |
– |
|
TX1 |
0.51 |
100 |
– |
3.9 |
4.4 |
4.8 |
5.2 |
5.6 |
6.4 |
7.6 |
9.4 |
– |
54° |
|
TX1.25 |
0.56 |
100 |
– |
4.9 |
5.4 |
6.1 |
6.5 |
7.0 |
8.1 |
9.5 |
11.8 |
– |
59° |
|
TX1.5 |
0.61 |
100 |
– |
5.9 |
6.6 |
7.3 |
7.8 |
8.3 |
9.7 |
11.4 |
14.0 |
– |
63° |
|
TX2 |
0.71 |
100 |
6.6 |
7.9 |
8.9 |
9.8 |
10.6 |
11.4 |
13.3 |
15.8 |
19.8 |
40° |
68° |
|
TX2.5 |
0.79 |
100 |
8.2 |
9.8 |
11.1 |
12.3 |
13.3 |
14.2 |
16.6 |
19.8 |
24.7 |
48° |
70° |
|
TX3 |
0.86 |
100 |
9.9 |
11.8 |
13.3 |
14.7 |
15.9 |
17.0 |
19.9 |
23.8 |
29.7 |
57° |
72° |
|
TX4 |
1.0 |
50 |
13.1 |
15.7 |
17.9 |
19.9 |
21.6 |
23.1 |
27.2 |
32.8 |
41.4 |
61° |
73° |
|
TX5 |
1.1 |
50 |
16.3 |
19.7 |
22.4 |
24.8 |
27 |
28.9 |
34.0 |
41.0 |
51.7 |
63° |
73° |
|
TX6 |
1.2 |
50 |
19.6 |
23.6 |
26.9 |
29.8 |
32.4 |
34.7 |
40.8 |
49.0 |
62.0 |
65° |
74° |
|
TX8 |
1.4 |
50 |
26.0 |
31.5 |
36.2 |
40.2 |
43.1 |
47.2 |
56.0 |
68.0 |
86.8 |
66° |
74° |
|
TX10 |
1.5 |
50 |
32.4 |
39.4 |
45.2 |
50.3 |
53.9 |
59.1 |
70.0 |
85.0 |
108.5 |
68° |
75° |
|
TX12 |
1.7 |
50 |
38.9 |
47.3 |
54.2 |
60.3 |
64.7 |
70.9 |
84.0 |
102.0 |
130.2 |
69° |
76° |
|
TX14 |
1.8 |
50 |
45.2 |
55.2 |
63.7 |
71.2 |
77.9 |
84.1 |
100.2 |
122.7 |
158.0 |
70° |
76° |
|
TX18 |
2.0 |
50 |
58.1 |
71.0 |
81.9 |
91.5 |
100 |
108.1 |
129.0 |
157.8 |
203.2 |
71° |
77° |
|
TX22 |
2.2 |
50 |
71.0 |
86.8 |
100.1 |
111.8 |
122.4 |
132.1 |
157.7 |
192.8 |
248.4 |
71° |
78° |
|
TX26 |
2.4 |
50 |
83.9 |
102.6 |
118.3 |
132.1 |
144.6 |
156.0 |
186.4 |
227.9 |
293.6 |
72° |
78° |
Wide Angle
|
Style No. |
Orifice Dia. |
Filter Mesh |
Flow Rate ( L/ Hour) |
Spray Angle |
|||||||||
|
1 bar |
1.5 bar |
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
1.5 bar |
3 bar |
6 bar |
|||
|
T2W |
0.79 |
100 |
– |
– |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
130° |
140° |
136° |
|
T3W |
0.99 |
100 |
– |
8.4 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
138° |
140° |
137° |
|
T4W |
1.1 |
50 |
– |
11.2 |
12.9 |
15.8 |
18.2 |
20.4 |
22.3 |
24.0 |
140° |
140° |
138° |
|
T5W |
1.3 |
50 |
11.4 |
14.0 |
16.1 |
19.7 |
22.8 |
25.4 |
27.9 |
30.1 |
140° |
140° |
138° |
|
T6W |
1.4 |
50 |
13.7 |
16.7 |
19.3 |
23.7 |
27.3 |
30.6 |
33.6 |
36.2 |
140° |
140° |
138° |
|
T8W |
1.6 |
50 |
18.2 |
22.3 |
25.8 |
31.6 |
36.5 |
40.8 |
44.6 |
48.2 |
140° |
140° |
136° |
|
T10W |
1.8 |
50 |
22.8 |
27.9 |
32.2 |
39.5 |
45.6 |
51.0 |
55.8 |
60.3 |
140° |
140° |
136° |
|
T12W |
2.0 |
50 |
27.3 |
33.5 |
38.6 |
47.4 |
54.7 |
61.0 |
67.0 |
72.3 |
140° |
140° |
136° |
Description
| Model |
TX；T-W |
|
Inlet connection |
1/4’’;3/8” |
|
Spray pattern |
Hollow cone |
|
Spray angle |
140°/138°/137°/136°/130°/78°/77°/76°/75°/74°/73° /72°/71°/70°/69°/68°/66°/65°/63°/61°/59° /57°/54/48°/40° |
|
Application |
Gas cooling; Dedusting; Chemical treatment; Cleaning |
Ordering information
|
TX |
1/4’’ |
SS |
1.25 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
Material |
Flow code |
Hot Tags: tx teejet hollow cone spray nozzles, China, manufacturers, suppliers, factory, price
