Features
Tee jet flat fan spray nozzles can save on nozzle replacement costs. Bodies can be reused, only spray tips are replaced .Its design allows easy tip change out in place ,remove tips by unscrewing the retainer cap .

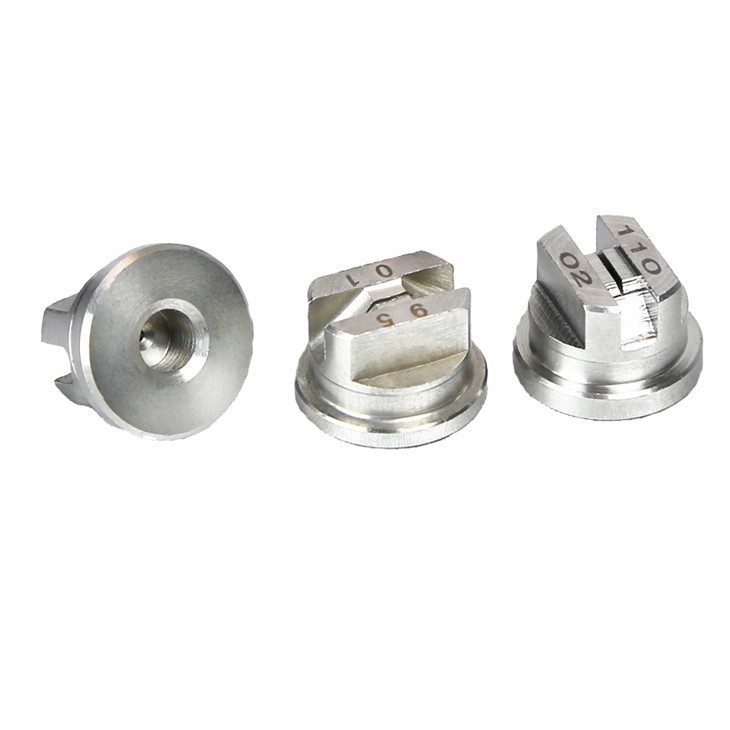

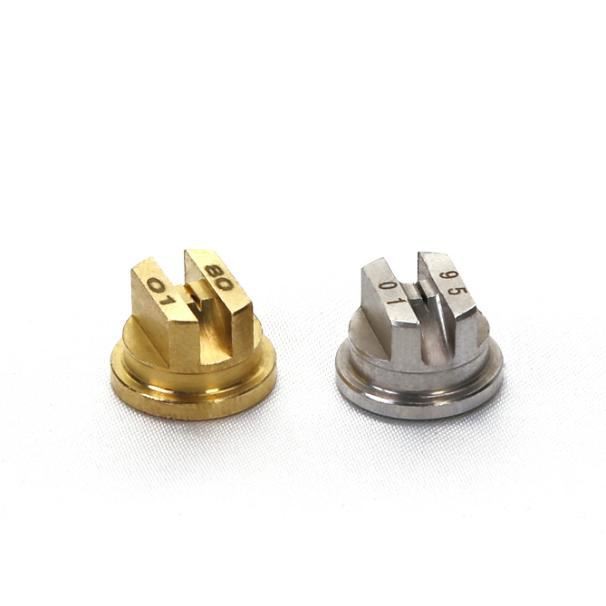

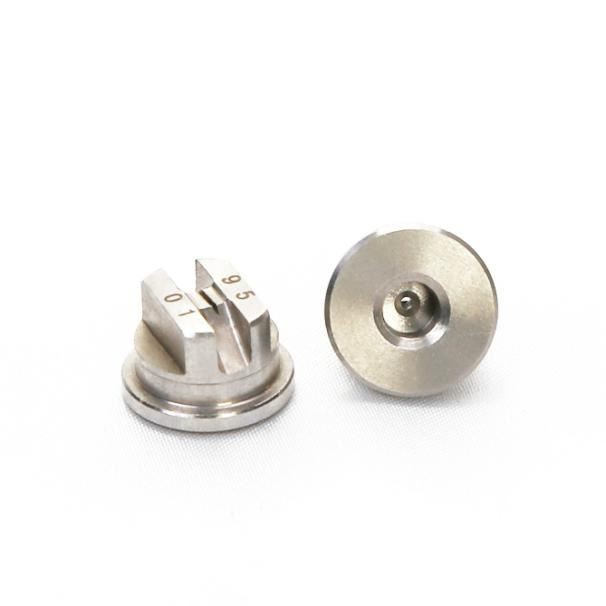

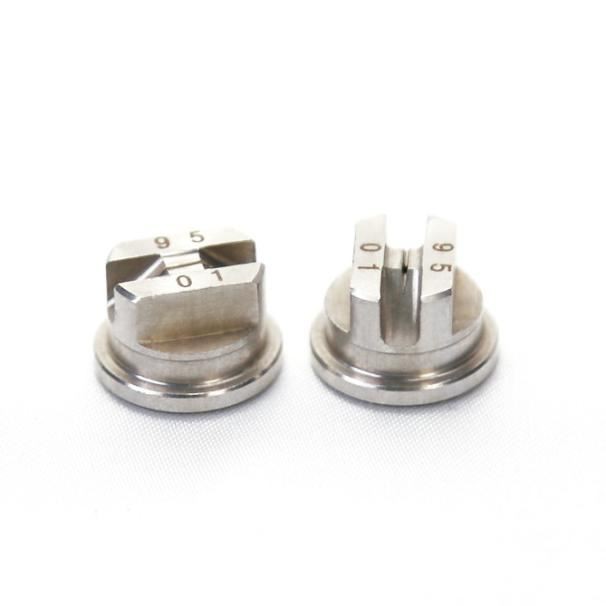

TP TPU Teejet Flat Fan Spray Nozzles
TPU Teejet Flat Fan Spray Nozzles
Parameter
|
Spray Angle |
Flow Code |
Orifice Dia |
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
||||||||||
|
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
3 bar |
|||
|
0° |
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
Spray Angle (3bar) |
||
|
0017 |
0.28 |
|
|
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.1 |
0.12 |
0.17 |
0.23 |
|
|
|
0033 |
0.38 |
|
|
0.11 |
0.13 |
0.15 |
0.17 |
0.18 |
0.2 |
0.24 |
0.34 |
0.44 |
0° |
|
|
0050 |
0.46 |
|
0.11 |
0.16 |
0.2 |
0.23 |
0.25 |
0.28 |
0.3 |
0.36 |
0.51 |
0.67 |
||
|
0067 |
0.53 |
|
0.15 |
0.22 |
0.26 |
0.31 |
0.34 |
0.37 |
0.4 |
0.48 |
0.68 |
0.9 |
||
|
01 |
0.66 |
0.12 |
0.23 |
0.32 |
0.39 |
0.46 |
0.51 |
0.56 |
0.6 |
0.72 |
1.0 |
1.3 |
||
|
015 |
0.79 |
0.19 |
0.34 |
0.48 |
0.59 |
0.68 |
0.76 |
0.84 |
0.90 |
1.1 |
1.5 |
2.0 |
||
|
02 |
0.91 |
0.25 |
0.46 |
0.64 |
0.79 |
0.91 |
1.0 |
1.1 |
1.2 |
1.4 |
2 |
2.7 |
||
|
03 |
1.1 |
0.37 |
0.68 |
0.97 |
1.2 |
1.4 |
1.5 |
1.7 |
1.8 |
2.2 |
3.1 |
4.0 |
||
|
04 |
1.3 |
0.5 |
0.91 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
2.9 |
4.1 |
5.4 |
||
|
05 |
1.4 |
0.62 |
1.1 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3 |
3.6 |
5.1 |
6.7 |
||
|
06 |
1.6 |
0.75 |
1.4 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
4.3 |
6.1 |
8.1 |
||
|
08 |
1.8 |
1.0 |
1.8 |
2.6 |
3.2 |
3.6 |
4.1 |
4.5 |
4.8 |
5.8 |
8.2 |
10.8 |
||
|
10 |
2.0 |
1.2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
7.2 |
10.2 |
13.5 |
||
|
15 |
2.4 |
1.9 |
3.4 |
4.8 |
5.9 |
6.8 |
7.6 |
8.4 |
9.0 |
10.8 |
15.3 |
20 |
||
|
20 |
2.8 |
2.5 |
4.6 |
6.5 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
20 |
27 |
||
|
30 |
3.6 |
3.7 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
40 |
||
|
40 |
4.0 |
5.0 |
9.1 |
12.9 |
15.8 |
18.2 |
20.0 |
22 |
24 |
29 |
41 |
54 |
||
|
50 |
4.4 |
6.2 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
68 |
||
|
60 |
4.8 |
7.5 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
61 |
81 |
||
|
70 |
5.2 |
8.7 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
70 |
94 |
||
|
100 |
6.4 |
12.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60.0 |
72 |
102 |
135 |
||
|
150 |
7.5 |
18.7 |
34 |
48 |
59 |
68 |
76 |
84 |
90.0 |
108 |
153 |
205 |
||
|
200 |
8.7 |
25 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
205 |
270 |
||
Ordering information
|
TP |
1/4’’ |
– |
SS |
11001 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
Connector Size |
|
Material |
Flow code |
General Application:
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
XINHOU is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the shanghai, a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnel who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
If you are interested in any of our TP TPU Teejet Flat Fan Spray Nozzles, or would like to discuss a custom order, please feel free to contact us.
