Features

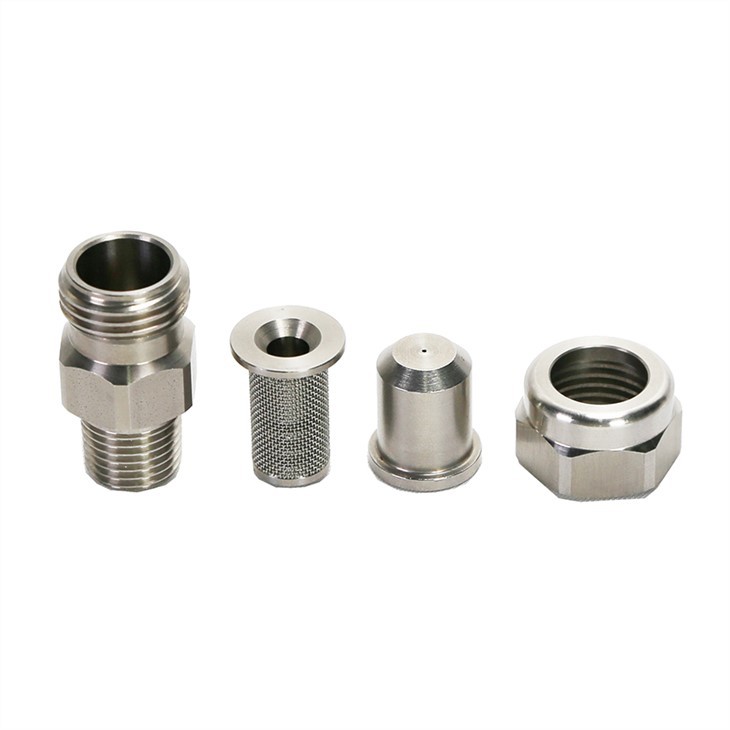

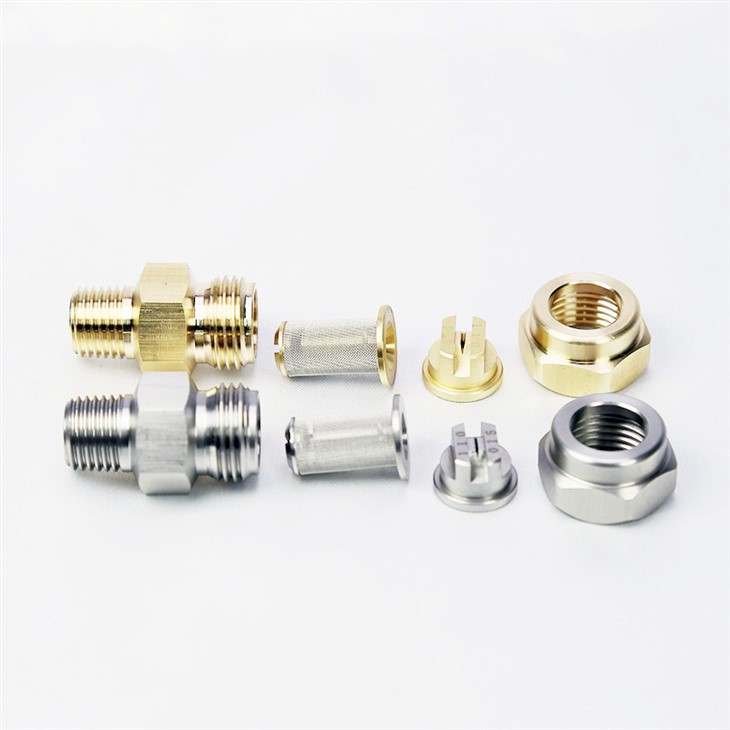

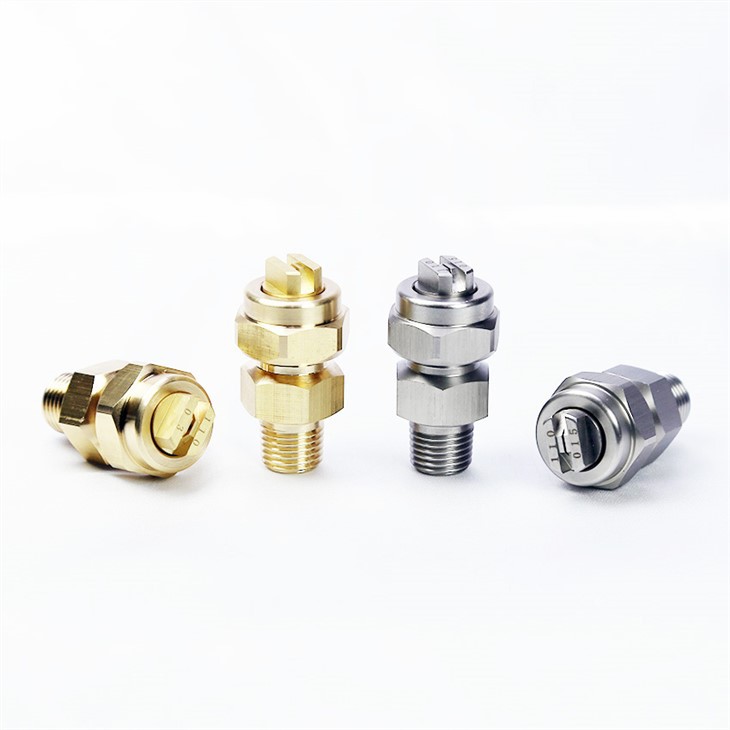

SJV Three-Piece Unijet Flat Fan Spray Nozzle are finish machining. It can provide the accurate flow and spray angle. It is easy to assemble and dismantle.
|

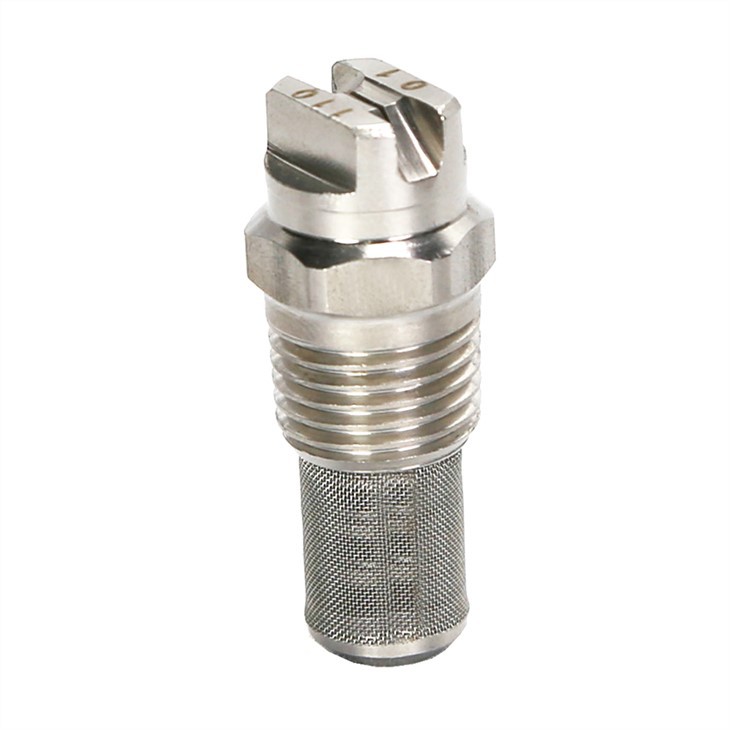

SJV Three-piece Unijet Flat Fan Spray Nozzles |
Three-piece Unijet Flat Fan Spray Nozzles |
Parameter
|
Spray Angle |
Flow Code |
Orifice Dia |
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
||||||||||
|
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
3 bar |
|||
|
0° |
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
Spray Angle (3bar) |
||
|
0017 |
0.28 |
|
|
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.1 |
0.12 |
0.17 |
0.23 |
|
|
|
0033 |
0.38 |
|
|
0.11 |
0.13 |
0.15 |
0.17 |
0.18 |
0.2 |
0.24 |
0.34 |
0.44 |
0° |
|
|
0050 |
0.46 |
|
0.11 |
0.16 |
0.2 |
0.23 |
0.25 |
0.28 |
0.3 |
0.36 |
0.51 |
0.67 |
||
|
0067 |
0.53 |
|
0.15 |
0.22 |
0.26 |
0.31 |
0.34 |
0.37 |
0.4 |
0.48 |
0.68 |
0.9 |
||
|
01 |
0.66 |
0.12 |
0.23 |
0.32 |
0.39 |
0.46 |
0.51 |
0.56 |
0.6 |
0.72 |
1.0 |
1.3 |
||
|
015 |
0.79 |
0.19 |
0.34 |
0.48 |
0.59 |
0.68 |
0.76 |
0.84 |
0.90 |
1.1 |
1.5 |
2.0 |
||
|
02 |
0.91 |
0.25 |
0.46 |
0.64 |
0.79 |
0.91 |
1.0 |
1.1 |
1.2 |
1.4 |
2 |
2.7 |
||
|
03 |
1.1 |
0.37 |
0.68 |
0.97 |
1.2 |
1.4 |
1.5 |
1.7 |
1.8 |
2.2 |
3.1 |
4.0 |
||
|
04 |
1.3 |
0.5 |
0.91 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
2.9 |
4.1 |
5.4 |
||
|
05 |
1.4 |
0.62 |
1.1 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3 |
3.6 |
5.1 |
6.7 |
||
|
06 |
1.6 |
0.75 |
1.4 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
4.3 |
6.1 |
8.1 |
||
|
08 |
1.8 |
1.0 |
1.8 |
2.6 |
3.2 |
3.6 |
4.1 |
4.5 |
4.8 |
5.8 |
8.2 |
10.8 |
||
|
10 |
2.0 |
1.2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
7.2 |
10.2 |
13.5 |
||
|
15 |
2.4 |
1.9 |
3.4 |
4.8 |
5.9 |
6.8 |
7.6 |
8.4 |
9.0 |
10.8 |
15.3 |
20 |
||
|
20 |
2.8 |
2.5 |
4.6 |
6.5 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
20 |
27 |
||
|
30 |
3.6 |
3.7 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
40 |
||
|
40 |
4.0 |
5.0 |
9.1 |
12.9 |
15.8 |
18.2 |
20.0 |
22 |
24 |
29 |
41 |
54 |
||
|
50 |
4.4 |
6.2 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
68 |
||
|
60 |
4.8 |
7.5 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
61 |
81 |
||
|
70 |
5.2 |
8.7 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
70 |
94 |
||
|
100 |
6.4 |
12.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60.0 |
72 |
102 |
135 |
||
|
150 |
7.5 |
18.7 |
34 |
48 |
59 |
68 |
76 |
84 |
90.0 |
108 |
153 |
205 |
||
|
200 |
8.7 |
25 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
205 |
270 |
||
Ordering information
|
SJV |
1/4’’ |
– |
316SS |
6510 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
connector Size |
|
Material |
Flow code |
General Application
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
Shanghai Xinhou focuses on improving productivity with technological innovation. The production line has a high proportion of automation, which lower defect rate, and improve utilization rate of raw materials, thus reduces production costs. The company has advanced automatic processing equipment, as well as some equipment especially developed according to product characteristics, which enable us to manufacture high quality products. In order to improve the stability and reliability of the products, the company introduces foreign advanced testing equipment and technology to test the performance of the products.
Since its foundation ,the company keeps living up to the belief of : ‘’honest selling ,best quality ,people-orientation and benefits to customers. ‘’ If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
