Features

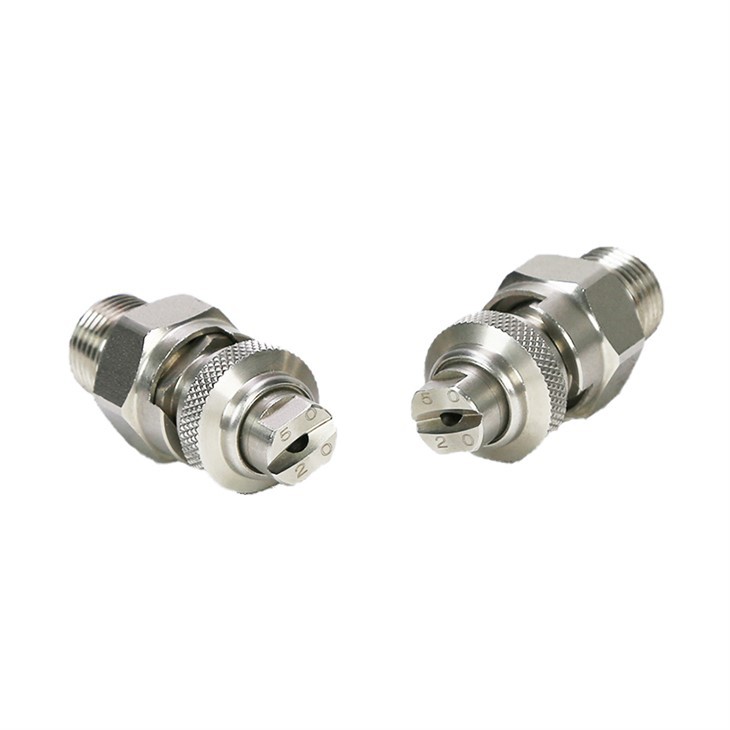

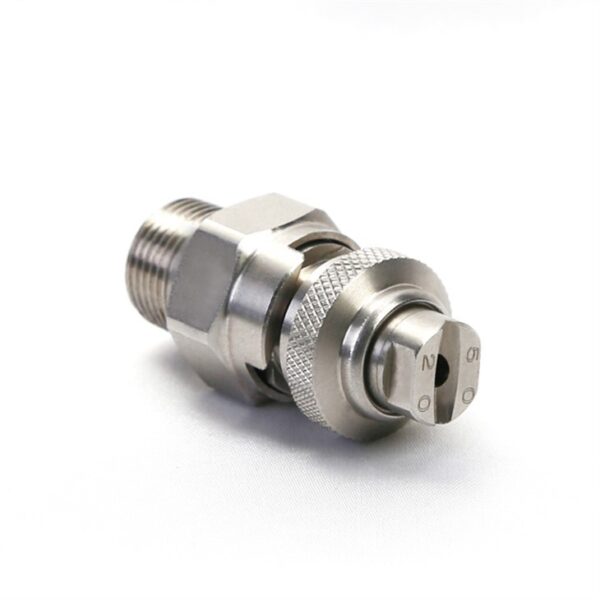

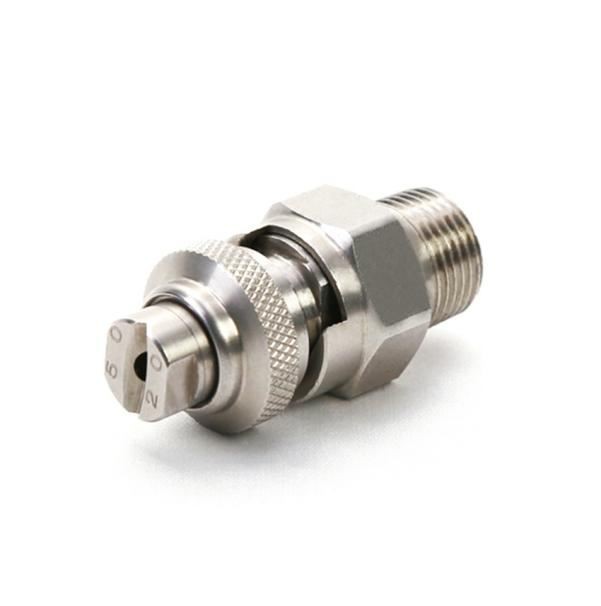

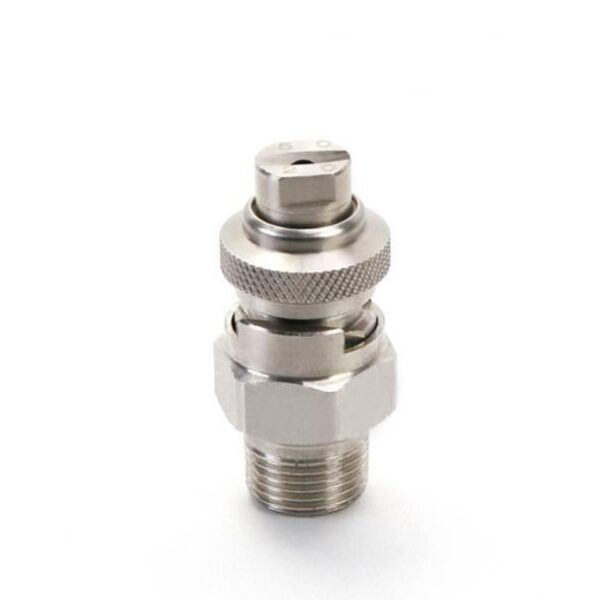

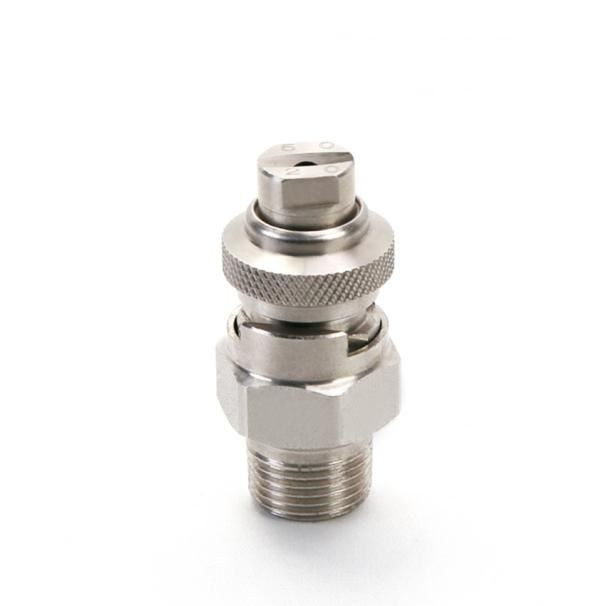

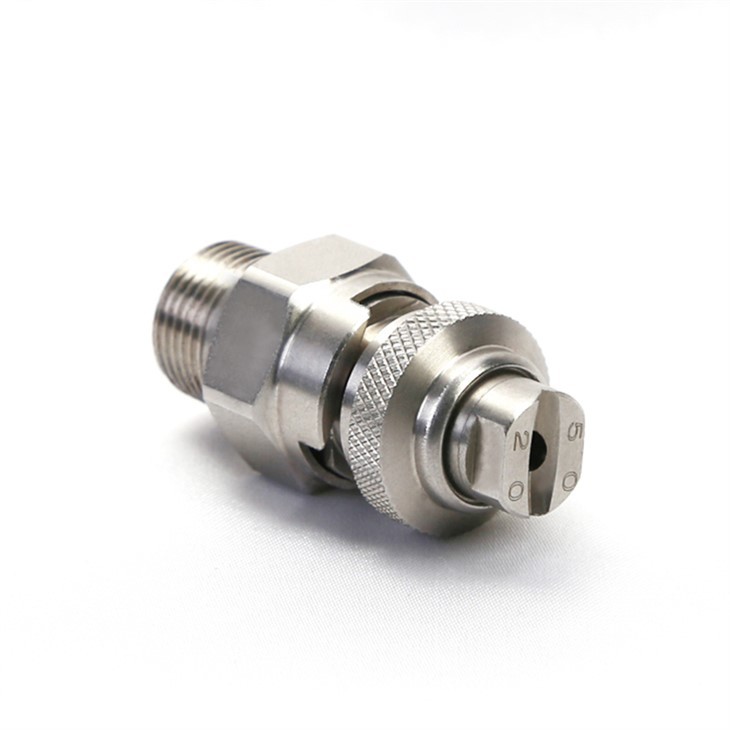

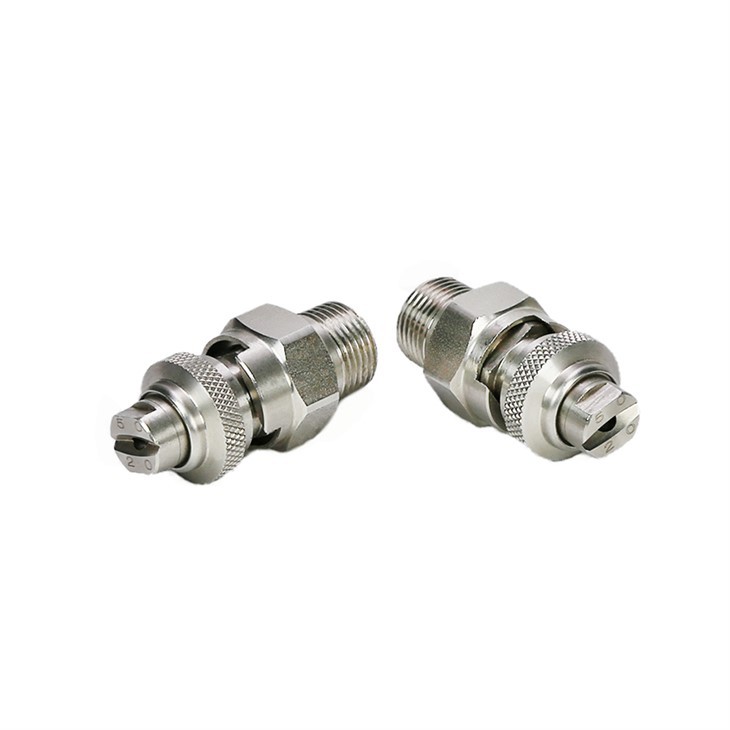

For quick connect nozzles, its body and spray tip can be quickly detached without any tools, which can reduce much maintenance time.
• Stainless Steel Quick VeeJet Flat Fan Spray Nozzles are easy to assemble and dismantle

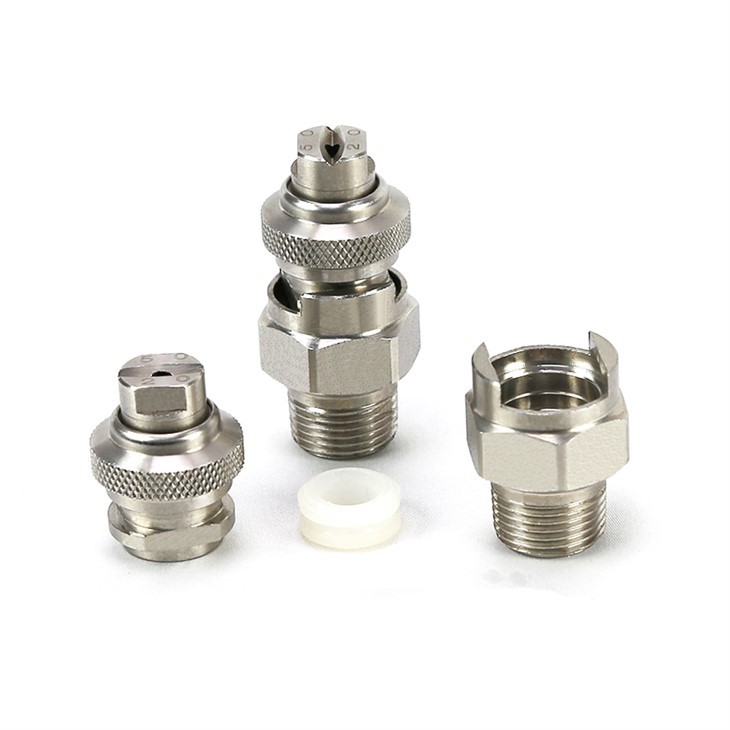

• Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
• A wide selection of flow rates, spray angles with standard 303,304 0r 316SS materials and connections.
• Stainless Steel Quick VeeJet Flat Fan Spray Nozzles produce a linear spray.
• Spray angle from 0°to 110°
• Thread size range from 1/8’’ to 2’’ with BSPT or NPT thread type
• Stable spray angle with uniform, parabolic distribution of liquid.
• Spray pipes equipped with these nozzles show an extremely uniform total distribution of liquid.
|
Stainless Steel Quick Vee Jet Flat Fan Spray Nozzles |
Stainless Steel Quick Flat Fan Spray Nozzles |
Parameter
|
Spray Angle |
Flow Code |
Orifice Dia |
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
||||||||||
|
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
3 bar |
|||
|
0° |
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
Spray Angle (3bar) |
||
|
0017 |
0.28 |
|
|
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.1 |
0.12 |
0.17 |
0.23 |
|
|
|
0033 |
0.38 |
|
|
0.11 |
0.13 |
0.15 |
0.17 |
0.18 |
0.2 |
0.24 |
0.34 |
0.44 |
0° |
|
|
0050 |
0.46 |
|
0.11 |
0.16 |
0.2 |
0.23 |
0.25 |
0.28 |
0.3 |
0.36 |
0.51 |
0.67 |
||
|
0067 |
0.53 |
|
0.15 |
0.22 |
0.26 |
0.31 |
0.34 |
0.37 |
0.4 |
0.48 |
0.68 |
0.9 |
||
|
01 |
0.66 |
0.12 |
0.23 |
0.32 |
0.39 |
0.46 |
0.51 |
0.56 |
0.6 |
0.72 |
1.0 |
1.3 |
||
|
015 |
0.79 |
0.19 |
0.34 |
0.48 |
0.59 |
0.68 |
0.76 |
0.84 |
0.90 |
1.1 |
1.5 |
2.0 |
||
|
02 |
0.91 |
0.25 |
0.46 |
0.64 |
0.79 |
0.91 |
1.0 |
1.1 |
1.2 |
1.4 |
2 |
2.7 |
||
|
03 |
1.1 |
0.37 |
0.68 |
0.97 |
1.2 |
1.4 |
1.5 |
1.7 |
1.8 |
2.2 |
3.1 |
4.0 |
||
|
04 |
1.3 |
0.5 |
0.91 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
2.9 |
4.1 |
5.4 |
||
|
05 |
1.4 |
0.62 |
1.1 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3 |
3.6 |
5.1 |
6.7 |
||
|
06 |
1.6 |
0.75 |
1.4 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
4.3 |
6.1 |
8.1 |
||
|
08 |
1.8 |
1.0 |
1.8 |
2.6 |
3.2 |
3.6 |
4.1 |
4.5 |
4.8 |
5.8 |
8.2 |
10.8 |
||
|
10 |
2.0 |
1.2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
7.2 |
10.2 |
13.5 |
||
|
15 |
2.4 |
1.9 |
3.4 |
4.8 |
5.9 |
6.8 |
7.6 |
8.4 |
9.0 |
10.8 |
15.3 |
20 |
||
|
20 |
2.8 |
2.5 |
4.6 |
6.5 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
20 |
27 |
||
|
30 |
3.6 |
3.7 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
40 |
||
|
40 |
4.0 |
5.0 |
9.1 |
12.9 |
15.8 |
18.2 |
20.0 |
22 |
24 |
29 |
41 |
54 |
||
|
50 |
4.4 |
6.2 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
68 |
||
|
60 |
4.8 |
7.5 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
61 |
81 |
||
|
70 |
5.2 |
8.7 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
70 |
94 |
||
|
100 |
6.4 |
12.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60.0 |
72 |
102 |
135 |
||
|
150 |
7.5 |
18.7 |
34 |
48 |
59 |
68 |
76 |
84 |
90.0 |
108 |
153 |
205 |
||
|
200 |
8.7 |
25 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
205 |
270 |
||
General Application:
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
Cleaning equipment parts
Dust Control
Established in 2004, XINHOU is a professional manufacturer and exporter that is concerned with the design, development and production of Stainless Steel Quick Vee Jet Flat Fan Spray Nozzles. We are located in shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Quick connection nozzles can be conveniently separated because of its structure. If you have any doubts about the structure or composition of the quick connection nozzle, please contact Shanghai Xinhou spray nozzles, we will explain it in detail and provide you with relevant information.
