Features
• Spray pattern is square area
• Unique vane design inside square pattern full cone nozzles ensures uniform spray distribution
• Spray angles: 45⁰ to 120⁰
• Connections: 1/8″ to 2″ (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)

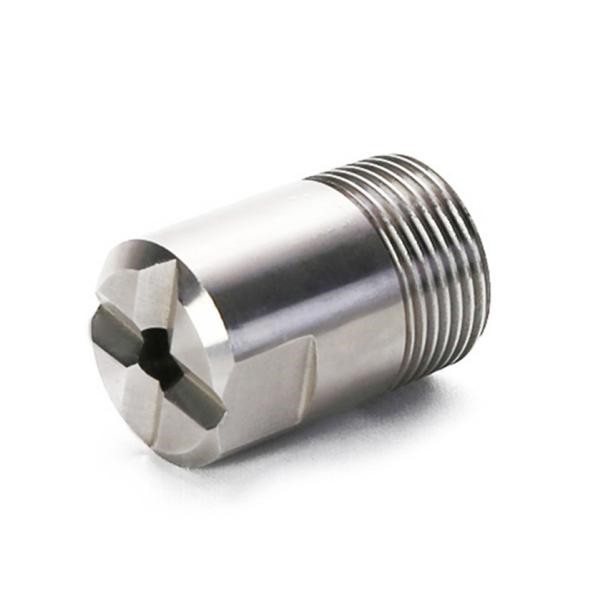

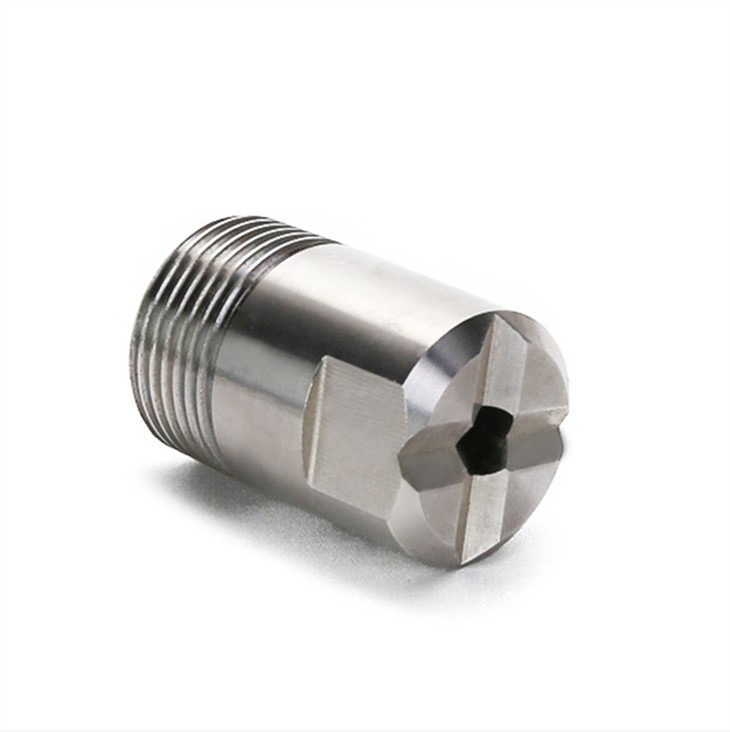

Square Pattern Water Spray Full Cone Nozzles
Square Water Spray Full Cone Nozzles
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
Description
|
Model |
HH-SQ;GG-SQ;G-SQ |
|
Spray pattern |
Full cone |
|
Inner connection |
1/8”; 1/4”; 3/8”; 1/2”; 3/4”; 1”; 1 1/4”; 1 1/2”; 2”; 2 1/2” |
|
Spray angle |
76°/75°/74°/73°/71°/70°/68°/67°/64°/61°/60°/57°/47° |
|
Application |
Washing and cleaning; Air and gas washing; Scrubbing;Fire-extinguish;Fireproof |
Parameter
|
Thread Size |
Flow Code |
Orifice Dia (mm) |
Max free Passage Orifice Dia(mm) |
Flow Rate ( L/min) |
Spray angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.3 bar |
0.5 bar |
1 bar |
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
10bar |
6bar |
||||
|
1/8” |
3.6SQ |
1.6 |
1.3 |
0.93 |
1.2 |
1.6 |
2.2 |
2.7 |
3.1 |
3.4 |
3.7 |
4 |
4.7 |
47° |
|
4.8SQ |
1.9 |
1.3 |
1.2 |
1.6 |
2.2 |
3 |
3.6 |
4.1 |
4.5 |
4.9 |
5.3 |
6.2 |
57° |
|
|
6SQ |
2.4 |
1.3 |
1.5 |
2 |
2.7 |
3.7 |
4.5 |
5.1 |
5.6 |
6.1 |
6.6 |
7.8 |
60° |
|
|
1/4” |
10SQ |
2.8 |
1.6 |
2.6 |
3.3 |
4.5 |
6.2 |
7.4 |
8.5 |
9.4 |
10.2 |
11 |
13 |
61° |
|
12SQ |
3.2 |
1.6 |
3.1 |
3.9 |
5.4 |
7.4 |
8.9 |
10.2 |
11.3 |
12.3 |
13.2 |
15.5 |
68° |
|
|
14.5SQ |
3.9 |
1.6 |
3.7 |
4.7 |
6.5 |
9 |
10.8 |
12.3 |
13.7 |
14.8 |
15.9 |
18.8 |
75° |
|
|
3/8” |
18SQ |
4 |
2.4 |
4.6 |
5.9 |
8.1 |
11.1 |
13.4 |
15.3 |
17 |
18.4 |
19.8 |
23 |
68° |
|
1/2” |
29SQ |
5.6 |
3.2 |
7.5 |
9.5 |
13 |
17.9 |
22 |
25 |
27 |
30 |
32 |
38 |
68° |
|
36SQ |
6.4 |
3.2 |
9.3 |
11.8 |
16.2 |
22 |
27 |
31 |
34 |
37 |
40 |
47 |
75° |
|
|
3/4” |
50SQ |
6.7 |
4.4 |
12.9 |
16.3 |
22 |
31 |
37 |
42 |
47 |
51 |
55 |
48 |
68° |
|
1” |
106SQ |
9.9 |
5.6 |
27 |
35 |
48 |
65 |
79 |
90 |
100 |
109 |
117 |
49 |
73° |
|
1 1/4” |
177SQ |
12.7 |
6.4 |
46 |
58 |
79 |
109 |
132 |
150 |
167 |
181 |
195 |
50 |
73° |
|
1 1/2” |
230SQ |
14.3 |
8.7 |
59 |
75 |
103 |
142 |
171 |
195 |
220 |
235 |
255 |
51 |
70° |
|
2” |
290SQ |
15.5 |
11.1 |
75 |
95 |
130 |
179 |
215 |
250 |
275 |
300 |
320 |
52 |
64° |
|
360SQ |
17.4 |
11.1 |
93 |
118 |
162 |
225 |
270 |
305 |
340 |
370 |
395 |
53 |
67° |
|
|
480SQ |
21 |
11.1 |
124 |
157 |
215 |
300 |
360 |
410 |
455 |
495 |
530 |
54 |
74° |
|
|
2 1/2” |
490SQ |
19.8 |
14.3 |
126 |
160 |
220 |
305 |
365 |
420 |
465 |
510 |
540 |
55 |
61° |
|
590SQ |
22.2 |
14.3 |
152 |
193 |
265 |
365 |
440 |
510 |
560 |
610 |
650 |
56 |
71° |
|
|
950SQ |
28.6 |
17.5 |
245 |
310 |
430 |
590 |
710 |
810 |
900 |
980 |
1050 |
57 |
76° |
|
Ordering information
|
HH |
1/4” |
SS |
3.6SQ |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
