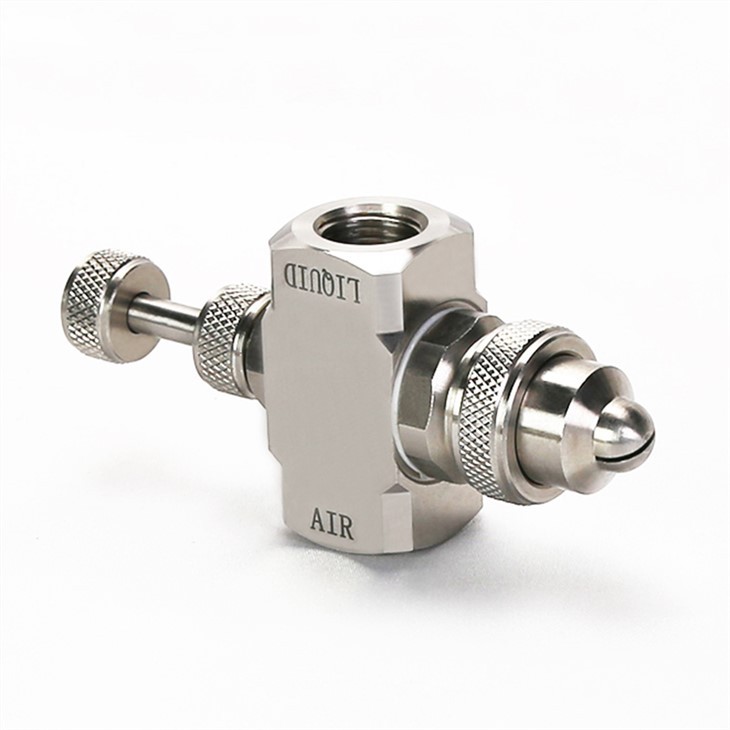

Siphon-Fed Flat Fan Air Atomizing Nozzles

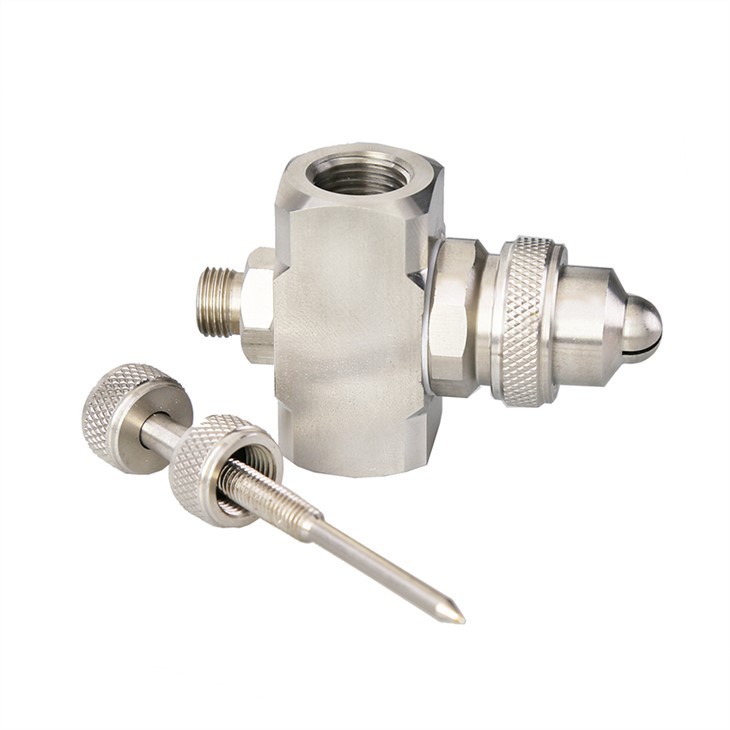

Siphon-Fed Flat Fan Air Atomizing Nozzles - Image 2

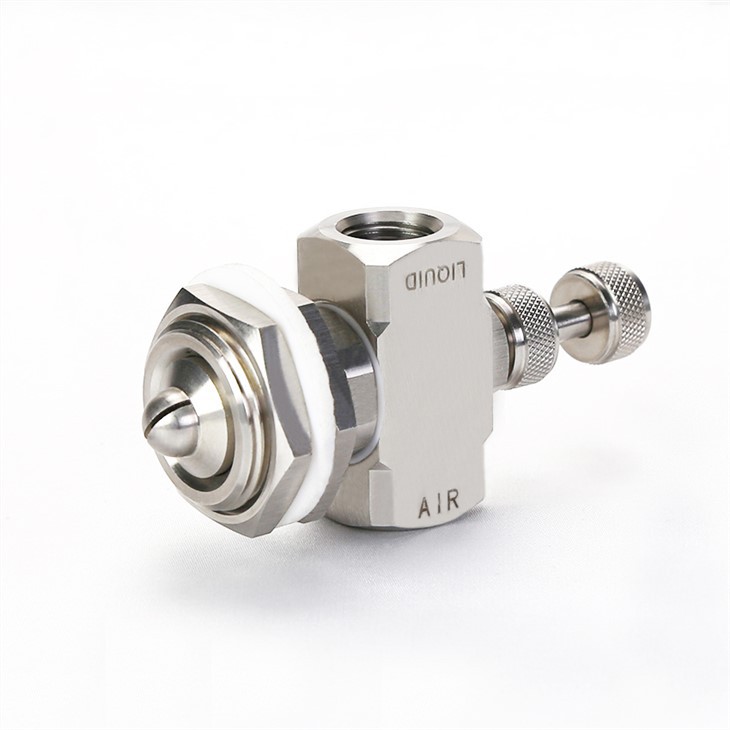

Siphon-Fed Flat Fan Air Atomizing Nozzles - Image 3

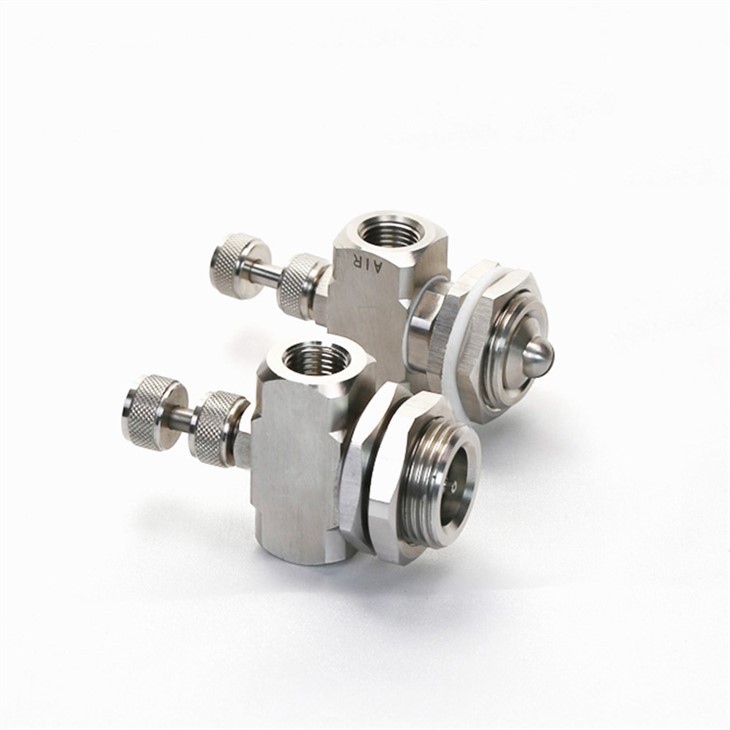

Siphon-Fed Flat Fan Air Atomizing Nozzles - Image 4
Siphon-Fed Flat Fan Air Atomizing Nozzles - Image 5

Siphon-Fed Flat Fan Air Atomizing Nozzles

Product Description

Siphon-Fed Flat Fan Air Atomizing Nozzles are twin fluid nozzles. Siphon-Fed Flat Fan Air Atomizing Nozzles produce an extremely fine atomized spray of fluid with the aid of compressed air. Air pressure is usually 2 -3 bar. Liquid pressure may or may not necessary. Adjustable flow rate allows different choices of capacities. Adjustable Siphon-Fed Flat Fan Air Atomizing Nozzles provide independent control of liquid, atomizing air and fan air pressure for fine tuning of flow rate, drop size, spray distribution and coverage.


Prices are frequently changed. Please send us your inquiry for the best possible price for this product.

Send Inquiry
Please enable JavaScript in your browser to complete this form.
For what purpose you want to use this Product?
How many pieces [Quantity] of this product you want to purchase?

Features

Features

• Siphon-Fed Flat Fan Air Atomizing Nozzles are twin fluid nozzles.

• Siphon-Fed Flat Fan Air Atomizing Nozzles produce an extremely fine atomized spray of fluid with the aid of compressed air.

• Air pressure is usually 2 -3 bar. Liquid pressure may or may not necessary.

• Adjustable flow rate allows different choices of capacities.

• Adjustable Siphon-Fed Flat Fan Air Atomizing Nozzles provide independent control of liquid, atomizing air and fan air pressure for fine tuning of flow rate, drop size, spray distribution and coverage.

Siphon-Fed Flat Fan Air Atomizing Nozzles

Siphon-Feed Air Atomizing Nozzles


General Application

1) Coating, cooling, humidifying

2) Gas cooling

3) Lubricating, moistening

4) Misting, fogging

5) Dust suppression

Description

Model

JN

Type

Adjustable

Spray pattern

Flat Fan

Working way

Siphon-fed

Mix

Internal


Parameter

Spray set-up No.

Liquid cap & Air cap No.

Atomizing air

Liquid cpacity(L/h)

Spray size at 20cm syphon height

Air pressure
(bar)

Air capacity
(L/min)

Gravity head

Syphon height

45(cm)

30(cm)

15(cm)

10（cm)

20(cm)

30(cm)

60(cm)

90(cm)

Air bar

D (m)

SUJF1

Liquid cacp J2850
Air cap J73420

–

–

–

–

–

–

–

–

–

–

–

–

0.7

28

1.3

1.2

1.1

1.0

0.95

0.83

0.64

0.49

0.7

2.1

1.5

43

1.2

1.1

1

0.90

0.86

0.78

0.66

0.54

1.5

2.1

2.0

50

0.82

0.7

0.68

0.57

0.5

–

–

–

2.0

1.8

SUJF2C

Liquid cap J35100
Air cap J20432

1.5

56

3.7

3.5

3.3

2.9

2.8

2.5

2.3

2.1

1.5

2.7

2.0

65

3.4

3.3

3.1

2.8

2.7

2.6

2.4

2.2

2.0

2.7

3.0

87

2.8

2.7

2.5

2.4

2.2

2.1

1.9

1.7

3.0

3.0

4.0

110

1.9

1.8

1.6

1.5

1.3

1.2

–

–

4.0

2.7

SUJF3B

Liquid cap J
Air cap J22435

1.5

68

5.1

4.8

4.5

3.8

3.7

3.5

3.0

2.4

1.5

3.4

2

78

4.9

4.7

4.4

3.6

3.4

3.2

2.9

2.3

2.0

3.4

3

103

3.4

3.2

3

2.2

2.0

1.7

–

–

3.0

3.0

3.5

117

2.2

2.0

1.7

–

–

–

–

–

–

–

SUJF4B

Liquid cap J40100
Air cap J22440

1.5

68

7.6

7.2

6.6

5.7

5.4

5.1

4.6

3.7

1.5

3.4

2.0

73

7.6

7.3

6.8

5.9

5.7

5.5

5.0

4.2

2.0

3.4

3

96

6.4

6.1

5.7

5.0

4.51

4.1

3.3

–

3.0

3.4

3.5

110

4.2

3.7

3.2

2.6

–

–

–

–

–

–

Ordering information

JN

1/4’’

SS

SUJF1

SS

↓

↓

↓

↓

↓

Nozzle Type

Thread Size

Air cap material code

Spraying devoice No.

Liquid cap material code


Application pictures

Dust suppression

Hot Tags: siphon-fed flat fan air atomizing nozzles, China, manufacturers, suppliers, factory, price
