Features
Features
• Quick Release Hollow Cone Quick Dismantling Nozzle systems allow you to mix and match bodies and tips to get the exact performance you need.
• Choose polypropylene bodies that easily snap-on the pipe header using a clamp or screw into the pipe header. Both body styles can be installed by hand in seconds without tools. Then, choose your tip style and install, align and position it easily by hand.
|

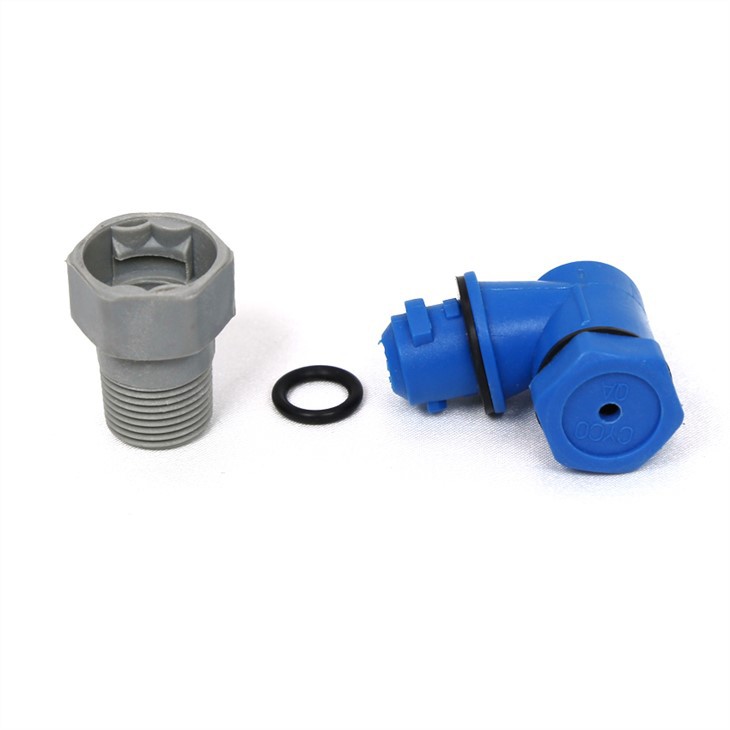

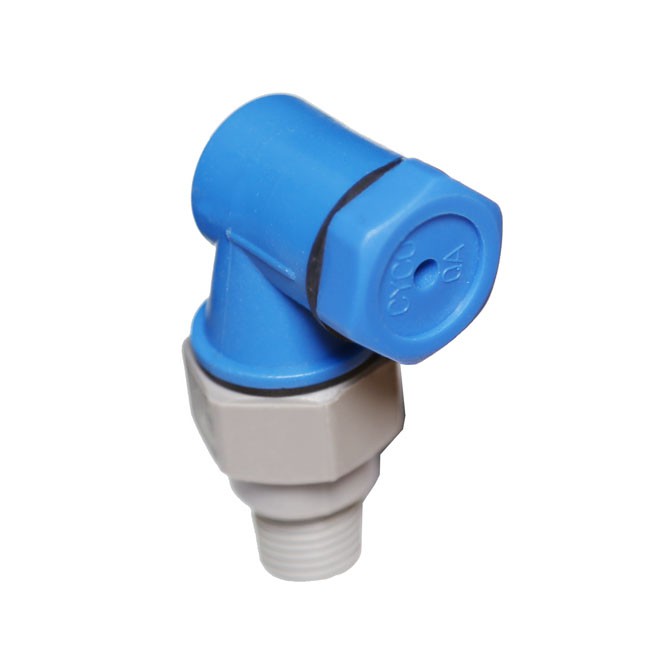

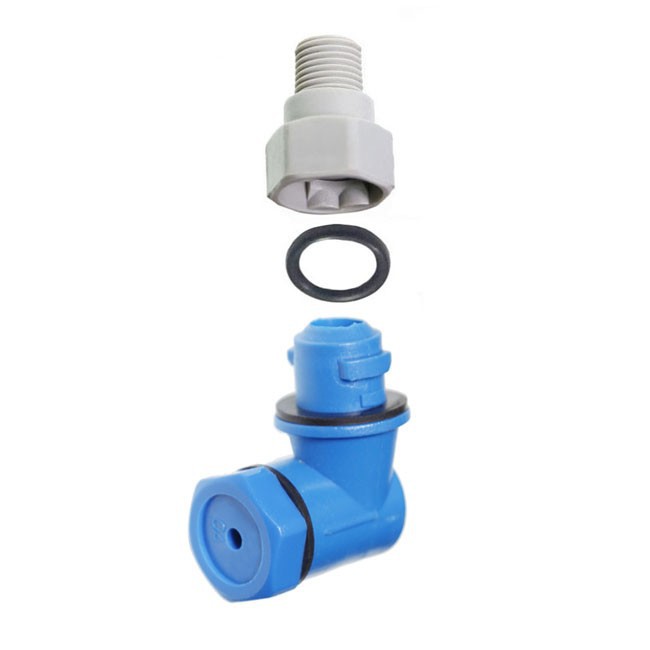

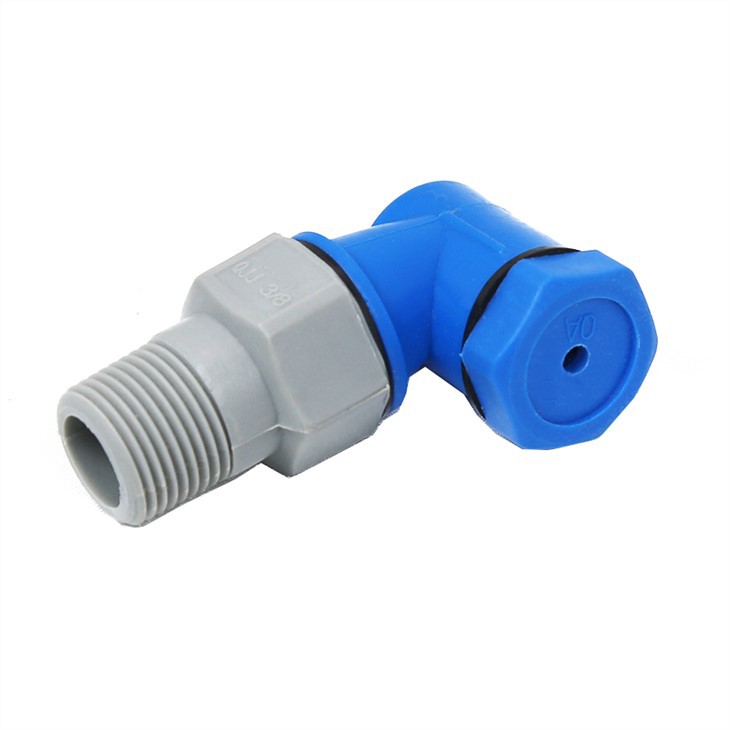

Quick Release Hollow Cone Quick Dismantling Nozzle |
Hollow Cone Quick Dismantling Nozzle |
General Application
1) Industrial plating
2) Etching machine
3) Development
4) PCB washing or cleaning
5) Cooling
6) Metal finishing
7) Coating
Parameter
|
Hollow Cone |
||||||||||||||
|
Style No. |
Flow rate ( l /m ) |
Spray angle |
||||||||||||
|
0.5bar |
1b ar |
1.5bar |
2bar |
3bar |
4bar |
5bar |
6bar |
7bar |
0.5bar |
1.5bar |
6bar |
|||
|
QA3 |
0.97 |
1.4 |
1.7 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
55° |
79° |
80° |
||
|
QA5 |
1.6 |
2.3 |
2.8 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
70° |
75° |
79° |
||
|
QA8 |
2.6 |
3.6 |
4.5 |
5.2 |
6.3 |
7.3 |
8.2 |
8.9 |
9.6 |
65° |
72° |
74° |
||
| Hollow cone pattern |
QA10 |
3.2 |
4.6 |
5.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
70° |
76° |
75° |
|
|
Nozzle body No. |
Thread size |
||
|
QJJ 1/8” |
1/8” |
||
|
QJJ 1/4” |
1/4” |
||
|
QJJ 3/8” |
3/8” |
||
|
body |
QJJB 1/4” |
1/4” (Hollow cone) |
|
Ordering information
|
QJJ |
1/4” |
QA3 |
PP |
|
↓ |
↓ |
↓ |
↓ |
|
Body No. |
Thread size |
Spray tip no. |
Material |
