Features
Features

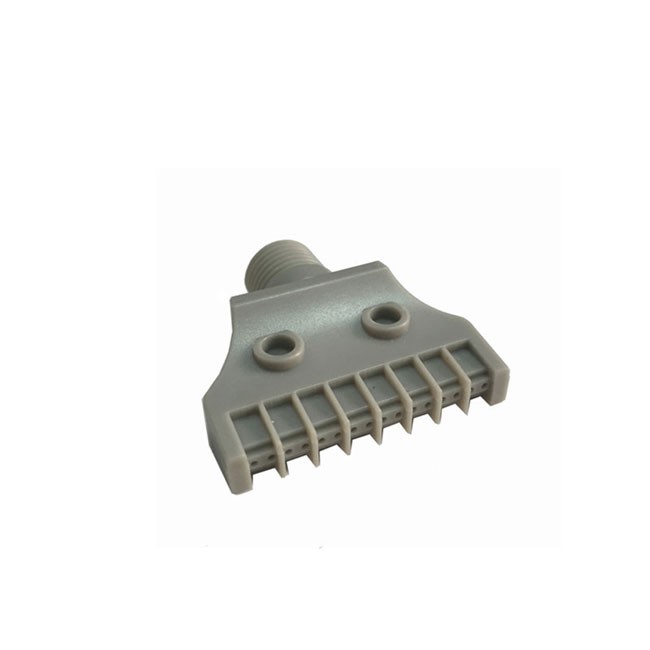

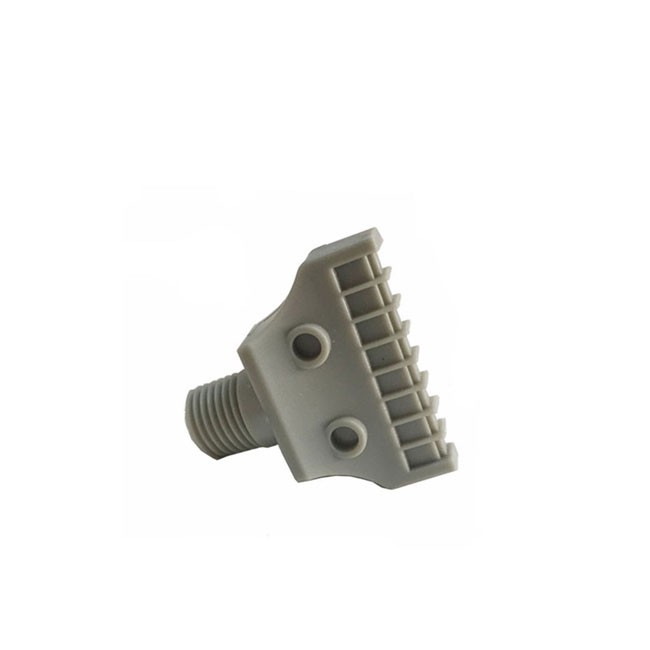

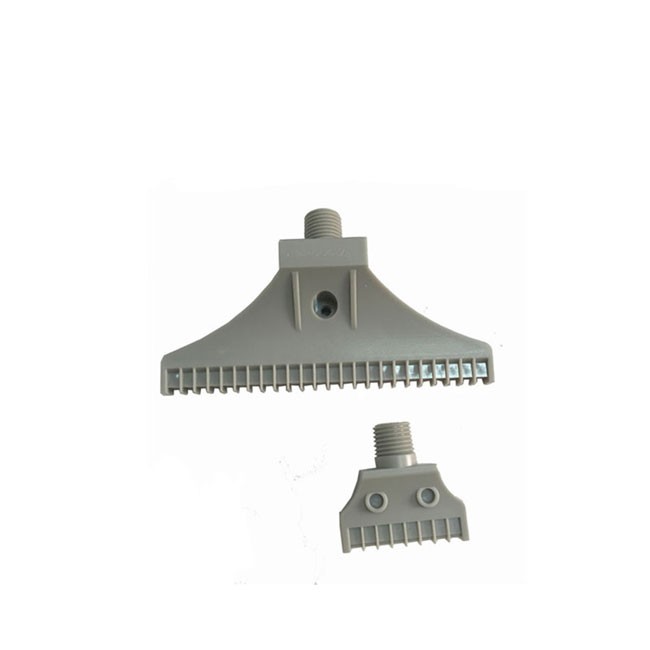

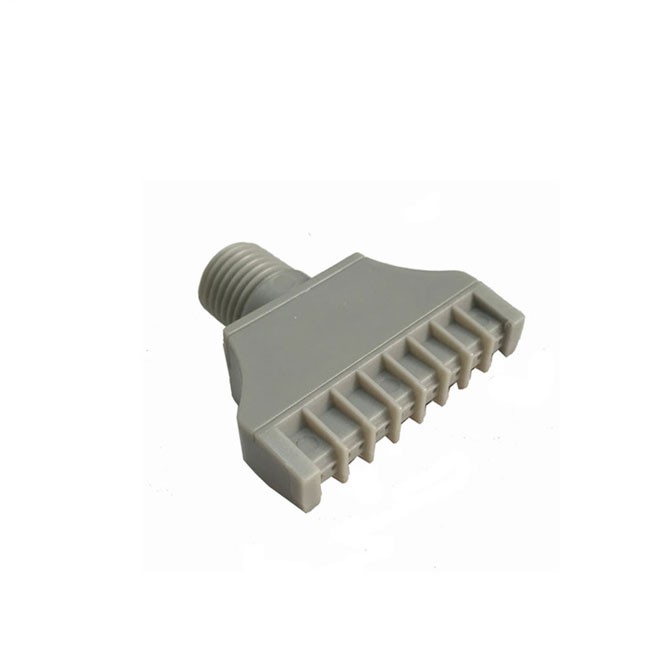

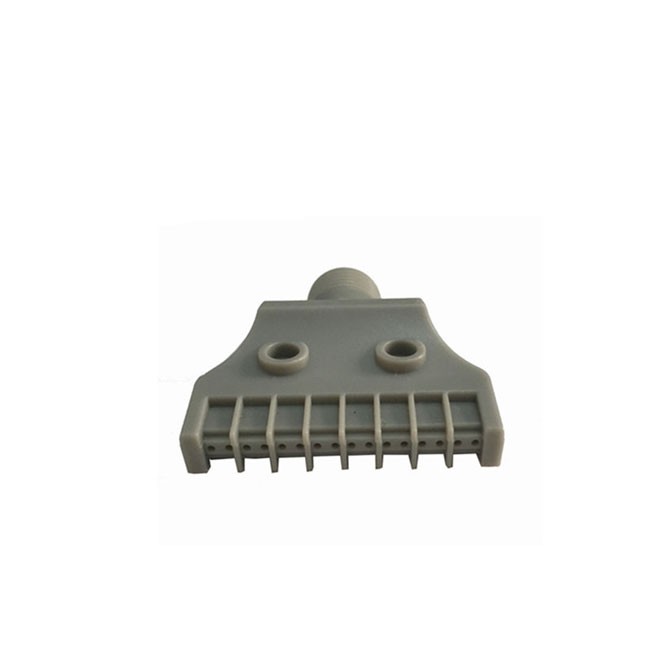

• It’s a mini type in 39.5mm width with 16 holes.
• Only 1/4″ male thread size is available.
• Using Plastic Mini Type Wind jet Air Nozzles can help reduce operating costs and noise, improve worker safety and provide more precise, repeatable drying and blow-off.
• Plastic Mini Type Wind jet Air Nozzles use 25% to 35% less air than open pipe with perceived noise reductions ranging from 28% to 60%.
• Max pressure for Plastic Mini Type Wind jet Air Nozzles is 7 bar.
• Max operating temperature is 77°C.
General Application
1) Applications where impact or a continuous stream of air is needed
2) Air recycling with existing compressed air lines
3) Drying
4) Cooling
5) Blow-off and moving materials
Description
| Model |
FN |
|
Material |
ABS |
|
Spray pattern |
Flat Fan |
|
Thread size |
1/4″ |
|
Hole |
16 holes |
Dimensions
| Model No. |
Thread size |
Dimensions(mm) |
|
|
h |
d |
||
|
FN 1/4 -ABS |
1/4 |
38 |
39.5 |
Performance data
| Series |
Orifice section |
Number of holes |
Air consumption at different wind speed |
||||||||
|
V=2m/s |
V=3m/s |
V=4m/s |
V=5m/s |
V=10m/s |
V=15m/s |
V=20m/s |
V=25m/s |
V=30m/s |
|||
|
FN 1/4 -ABS |
1.256 * 10-5 ㎡ |
16 |
0.9 |
1.36 |
1.8 |
2.26 |
4.52 |
6.78 |
9.0 |
11.3 |
13.6 |
Ordering information
|
FN |
1/4″ |
ABS |
|
↓ |
↓ |
↓ |
|
Model No. |
Thread size Size |
Material |
