Features
Features:

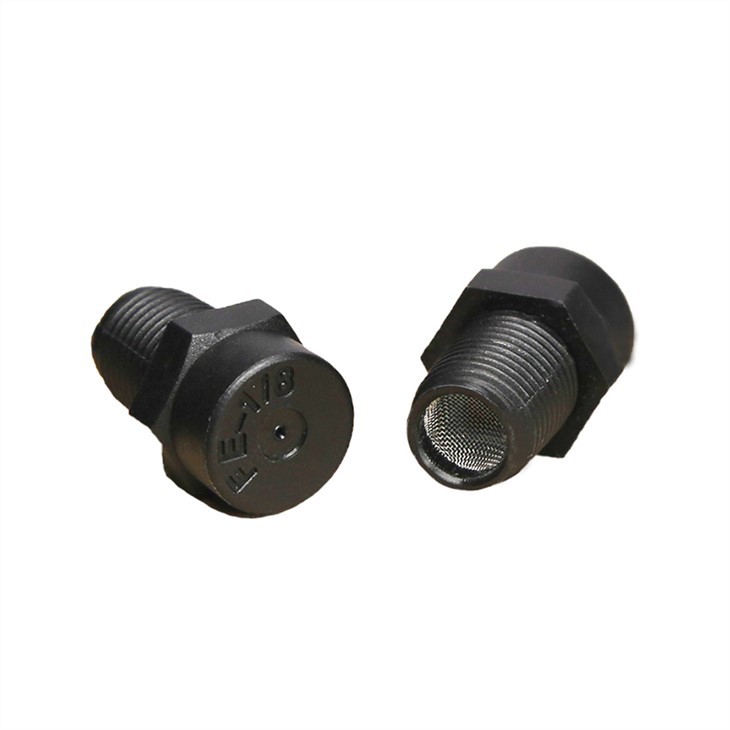

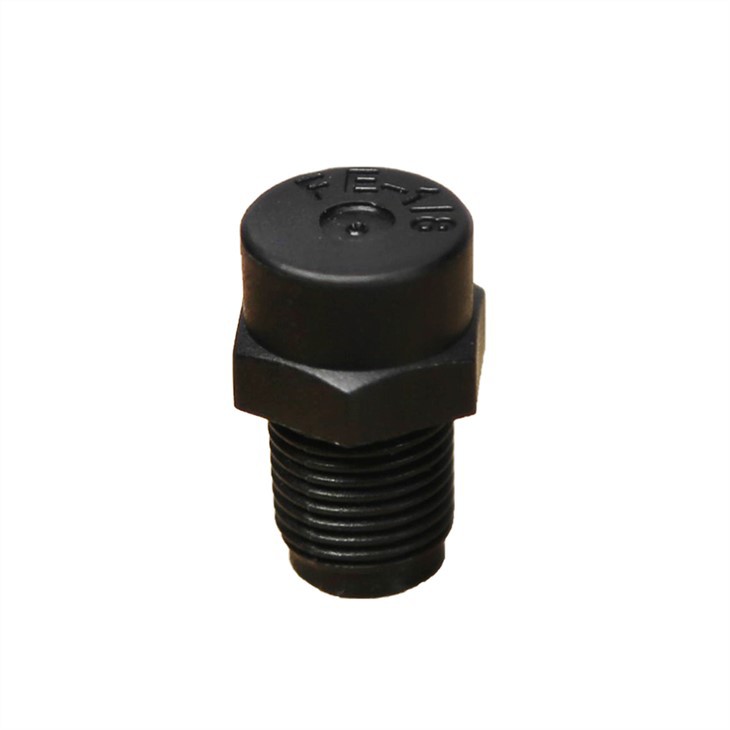

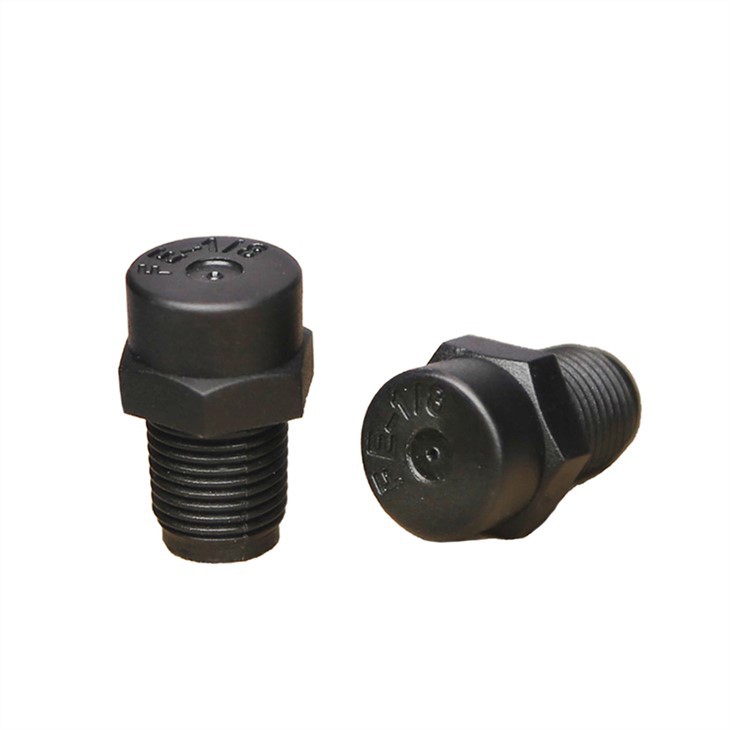

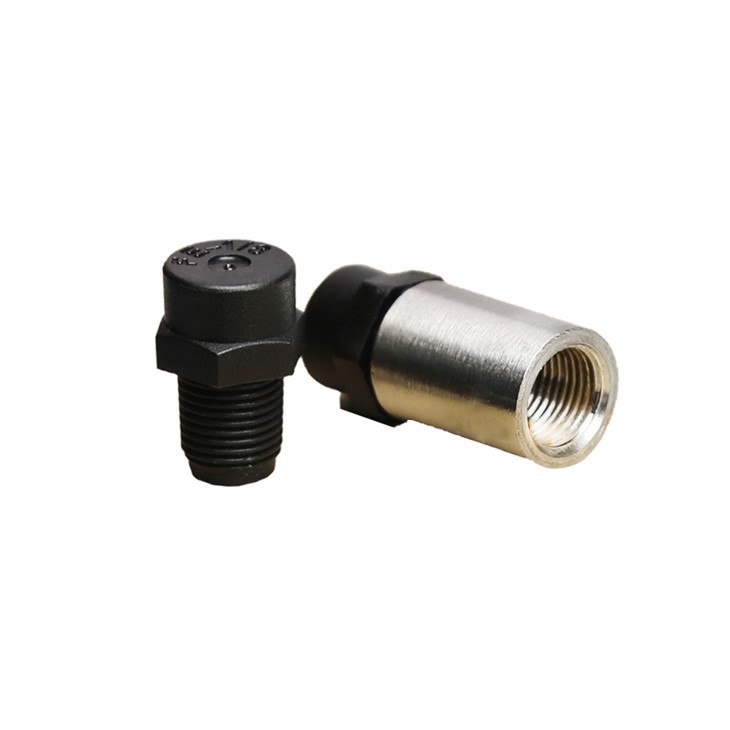

• Plastic Low Pressure Fog Misting Nozzles produce very fine fog with small droplets
• Material : PP ( Polypropylene ) Corrosion resistance and wearing resistance
•Working pressure 3~15bar
• Thread size : 1/8″ Male
• Compact size, wide variety of flowrates.
• This series of misting nozzles do not need air supply,
• The system is simple; the spray mist is fine, full atomization, energy saving,
• Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.
|
Plastic Low Pressure Fog Misting Nozzles |
Low Pressure Fog Misting Nozzles |
General Application:
• Humidification
• Fog spraying
• Liquid spraying
• Flue gas evaporating cooling
• Artificial fog
|
FE Performance data |
||||
|
Thread Size |
Droplet size |
Flow rate |
Pressure |
Spray Angle |
|
inch |
(μm) |
L/H |
bar |
(°) |
|
1/8 |
20-40 |
1.6-3.4 |
3-14 |
80-90° |
