Features
Features:
• Easy Connect on pipe with Hollow Cone type spray tips.
• Use with 3/4” , 1” pipe.
• Inlet sizes for 8 mm holes.
• Spray orifice dia. 2.5mm.
• Chemical- and corrosion-resistant material PP or FRPP ( Fiber reinforced Polypropylene) withstands high temperatures at about 85°C.
• Spring-grade stainless steel clamp.
• Special Chamber design allows the nozzle with max free pasage to minimize clogging.
• Typical usage is for Cleaning, rinsing, degreasing, phosphating, passivation.
|

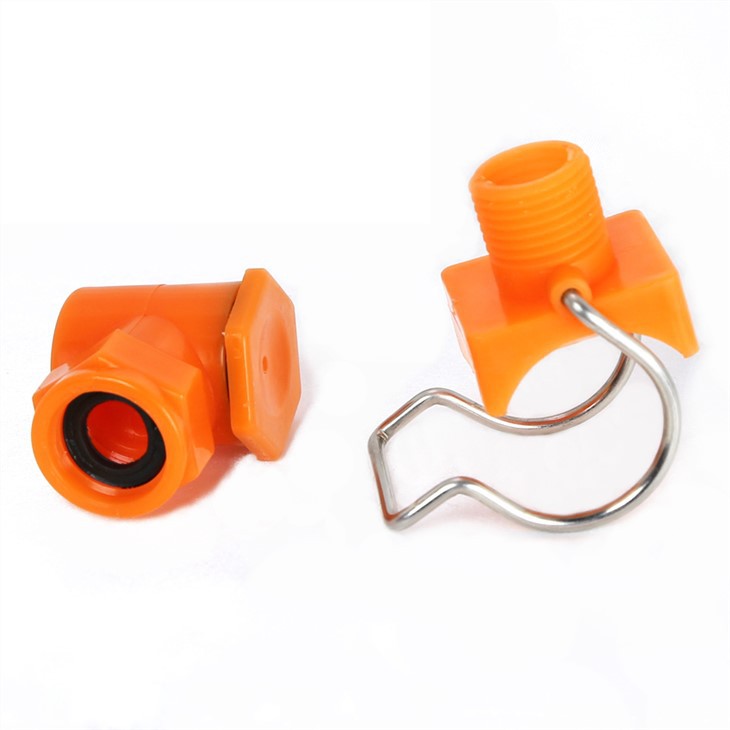

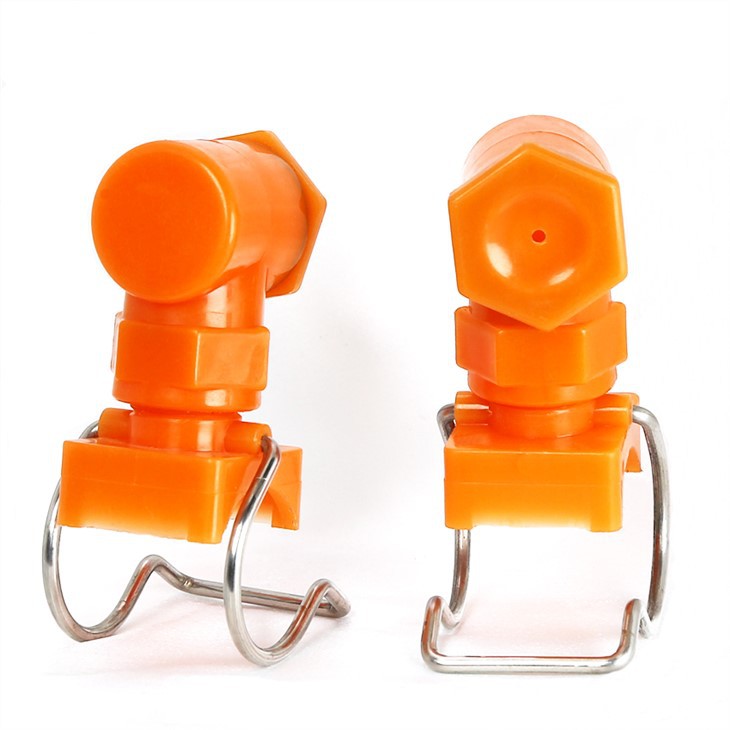

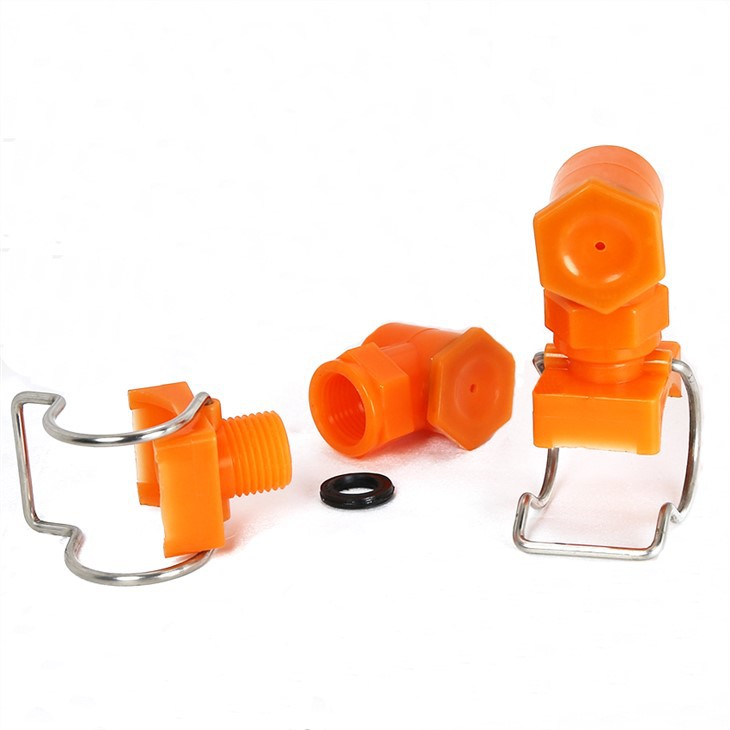

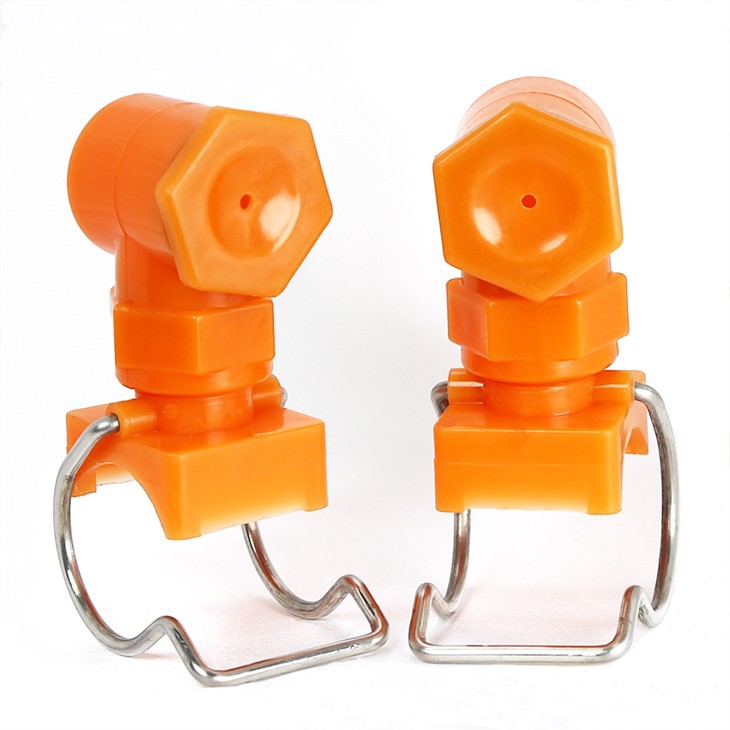

Plastic Hollow Cone Spray Clip Eyelet Nozzles |
Hollow Cone Spray Clip Eyelet Nozzles |
|
Model No. |
Clamp size |
Inlet hole Dia |
Orifice Dia. |
Working Pressure |
Spray Pattern |
|
27990 |
3/4” |
8mm |
2.5mm |
2 – 3 bar |
Hollow Cone |
|
27990 |
1” |
8mm |
2.5mm |
2 – 3 bar |
Hollow Cone |
