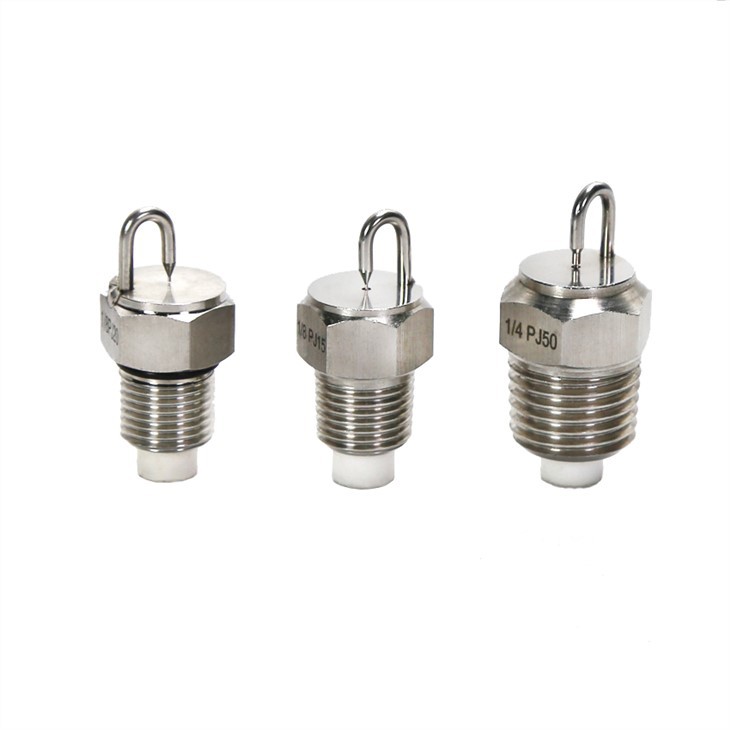

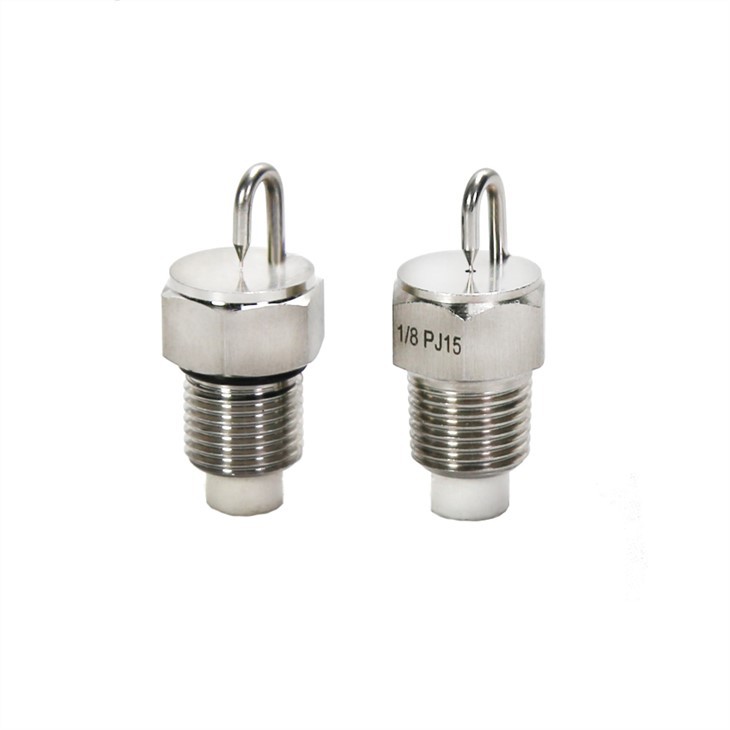

PJ Impingement Pin Fine Fog Misting Nozzles
Features
• Material: main body (stainless steel), with micro-nozzle plate ruby inserted or complete stainles steel
• Thread size: 1/8″ or 1/4″
• Coverage area: a nozzle spray coverage area of about 1-2 square meters in no wind or breeze
• PJ Impingement Pin Fine Misting Nozzles can be used indoor and outdoor .
•Working pressure 2~70bar
• This series of nozzles does not need air supply,
• The system is simple; the spray mist is fine, full atomization, energy saving,
• Filter device: 6.5*8.8mm PP microporous filter element at nozzle inlet
• Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.
• Stainless steel micro-nozzle plate is processed by advanced forging process and ruby has strong durability. It is 2.5 times longer than the same type of nozzle.
|

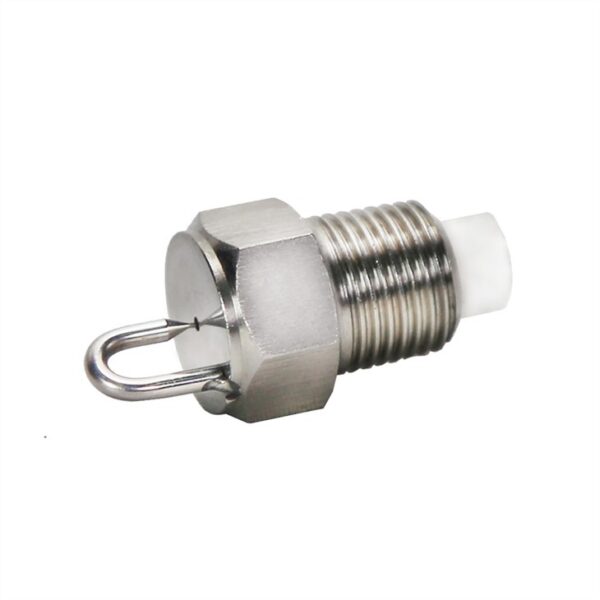

PJ Impingement Pin Fine Misting Nozzles |

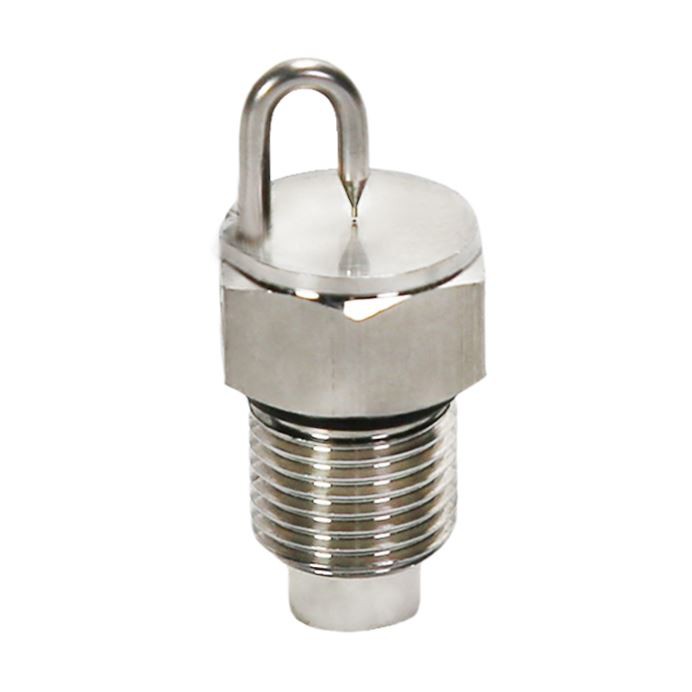

Impingement Pin Fine Misting Nozzles |
General Application
• Wetting and descaling
• Humidification
• Chemical treatment or spraying
• Liquid spraying
• Garden park or agricultural humidification or cooling
• Tablet coating
• Flue gas evaporating cooling
• Sterilization
• Fruit spray Wax
• Wetting and cooling of textile mills
• Plant humidification
• Salt spray test
• Artificial fog
Description
| Model |
PJ |
|
Inlet connection |
1/8” ; 1/4” |
|
Orifice dia. |
1mm/0.8mm/0.7mm/0.6mm/0.5mm/0.38mm/0.3mm/0.25mm/0.2mm/0.15mm |
|
Water pressure |
70bar/50bar/30bar/20bar/10bar/5bar/3bar/2bar |
Parameter
| Thread Size |
Style No |
Orifice Dia (mm) |
Flow Rate ( Liter / min) |
|||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||
|
2 bar |
3 bar |
5 bar |
10 bar |
20 bar |
30 bar |
50 bar |
70 bar |
|||
|
1/8” 1/4” |
PJ15 |
0.15 |
– |
– |
– |
0.0432 |
0.061 |
0.075 |
0.097 |
0.114 |
|
PJ20 |
0.20 |
– |
– |
0.058 |
0.082 |
0.116 |
0.142 |
0.183 |
0.217 |
|
|
PJ25 |
0.25 |
– |
0.0671 |
0.0866 |
0.123 |
0.173 |
0.212 |
0.274 |
0.324 |
|
|
PJ30 |
0.30 |
– |
0.0908 |
0.117 |
0.166 |
0.234 |
0.287 |
0.371 |
0.439 |
|
|
PJ38 |
0.38 |
0.119 |
0.146 |
0.198 |
0.267 |
0.377 |
0.462 |
0.596 |
0.705 |
|
|
PJ50 |
0.50 |
0.216 |
0.264 |
0.341 |
0.483 |
0.683 |
0.836 |
1.08 |
1.28 |
|
|
PJ60 |
0.60 |
0.322 |
0.395 |
0.51 |
0.721 |
1.02 |
1.25 |
1.61 |
1.91 |
|
|
PJ70 |
0.70 |
0.419 |
0.513 |
0.662 |
0.9368 |
1.32 |
1.62 |
2.09 |
2.48 |
|
|
PJ80 |
0.80 |
0.58 |
0.71 |
0.917 |
1.2972 |
1.83 |
2.25 |
2.09 |
3.43 |
|
|
PJ100 |
1.0 |
0.902 |
1.11 |
1.43 |
2.02 |
2.85 |
3.49 |
4.51 |
5.34 |
|
Ordering information
|
PJ15 |
1/4″ |
SS |
|
↓ |
↓ |
↓ |
|
Nozzle Type |
Thread Size |
Material |
Application pictures
|
Dust control |
Cooling |
