Features

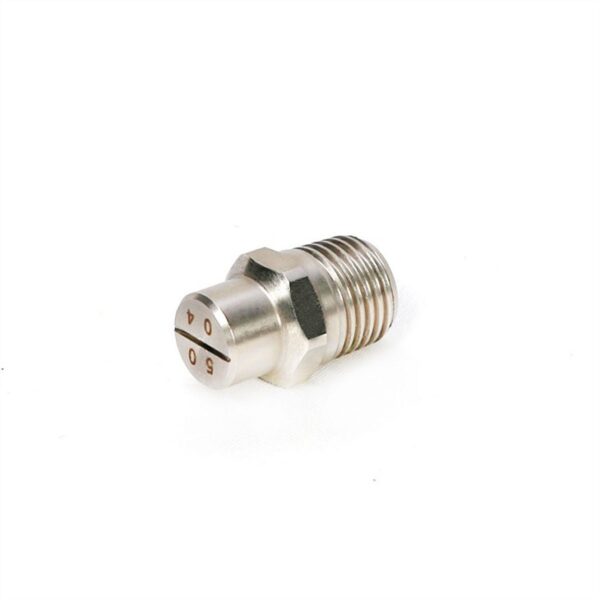

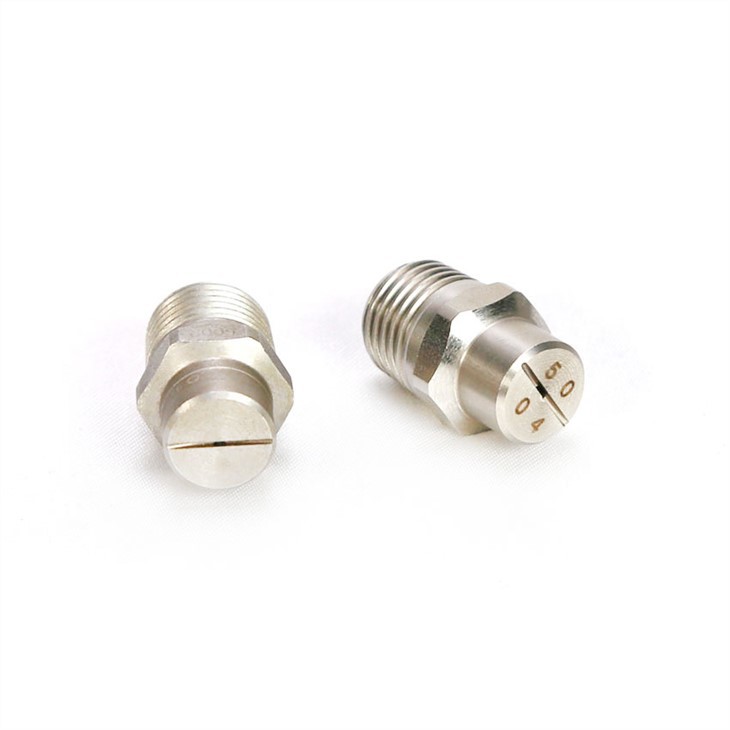

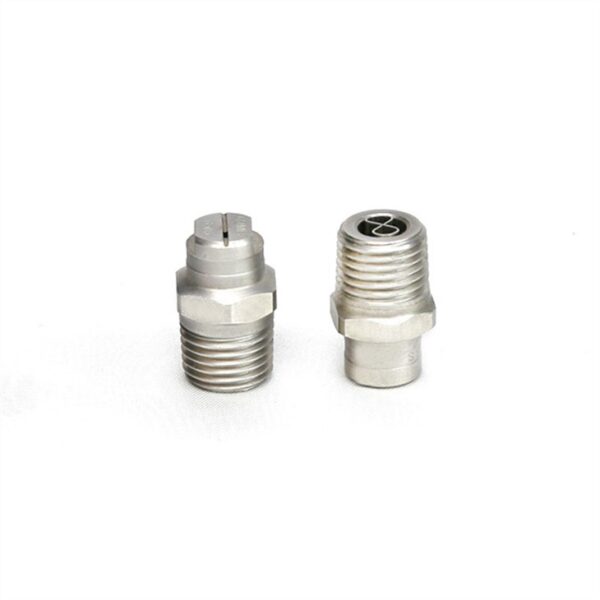

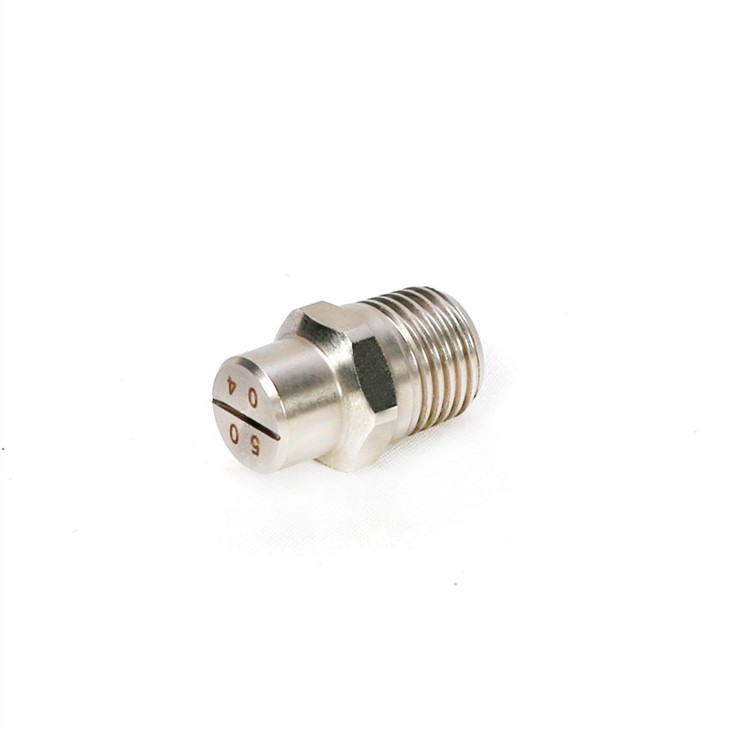

MEG fan nozzles, its unique is that it is high pressure. MEG High Pressure Wash Spray Nozzle is suitable for high pressure cleaning with strong impact washing force.
• MEG High Pressure Flat Fan Spray Nozzles are used under high pressure maximum up to 200 bar or 2900 psi with sharp uniform flat fan spraying.

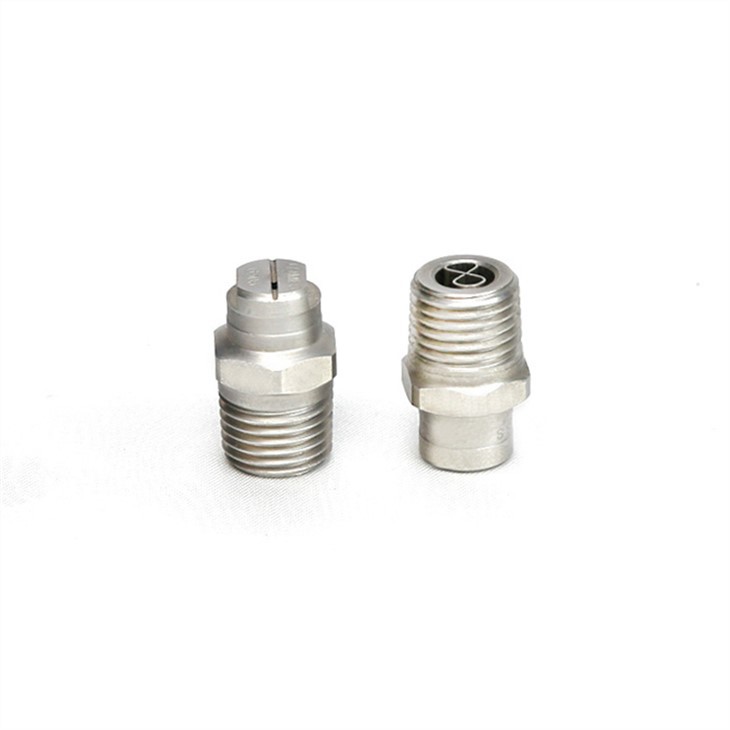

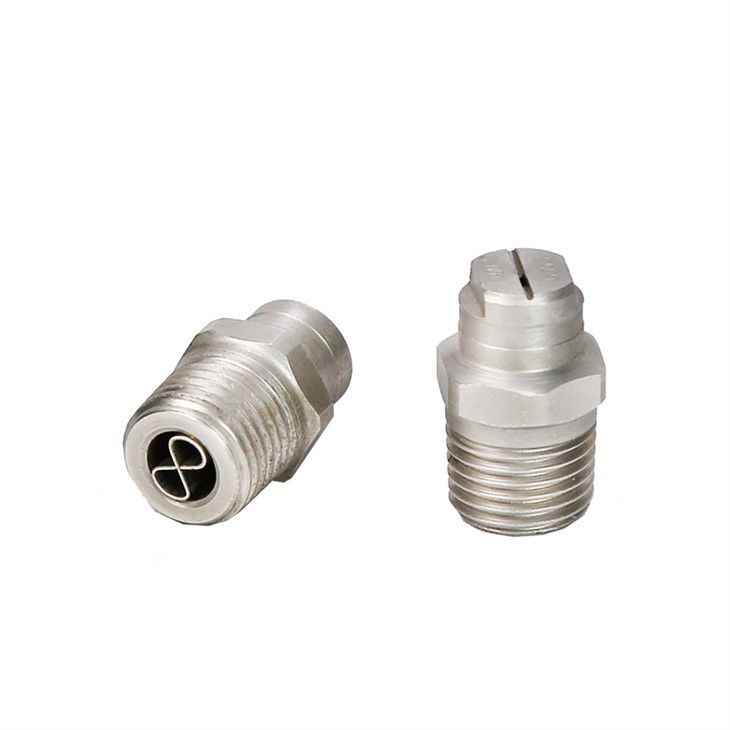

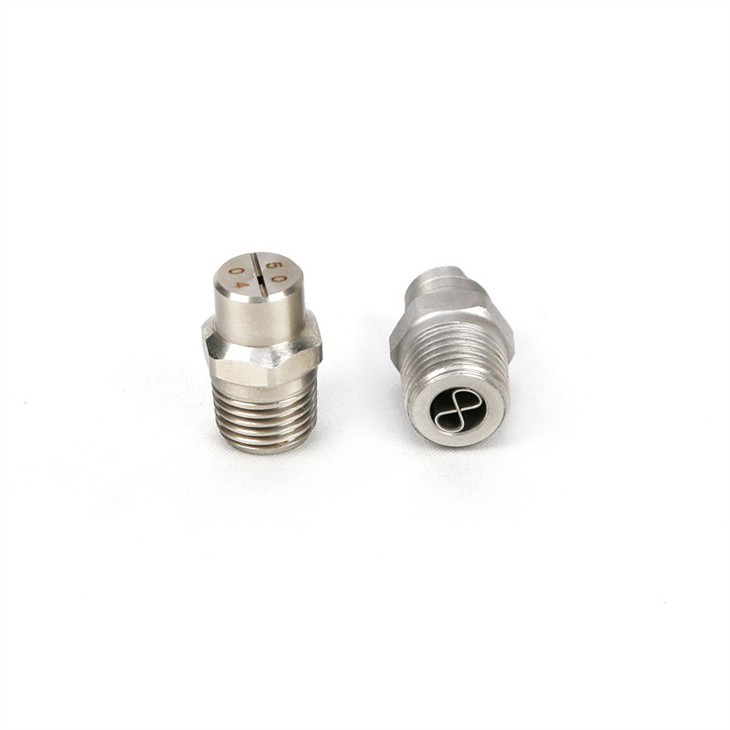

• MEG High Pressure Flat Fan Spray Nozzles equipped with Spray Stabilizer For narrow angle
• A wide selection of flow rates, spray angles with heat or harden treated 416 steel material and
connections.
• MEG High Pressure Flat Fan Spray Nozzles produce a linear spray.
• Spray angle from 0°to 110°
• Thread size range from 1/8″ to 2″ with BSPT or NPT thread type
• Stable spray angle with uniform, parabolic distribution of liquid.
• Spray pipes equipped with these nozzles show an extremely uniform total distribution of liquid.
|
MEG High Pressure Flat Fan Spray Nozzles |
High Pressure Flat Fan Spray Nozzles |
Description
|
Model |
MEG |
|
Inlet connection |
1/8’’1/4’’ BSPT or NPT |
|
Spray pattern |
Flat Fan |
|
Spray angle |
110°/95°/80°/73°/65°/50°/40°/25°/15°/0° |
|
Application |
Cleaning,Washing,Rinsing,Cooling,Quenching |
|
Lead time |
1-2 days after payment |
|
Delivery |
DHL,FedEx,UPS,TNT,EMS |
|
Payment |
T/T,Western Union,Paypal,Credit Card,Ali pay,We chat pay |
Parameter
|
Orifice Dia. (mm) |
Flow Code |
Flow rate L/min |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|||||||||||
|
25 bar |
30 bar |
35 bar |
40 bar |
50 bar |
60 bar |
70bar |
100 bar |
150 bar |
200 bar |
||
|
0.91 |
02 |
2.3 |
2.5 |
2.7 |
2.9 |
3.2 |
3.5 |
3.8 |
4.6 |
5.6 |
6.4 |
|
1.1 |
03 |
3.4 |
3.7 |
4 |
4.3 |
4.8 |
5.3 |
5.7 |
6.8 |
8.4 |
9.4 |
|
1.3 |
04 |
4.6 |
5 |
5.4 |
5.8 |
6.4 |
7.1 |
7.6 |
9.1 |
11.2 |
12.9 |
|
1.35 |
045 |
5.1 |
5.6 |
6.1 |
6.5 |
7.3 |
7.9 |
8.6 |
10.3 |
12.6 |
14.5 |
|
1.4 |
05 |
5.7 |
6.2 |
6.7 |
7.2 |
8.1 |
8.8 |
9.5 |
11.4 |
14 |
16.1 |
|
1.5 |
055 |
6.3 |
6.9 |
7.4 |
7.9 |
8.9 |
9.7 |
10.5 |
12.5 |
15.4 |
17.7 |
|
1.6 |
06 |
6.8 |
7.5 |
8.1 |
8.6 |
9.7 |
10.6 |
11.4 |
13.7 |
16.7 |
19.3 |
|
1.65 |
065 |
7.4 |
8.1 |
8.8 |
9.4 |
10.5 |
11.5 |
12.4 |
14.8 |
18.1 |
21 |
|
1.7 |
07 |
8 |
8.7 |
9.4 |
10.1 |
11.3 |
12.4 |
13.3 |
16 |
19.5 |
23 |
|
1.75 |
075 |
8.5 |
9.4 |
10.1 |
10.8 |
12.1 |
13.2 |
14.3 |
17.1 |
21 |
24 |
|
1.8 |
08 |
9.1 |
10 |
10.8 |
11.5 |
12.9 |
14.1 |
15.3 |
18.2 |
22 |
26 |
|
1.85 |
085 |
9.7 |
10.6 |
11.5 |
12.3 |
13.7 |
15 |
16.2 |
19.4 |
24 |
27 |
|
1.9 |
09 |
10.3 |
11.2 |
12.1 |
13 |
14.5 |
15.9 |
17.2 |
21 |
25 |
29 |
|
1.95 |
095 |
10.8 |
11.9 |
12.8 |
13.7 |
15.3 |
16.8 |
18.1 |
22 |
27 |
31 |
|
2 |
10 |
11.4 |
12.5 |
13.5 |
14.4 |
16.1 |
17.7 |
19.1 |
23 |
28 |
32 |
|
2.05 |
11 |
12.5 |
13.7 |
14.8 |
15.9 |
17.7 |
19.4 |
21 |
25 |
31 |
35 |
|
2.1 |
115 |
13.1 |
14.4 |
15.5 |
16.6 |
18.5 |
20 |
22 |
26 |
32 |
37 |
|
2.15 |
12 |
13.7 |
15 |
16.2 |
17.3 |
19.3 |
21 |
23 |
27 |
33 |
39 |
|
2.2 |
125 |
14.2 |
15.6 |
16.9 |
18 |
20 |
22 |
24 |
28 |
35 |
40 |
|
2.25 |
13 |
14.8 |
16.2 |
17.5 |
18.7 |
21 |
23 |
25 |
30 |
36 |
42 |
|
2.3 |
14 |
16 |
17.5 |
18.9 |
20 |
23 |
25 |
27 |
32 |
39 |
45 |
|
2.4 |
15 |
17.1 |
18.7 |
20 |
22 |
24 |
26 |
29 |
34 |
42 |
48 |
|
2.5 |
16 |
18.2 |
20 |
22 |
23 |
26 |
28 |
31 |
36 |
45 |
52 |
|
2.6 |
18 |
21 |
22 |
24 |
26 |
29 |
32 |
34 |
41 |
50 |
58 |
|
2.8 |
20 |
23 |
25 |
27 |
29 |
32 |
35 |
38 |
46 |
56 |
64 |
|
3.2 |
25 |
28 |
31 |
34 |
36 |
40 |
44 |
48 |
57 |
70 |
81 |
|
3.6 |
30 |
34 |
37 |
40 |
43 |
48 |
53 |
57 |
68 |
84 |
97 |
|
3.8 |
35 |
40 |
44 |
47 |
50 |
56 |
62 |
67 |
80 |
98 |
113 |
|
4 |
40 |
46 |
50 |
54 |
58 |
64 |
71 |
76 |
91 |
112 |
129 |
|
4.4 |
50 |
57 |
62 |
67 |
72 |
81 |
88 |
95 |
114 |
140 |
161 |
|
4.8 |
60 |
68 |
75 |
81 |
86 |
97 |
106 |
114 |
137 |
167 |
193 |
|
5.2 |
70 |
80 |
87 |
94 |
101 |
113 |
124 |
133 |
160 |
195 |
225 |
|
5.6 |
80 |
91 |
100 |
108 |
115 |
129 |
141 |
153 |
182 |
225 |
260 |
|
6 |
90.0 |
103 |
112 |
121 |
130 |
145 |
159 |
172 |
205 |
250 |
290 |
Ordering information
|
MEG |
1/4’’ |
SS |
1508 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Connector Size |
Material |
Flow code |
General Application:
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
Cleaning equipment parts
Car washing
