Features
• Large Flow SMP Fulljet Full Cone Nozzles have two inner vanes ensure max clog free passage.
• S shape vane avoids layered spraying. The spraying is uniform and completely.
• Spray angles: 30⁰ to 120⁰.
• Wide choices of materials: Stainless steel, brass, Teflon, PP (Polypropylene ).
• Connections: 1/8” to 4” (male and female NPT and BSPT) , Flange connection is also available.

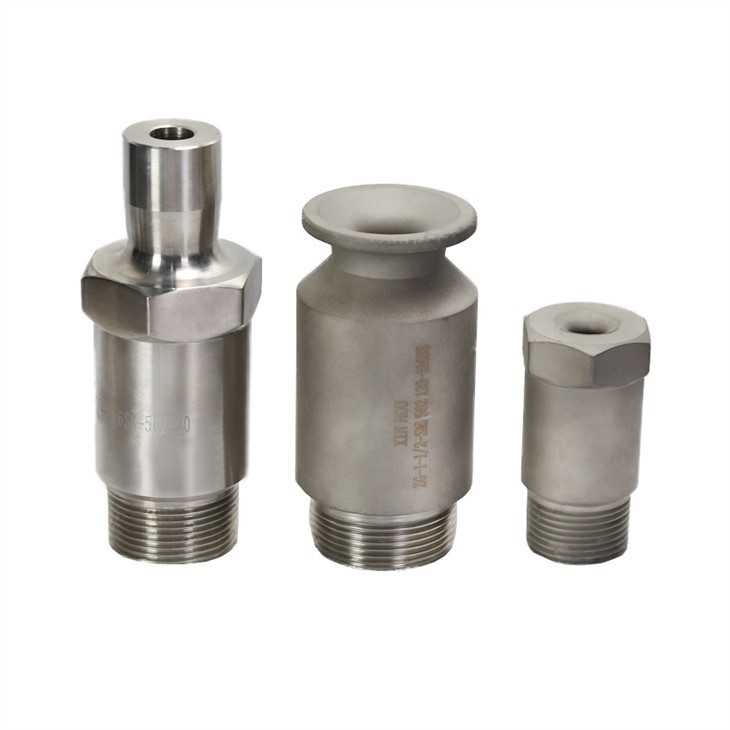

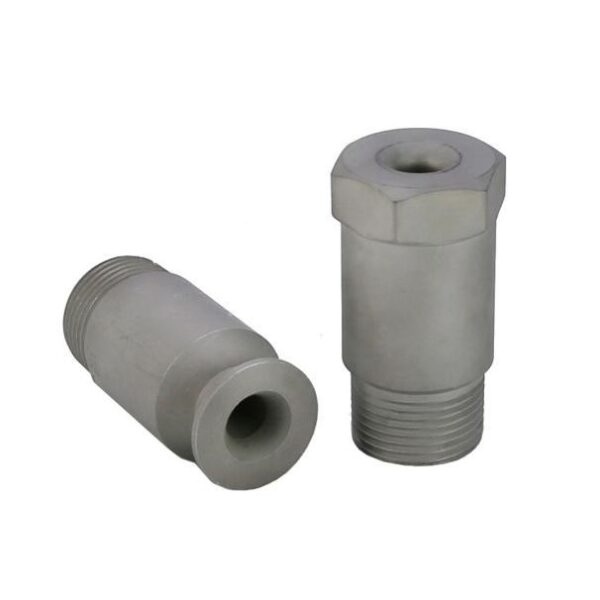

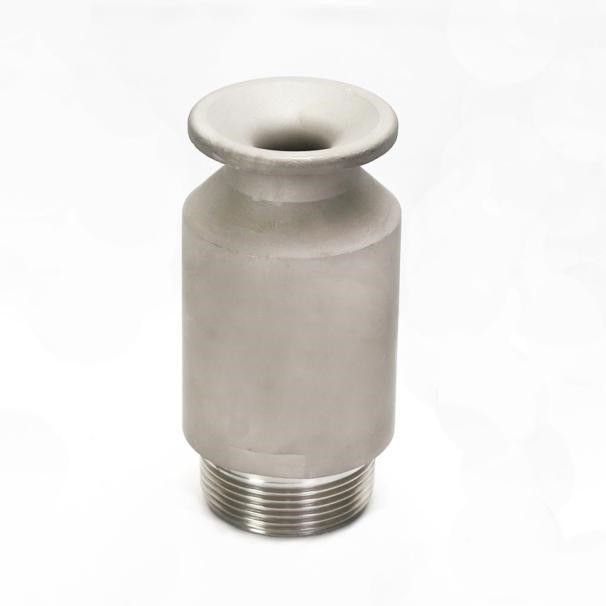

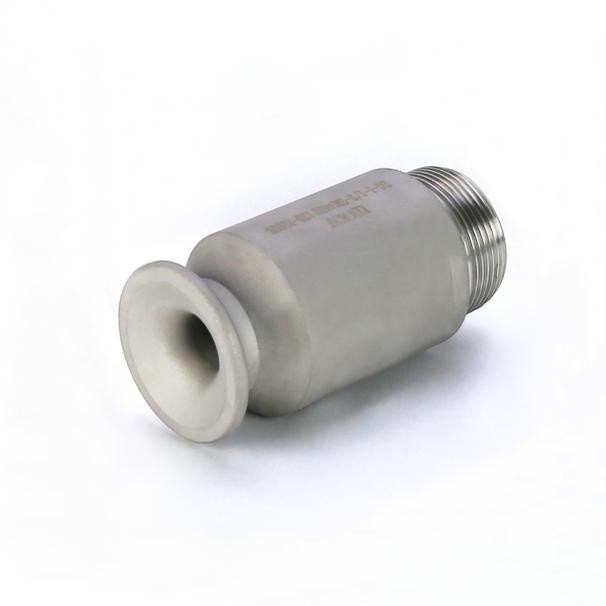

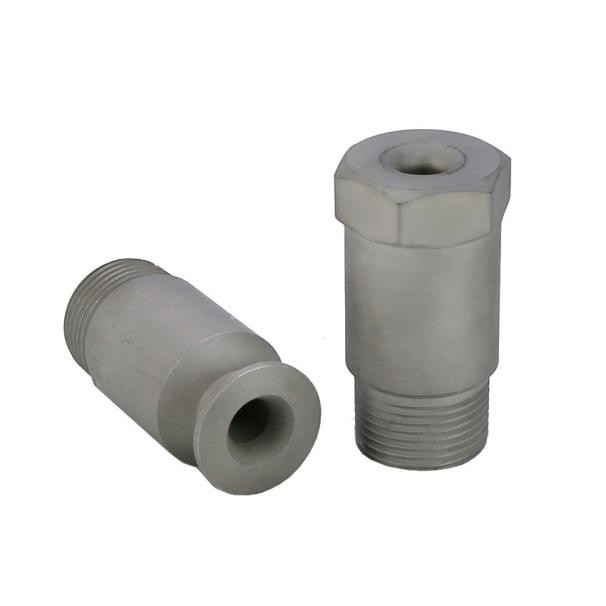

Large Flow SMP Full jet Full Cone Nozzles
Large Flow SMP Full jet Full Cone Nozzles
General Application
1) Waste gas scrubbing
2) Dust suppression
3) Chemical tower spraying
4) Quick cooling
5) Washing or cleaning
Description
|
Model |
SMP |
|
Spray pattern |
Full cone |
|
Inner connection |
3/8’’; 1/2’’; 3/4’’; 1’’; 1 1/4’’; 1 1/2’’; 2’’ 2 1/2’’; 3’’; 4’’ |
|
Spray angle |
120°/90°/60° |
|
Application |
Quick cooling of high-temperature flue gas; Flue gas washing; Flue gas dust removal; Wet desulfurization; Fire protection or extinguishment; Leaching tower; Coke quenching; Washing and bleaching; Chemical tower spraying; Cooling water and fractionating tower spraying; Defoaming |
Parameter
|
Thread Size |
Model No. |
Flow Rate ( L/min) |
Free Passage Orifice Dia |
Spray Angle |
|||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|||||||||||
|
0.2 bar |
0.3 bar |
0.5 bar |
0.7 bar |
1 bar |
2 bar |
3 bar |
5 bar |
||||
|
3/8” |
SMP125 |
2.6 |
3.14 |
3.99 |
4.68 |
5.53 |
7.66 |
9.27 |
11.8 |
3.18 |
60° 90° 120° |
|
SMP156 |
4.13 |
4.99 |
6.35 |
7.43 |
8.79 |
12.2 |
14.7 |
18.7 |
3.97 |
||
|
SMP187 |
5.96 |
7.21 |
9.17 |
10.7 |
12.7 |
17.6 |
21.3 |
27.1 |
4.76 |
||
|
1/2” |
SMP187 |
5.96 |
7.21 |
9.17 |
10.7 |
12.7 |
17.6 |
21.3 |
27.1 |
4.76 |
|
|
SMP218 |
9.48 |
11.5 |
14.6 |
17.1 |
20.2 |
28 |
33.9 |
43 |
5.56 |
||
|
SMP250 |
10.7 |
12.9 |
16.4 |
19.2 |
22.7 |
31.4 |
38 |
48.4 |
6.35 |
||
|
3/4” |
SMP281 |
13.1 |
15.8 |
20.1 |
23.6 |
27.9 |
38.6 |
46.8 |
59.4 |
7.14 |
|
|
SMP312 |
15.9 |
19.2 |
24.4 |
28.6 |
33.8 |
46.8 |
56.6 |
72 |
7.94 |
||
|
SMP343 |
19.4 |
23.5 |
29.9 |
35 |
41.4 |
57.3 |
69.4 |
88.2 |
8.73 |
||
|
SMP375 |
22.9 |
27.7 |
35.2 |
41.3 |
48.8 |
67.6 |
81.8 |
104 |
9.53 |
||
|
1” |
SMP375 |
22.9 |
27.7 |
35.2 |
41.3 |
48.8 |
67.6 |
81.8 |
104 |
9.53 |
|
|
SMP406 |
27.6 |
33.3 |
42.3 |
49.3 |
58.6 |
81.1 |
98.1 |
126 |
10.3 |
||
|
SMP437 |
34 |
40.6 |
50.9 |
59 |
69 |
93.6 |
112 |
140 |
11.1 |
||
|
1 1/4” |
SMP437 |
34 |
40.6 |
50.9 |
59 |
69 |
93.6 |
112 |
140 |
11.1 |
|
|
SMP500 |
43.7 |
52.5 |
65.4 |
75.8 |
88.7 |
120 |
144 |
180 |
11.1 |
||
|
SMP531 |
48.5 |
58 |
72.7 |
84.2 |
98.6 |
134 |
160 |
200 |
12.7 |
||
|
SMP562 |
53.4 |
63.8 |
79.9 |
92.7 |
108 |
147 |
176 |
220 |
13.5 |
||
|
1 1/2” |
SMP562 |
53.4 |
63.8 |
79.9 |
92.7 |
108 |
147 |
176 |
220 |
14.3 |
|
|
SMP593 |
60.7 |
72.5 |
90.9 |
105 |
123 |
167 |
200 |
250 |
15.1 |
||
|
SMP625 |
64.7 |
77.4 |
96.9 |
112 |
131 |
178 |
213 |
267 |
15.9 |
||
|
SMP656 |
78.5 |
93.5 |
117 |
136 |
159 |
216 |
258 |
324 |
16.7 |
||
|
SMP687 |
82.5 |
98.7 |
124 |
143 |
168 |
227 |
272 |
340 |
17.5 |
||
|
2” |
SMP750 |
100 |
120 |
150 |
174 |
204 |
276 |
333 |
414 |
19.1 |
|
|
SMP812 |
110 |
132 |
165 |
191 |
223 |
303 |
362 |
454 |
20.6 |
||
|
SMP875 |
136 |
162 |
203 |
236 |
276 |
374 |
448 |
560 |
22.2 |
||
|
SMP937 |
152 |
182 |
228 |
264 |
309 |
419 |
501 |
627 |
23.8 |
||
|
SMP1000 |
178 |
213 |
266 |
309 |
361 |
490 |
586 |
734 |
25.4 |
||
|
SMP1125 |
206 |
249 |
317 |
371 |
439 |
608 |
736 |
935 |
28.6 |
||
|
2 1/2” |
SMP1125 |
206 |
249 |
317 |
371 |
439 |
608 |
736 |
935 |
28.6 |
|
|
SMP1250 |
247 |
299 |
381 |
446 |
527 |
730 |
883 |
1120 |
31.8 |
||
|
SMP1375 |
297 |
359 |
456 |
535 |
632 |
875 |
1060 |
1350 |
34.9 |
||
|
SMP1500 |
363 |
440 |
559 |
655 |
774 |
1070 |
1230 |
1650 |
38.1 |
||
|
3” |
SMP1500 |
363 |
440 |
559 |
655 |
774 |
1070 |
1230 |
1650 |
38.1 |
|
|
SMP1625 |
428 |
517 |
658 |
770 |
911 |
1260 |
1530 |
1940 |
41.3 |
||
|
SMP1750 |
488 |
591 |
751 |
880 |
1040 |
1440 |
1740 |
2220 |
44.5 |
||
|
4” |
SMP1750 |
488 |
591 |
751 |
880 |
1040 |
1440 |
1740 |
2220 |
44.5 |
|
|
SMP1825 |
550 |
660 |
845 |
990 |
1170 |
1620 |
1960 |
2490 |
47.6 |
||
|
SMP2000 |
643 |
778 |
989 |
1160 |
1370 |
1900 |
2300 |
2920 |
50.8 |
||
|
SMP2125 |
719 |
870 |
1100 |
1290 |
1530 |
2100 |
2550 |
3250 |
54 |
||
|
SMP2250 |
780 |
944 |
1200 |
1400 |
1660 |
2300 |
2780 |
3540 |
57.2 |
||
Ordering information
|
SMP125 |
1/4’’ |
SS |
2.6 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
