Features

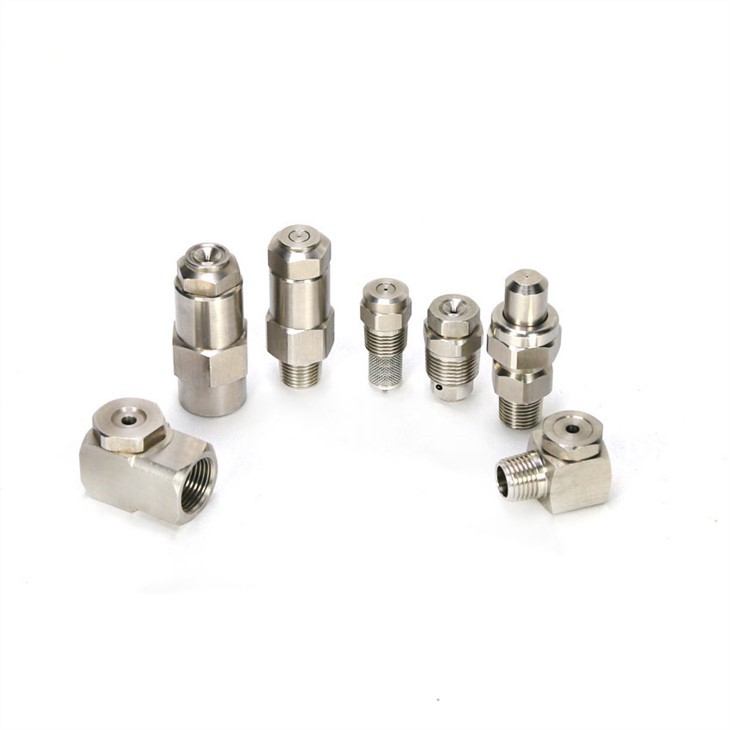

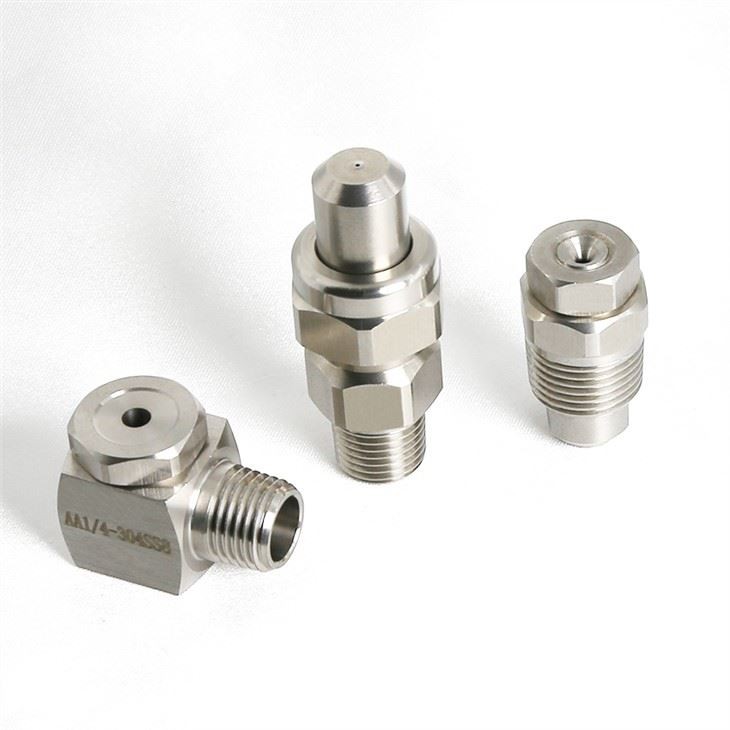

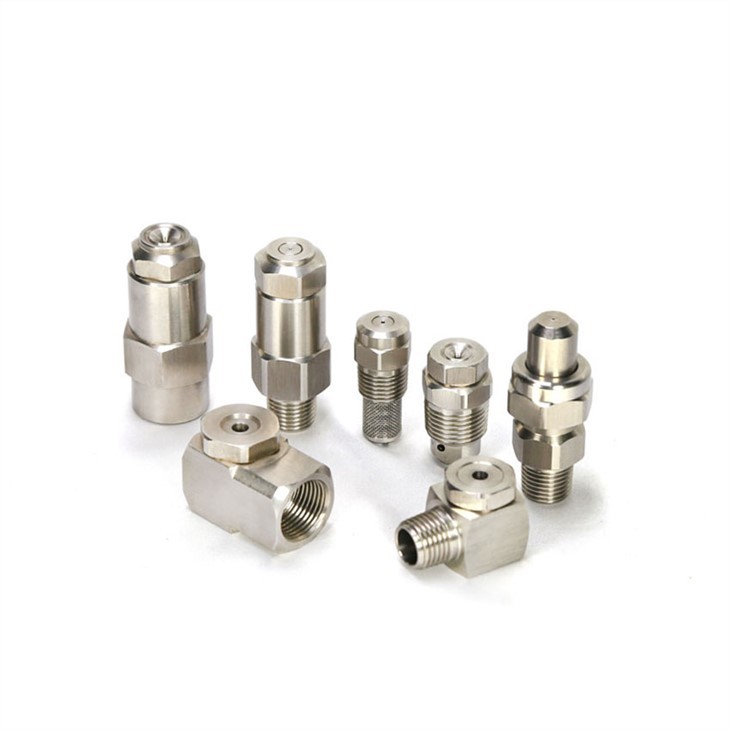

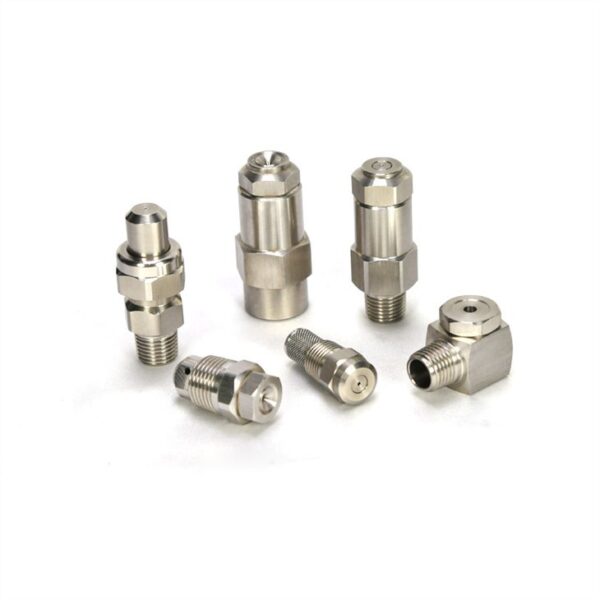

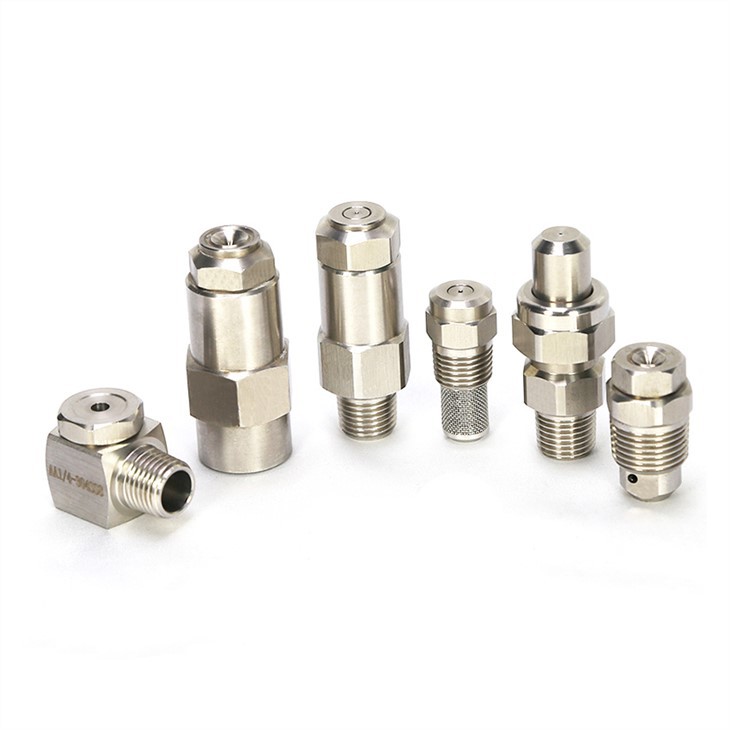

Hollow cone spraying nozzles produce small- to medium-sized drops forming a hollow cone pattern with a ring-shaped impact area. The large, unobstructed flow passage minimizes clogging, allowing for uniform distribution at a wide range of flow rates and pressures, and effective atomization of liquids at lower pressures. The hollow cone spray pattern is ideal for cooling, washing, gas scrubbing / cooling, dust control and fire protection.
What are the different types of hollow cone spnozzles?
Right Angle WhirlJet Hollow Cone Spray Nozzles
Spray shape is hollow cone, spray area become hollow circle. Water enter in from entry, vortically spray out through an eddy flow channel, without any jam internally, so the nozzle is difficult to be blocked. The nozzle cap is able to be detached.
TX Teejet Hollow Cone Spray Nozzles
TX Teejet Hollow Cone Spray Nozzles are combined by body, tip, filter and retainer. Hollow cone spray pattern is made of droplets concentrated on a ring-shaped impact area, with no droplets falling inside the conic volume. It produces a very fine atomized liquid mist and can capture a higher rate of suspended particles than other nozzles.
BD Straight Line Hollow Cone Spray Nozzles
Its spray granule is tiny and well-distributed.It provides a hollow cone of uniform atomizing spray. Simple structure, caps can be changed. Nozzle can be directly installed on the pipe seat, no need to use a connector. There are two choices: standard angle and wide angle
ABS Whirljet Right Angle Hollow Cone Spray Nozzles
Hollow cone nozzles provide a finely atomized mist and a very uniform hollow cone spray pattern. They offer higher performances than other nozzles with same operating pressure and capacity. They are widely used in exhaust scrubbers and gas cooling.
ABS Plastic Humidifying Hollow Cone Spray Nozzles
Hollow cone nozzles produce a ring-shaped spray pattern where all the liquid jet is concentrated on the outer edge of the ring. Hollow cone nozzles are the solution to this problem as their fine mist spray provides a better scrubbing effect.
PP Adjustable ball hollow cone Spray Nozzles
Fot plastic 155 Adjustable hollow cone spray nozzles ,its material is glass fiber reinforced PP( Polypropylene) with corrosion and wear resistance.
Description
|
Spray pattern |
Hollow cone |
|
Thread size |
1/8’’-2’’ |
|
Material |
Stainless steel(303,304,316); Brass; Plastic(PP,PVDF,PTFE) |
|
Spray angle |
50°-120° |
Why choose Xinhou’s hollow cone nozzles?
Founded in 2004, Shanghai Xinhou Spray Co., Ltd. has nearly 20 years of experience in the industrial nozzle industry. All our staffs have rich knowledge and experience of hollow cone nozzles, from the sales department to the technology department to the production department. We can provide you with reliable technical support. In the aspect of quality control, we strictly carry out standards according to ISO9001:200 . No matter whether standard or non-standard products, we can supply you with demanded products with excellent quality and reasonable prices, and satisfied service.
Hollow cone spray pattern nozzles concentrate spray droplets on the outer surface of the cone. No droplets are distributed on the inside of the spray pattern, hence the description “hollow cone”. These nozzles are normally used for gas scrubbing and gas cooling applications but can be adapted to many other industrial applications.
Our belief—” Quality is our lifeblood to survive, Credit is our root to develop”, we have always kept to this belief since the start, trying to provide products to customers which has an advantage in quality and price. We have been doing our best to improve the resource-use ratio, so as to create more value for more enterprises.
Hollow Cone Spray Nozzles: The Helpful Guide for Importers
What is a hollow cone nozzle?
The hollow cone pattern is characterized by the heavy concentration of droplets around the edge of the spray cone. Little or no fluid is deposited in the middle of the cone. The key benefits of hollow cone nozzles are that they produce the smallest drop size which gives the spray a greater surface area allowing for a quicker heat transfer. Hollow Cone Nozzles use centrifugal force internally to create a high-quality, small droplet size with a low-impact pattern. Typically used for cooling, cleaning, gas scrubbing, dust control, and fire protection
This spray pattern is a medium to low impact pattern being harder driving than the misting or full cone patterns but with less impact than a flat fan or solid stream patterns. All of the hollow cone nozzles are non-clogging because they do not contain any cores or internal vanes. All of these nozzles are of two-piece design with removable caps for easy cleaning.
What are the characteristics of a hollow cone nozzle?
Hollow cone nozzles produce a spray pattern with the liquid concentrated on the outside of a conical pattern. The typical spray distribution is saddle-shaped with less liquid in the center of the distribution, tapering off rapidly at the edges.
What are hollow cone nozzles used for?
Thanks to the wide spraying angles of hollow conical Hollow Cone spray nozzles, they are used in disinfection, gas cooling, foam killing, fire extinguishing, rapid cooling, and dampening process areas.
What is the spray effect of a hollow cone spray nozzle?
Hollow cone spray nozzles produce the smallest droplet size of any purely hydraulic nozzle. These nozzles are less prone to clogging. The spray’s projection is in the form of a hollow circle. The distribution of the liquid is very homogeneous and ideal for absorption or gas washing/cooling processes.
