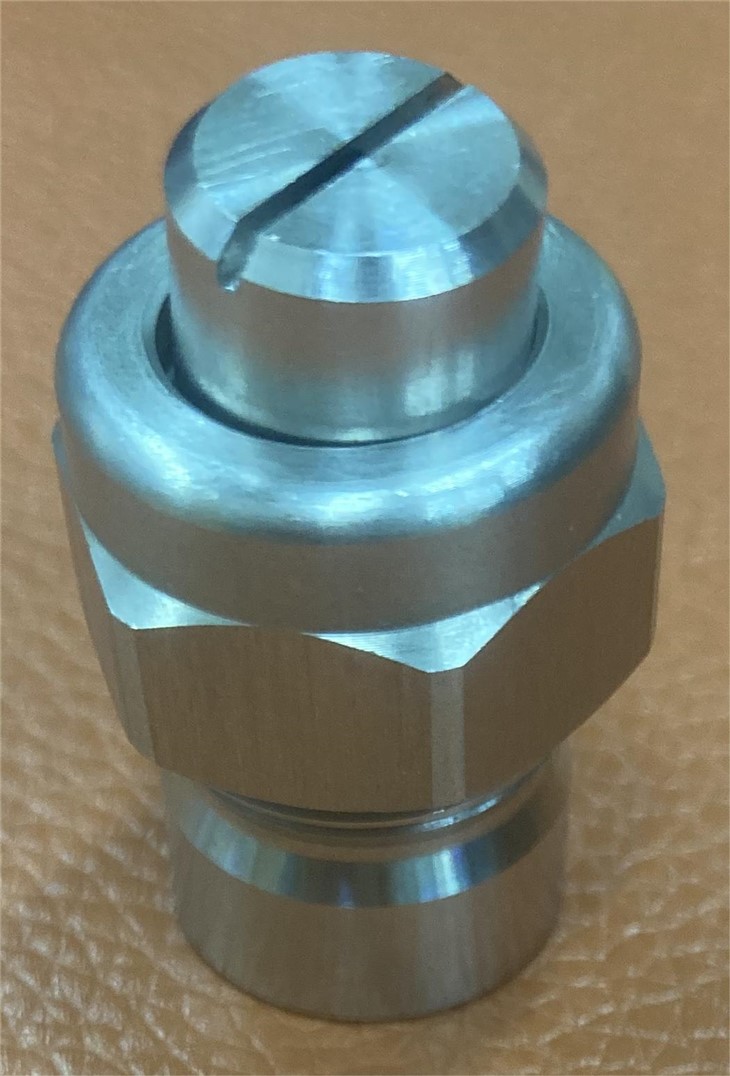

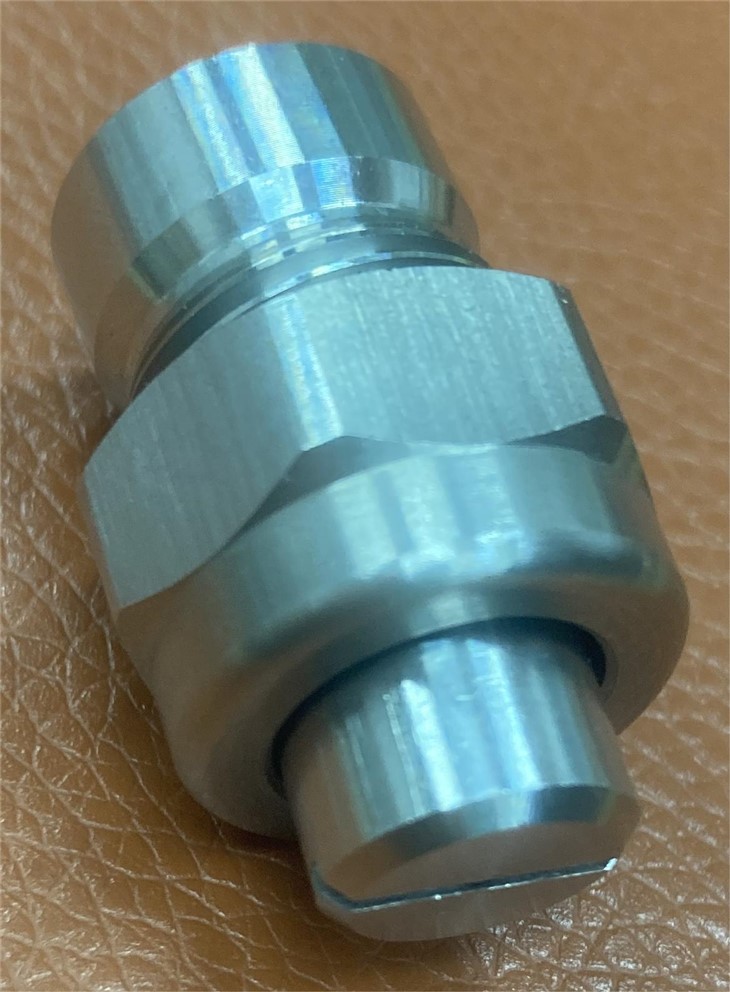

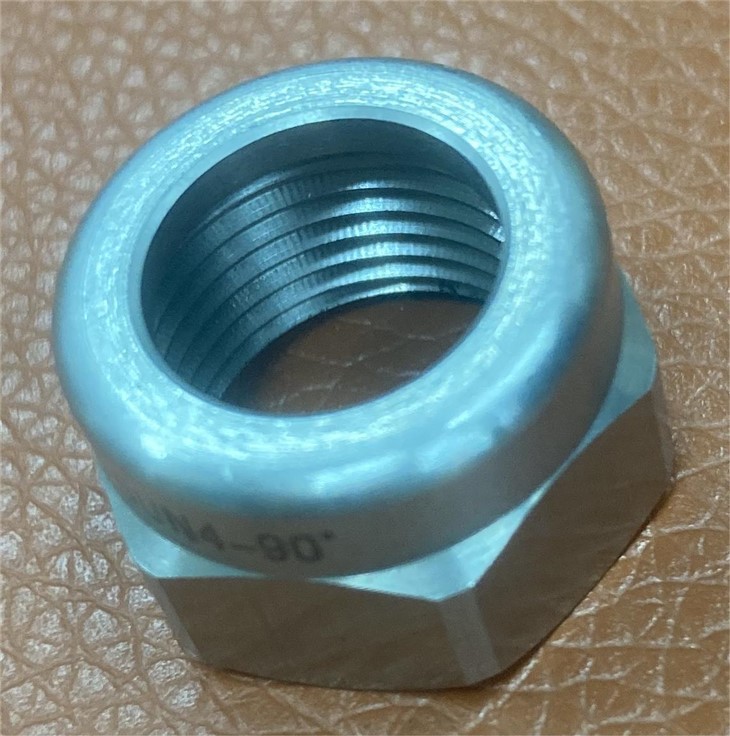

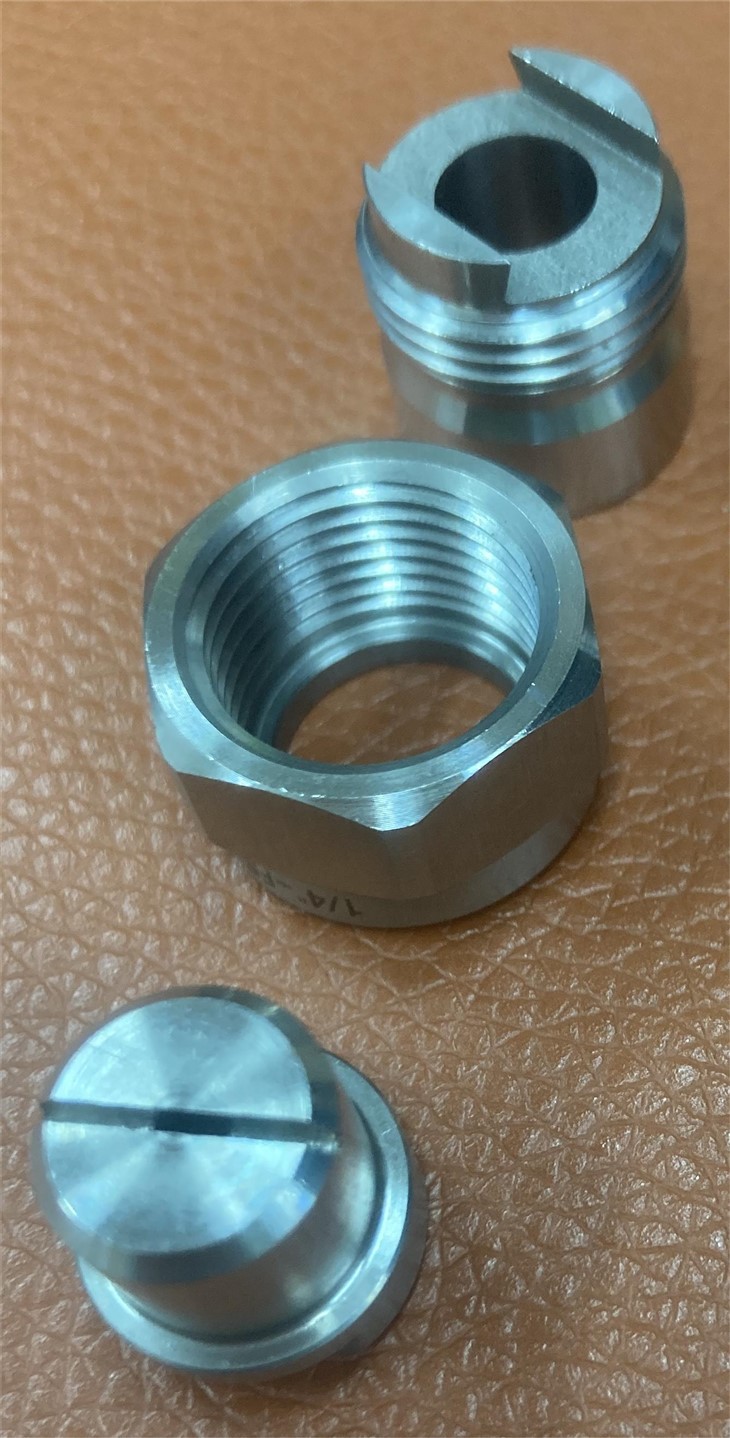

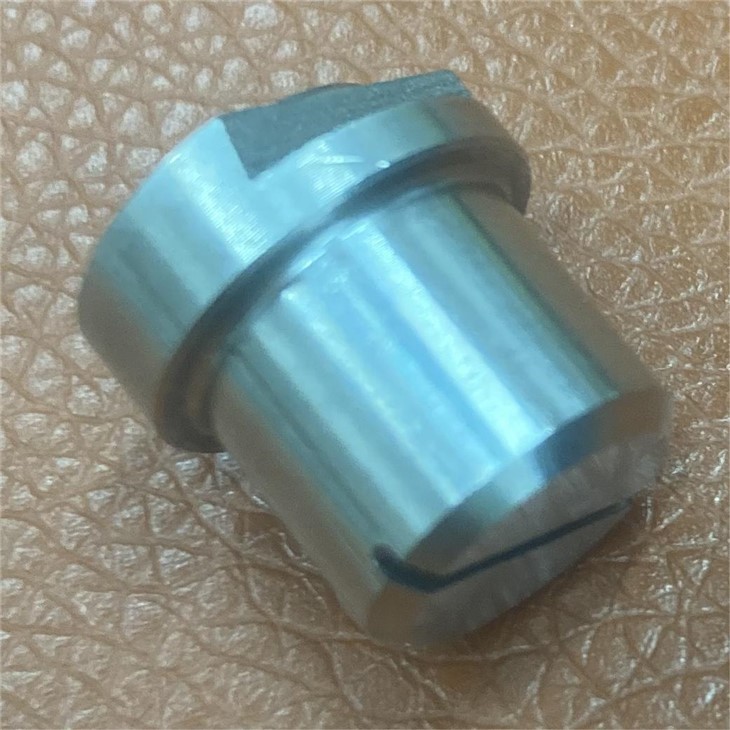

Features
High Impact Dovetail Flat Fan Spray Nozzles provide a high impact spray. Their specific dove-tail design ensures the correct spray direction and allows time saving as spray angles are no need to be adjusted each time.
• Dovetail Flat Fan Spray Nozzles provide a high impact spray
• Their specific dove-tail design ensures the correct spray direction and allows time saving as spray angles must not be adjusted each time
• A wide selection of flow rates, spray angles with standard 303,304 0r 316SS materials
• High Impact Dovetail Flat Fan Spray Nozzles produce a linear spray.
• Spray angle from 0°to 110°
• Thread size range from 3/8″ to 3/4″ with BSPT or NPT thread type
General Application :
1) Cleaning Paper making industry
2) Cooling in steel industry
3) Pressure Washing
4) Surface Preparation
|
High Impact Dovetail Flat Fan Spray Nozzles |
Dovetail Flat Fan Spray Nozzles |

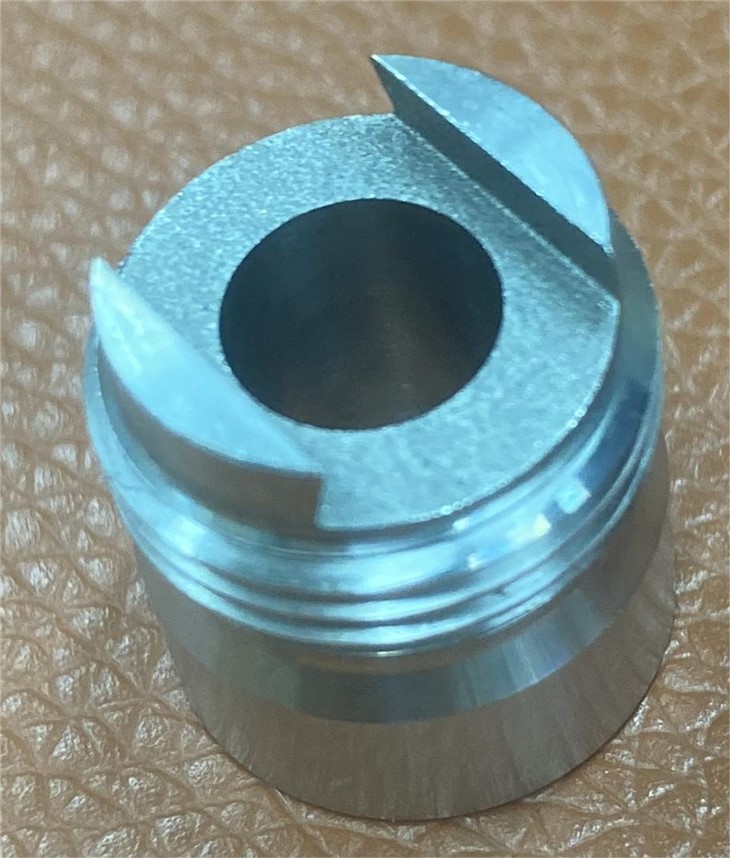

• For thread size 3/8″ offset angle is 5°. For thread size 3/4″ offset angle is 15°. The picture to the right shows an offset angle ~α between the spray plane and the dovetail.
|
Thread Size |
Style NO. |
Orifice Dia. |
Flow rate (L/min) |
Spray angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|||||||||||||
|
3/8” |
3/4” |
1 1/4” |
0.5 bar |
1 bar |
2 bar |
3 bar |
5 bar |
10 bar |
|
|
|
||
|
● |
|
|
FSUN-C-0.6 |
0.8 |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.9 |
|
|
|
|
● |
|
|
FSUN-C-1 |
1.0 |
0.3 |
0.5 |
0.6 |
0.8 |
1.0 |
1.4 |
|
|
|
|
● |
|
|
FSUN-C-1.5 |
1.2 |
0.5 |
0.7 |
1 |
1.2 |
1.5 |
2.1 |
|
20° |
|
|
● |
|
|
FSUN-C-2 |
1.4 |
0.6 |
0.9 |
1.3 |
1.6 |
2.0 |
2.8 |
|
|
|
|
● |
|
|
FSUN-C-2.5 |
1.5 |
0.8 |
1.1 |
1.6 |
1.9 |
2.5 |
3.5 |
|
|
|
|
● |
|
|
FSUN-C-3 |
1.7 |
1.0 |
1.3 |
1.9 |
2.3 |
3.0 |
4.2 |
|
30° |
|
|
● |
|
|
FSUN-C-4 |
2.0 |
1.3 |
1.8 |
2.5 |
3.1 |
4.0 |
5.6 |
|
|
|
|
● |
|
|
FSUN-C-5 |
2.2 |
1.5 |
2.2 |
3.2 |
3.9 |
5.0 |
7.1 |
|
|
|
|
● |
|
|
FSUN-C-6 |
2.5 |
1.9 |
2.7 |
3.8 |
4.6 |
6.0 |
8.5 |
|
45° |
|
|
● |
|
|
FSUN-C-7.5 |
2.7 |
2.4 |
3.4 |
4.7 |
5.8 |
7.5 |
10.6 |
|
|
|
|
● |
● |
|
FSUN-C-10 |
3.0 |
3.2 |
4.5 |
6.3 |
7.8 |
10.0 |
14.1 |
|
|
|
|
● |
● |
|
FSUN-C-13 |
3.5 |
4.1 |
5.8 |
8.2 |
10.1 |
13.0 |
18.4 |
|
60° |
|
|
● |
● |
|
FSUN-C-16 |
4.0 |
5.1 |
7.2 |
10.1 |
12.4 |
16.0 |
22.6 |
|
|
|
|
● |
● |
|
FSUN-C-20 |
4.5 |
6.3 |
8.9 |
12.7 |
15.5 |
20.0 |
28.3 |
|
|
|
|
● |
● |
|
FSUN-C-25 |
5.0 |
7.9 |
11.2 |
15.8 |
19.4 |
25.0 |
35.4 |
|
75° |
|
|
|
● |
|
FSUN-C-32 |
5.5 |
10.1 |
14.3 |
20.2 |
24.8 |
32.0 |
45.3 |
|
|
|
|
|
● |
|
FSUN-C-40 |
6.0 |
12.7 |
17.9 |
25.3 |
31.0 |
40.0 |
56.6 |
|
|
|
|
|
● |
|
FSUN-C-50 |
7.0 |
15.8 |
22.4 |
31.6 |
38.7 |
50.0 |
70.7 |
|
90° |
|
|
|
● |
● |
FSUN-C-63 |
8.0 |
19.9 |
28.2 |
39.8 |
48.8 |
63.0 |
89.1 |
|
|
|
|
|
● |
● |
FSUN-C-80 |
9.0 |
25.3 |
35.8 |
50.6 |
62.0 |
80.0 |
113.1 |
|
|
|
|
|
● |
● |
FSUN-C-100 |
10.0 |
31.6 |
44.7 |
63.2 |
77.5 |
100.0 |
141.4 |
|
120° |
|
|
|
● |
● |
FSUN-C-130 |
11.0 |
41.4 |
58.1 |
82.2 |
100.7 |
130.0 |
183.8 |
|
|
|
|
|
● |
● |
FSUN-C-160 |
12.0 |
50.0 |
71.6 |
101.2 |
123.9 |
160.0 |
226.3 |
|
|
|
|
|
|
● |
FSUN-C-200 |
13.0 |
63.2 |
89.4 |
126.5 |
154.9 |
200.0 |
282.8 |
|
|
|
|
|
|
● |
FSUN-C-250 |
15.0 |
79.1 |
111.8 |
158.1 |
193.7 |
250.0 |
353.6 |
|
|
|
Ordering information
|
FSUN-C |
1/4’’ |
– |
316SS |
5010 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
connector Size |
|
Material |
Flow code |
The high pressure dovetail fan nozzle is a unique one among the flat fan spray nozzles, its shape is unique, and it has high requirements for production skills. In the production technology of nozzle , Shanghai Xinhou spray nozzle company has been with high standards of strict requirements on our own, and constantly strive for excellence, in order to bring the best products to customers.
Because this product is very special, it is high pressure, if you have any uncertainty or doubt about the environment and conditions you use, please feel free to contact us, we will choose the most suitable flat fan nozzle for you according to your actual situation.
