Features
• Removable caps and vanes on most models for easy cleaning
• Unique vane design ensures uniform spray distribution

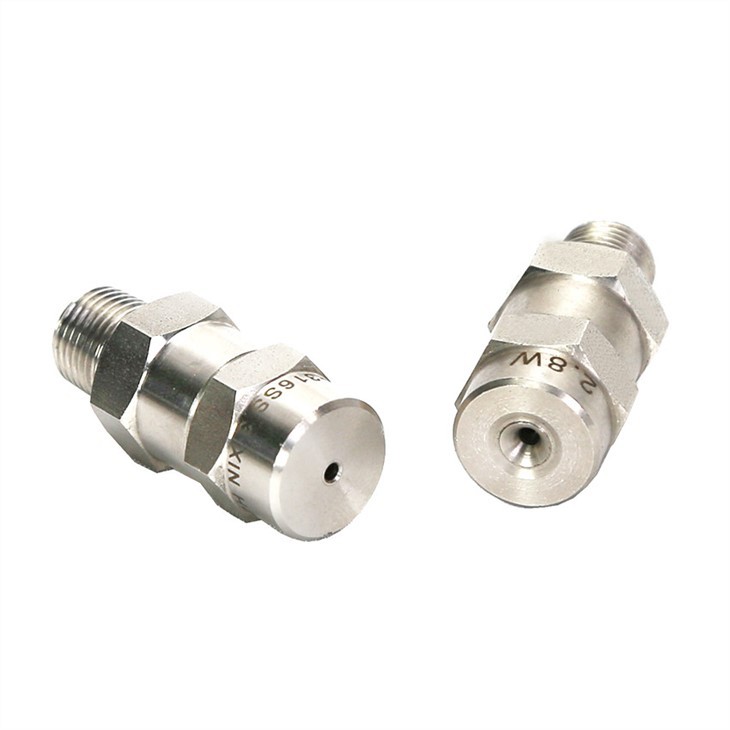

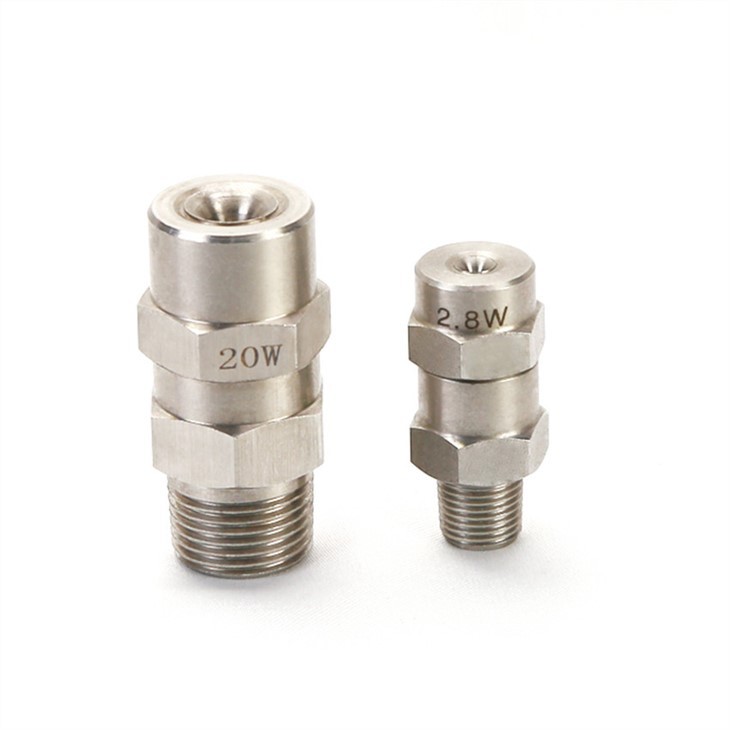

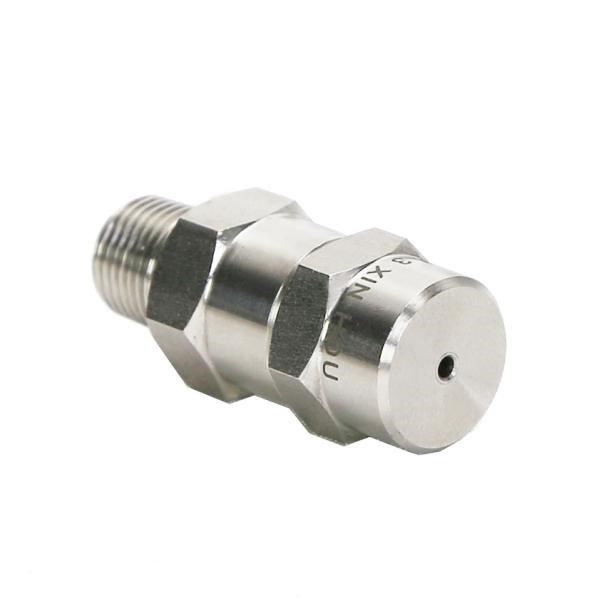

• GG Removable Cap Conejet Full Cone Nozzles produce solid cone-shaped spray pattern with round impact area
• Connections: 1/8” to 2” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
|
GG Removable Cap Cone jet Full Cone Nozzles |
Removable Cap Cone jet Full Cone Nozzles |
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
XINHOU specializes in the business of Full Cone Nozzles. Located in shanghai. we enjoy convenient access to major transportation networks. All our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
Description
|
Model |
GG |
|
Spray pattern |
Full cone |
|
Features |
The upper and lower parts are removable |
Parameter
|
Thread Size |
Flow Code |
Orifice Dia. (mm) |
Max free Passage Orifice Dia(mm) |
Flow rate ( L/min) |
– |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.5 bar |
0.7 bar |
1.5 bar |
2 bar |
3 bar |
4 bar |
5 bar |
6 bar |
7 bar |
10 bar |
1.5 bar |
||||
|
1/8” |
1 |
0.79 |
0.64 |
– |
0.38 |
0.54 |
0.62 |
0.74 |
0.85 |
0.94 |
1 |
1.1 |
1.3 |
58° |
|
1.5 |
1.2 |
0.64 |
0.49 |
0.57 |
0.81 |
0.93 |
1.1 |
1.3 |
1.4 |
1.5 |
1.7 |
1.9 |
65° |
|
|
2 |
1.2 |
1 |
0.65 |
0.76 |
1.1 |
1.2 |
1.5 |
1.7 |
1.9 |
2 |
2.2 |
2.6 |
50° |
|
|
3 |
1.5 |
1 |
0.98 |
1.1 |
1.6 |
1.9 |
2.2 |
2.5 |
2.8 |
3.1 |
3.1 |
3.9 |
65° |
|
|
3.5 |
1.6 |
1.3 |
1.1 |
1.3 |
1.9 |
2.2 |
2.6 |
3 |
3.3 |
3.6 |
3.9 |
4.5 |
50° |
|
|
3.9 |
2 |
1 |
1.3 |
1.5 |
2.1 |
2.4 |
2.9 |
3.3 |
3.7 |
4 |
4.3 |
5.1 |
84° |
|
|
5 |
2 |
1.3 |
1.6 |
1.9 |
2.7 |
3.1 |
3.7 |
4.2 |
4.7 |
5.1 |
5.5 |
6.5 |
65° |
|
|
6.1 |
2.3 |
1.3 |
2 |
2.3 |
3.3 |
3.8 |
4.5 |
5.2 |
5.7 |
6.2 |
6.7 |
7.9 |
74° |
|
|
1/4” |
6.5 |
2.38 |
1.6 |
2.1 |
2.5 |
3.5 |
4 |
4.8 |
5.5 |
6.1 |
6.7 |
7.1 |
8.4 |
50° |
|
10 |
3.18 |
1.6 |
3.3 |
3.8 |
5.4 |
6.2 |
7.4 |
8.5 |
9.4 |
10.2 |
11 |
13 |
67° |
|
|
12.5 |
3.2 |
1.6 |
4.1 |
4.8 |
6.8 |
7.7 |
9.3 |
10.6 |
11.8 |
12.8 |
13.7 |
16.2 |
74° |
|
|
9.5 |
2.6 |
2.4 |
3.1 |
3.6 |
5.1 |
5.9 |
7.1 |
8.1 |
8.9 |
9.7 |
10.4 |
12.3 |
50° |
|
|
15 |
3.6 |
2.4 |
4.9 |
5.7 |
8.1 |
9.3 |
11.2 |
12.7 |
14.1 |
15.4 |
16.5 |
19.4 |
67° |
|
|
3/8” |
20 |
4 |
2.8 |
6.5 |
7.6 |
10.8 |
12.4 |
14.9 |
17 |
18.8 |
20 |
22 |
26 |
80° |
|
22 |
4.5 |
2.8 |
7.2 |
8.4 |
11.9 |
13.6 |
16.4 |
18.7 |
21 |
23 |
24 |
28 |
90° |
|
|
16 |
3.5 |
3.2 |
5.2 |
6.1 |
8.7 |
9.9 |
11.9 |
13.6 |
15.1 |
16.4 |
17.6 |
21 |
50° |
|
|
25 |
4.6 |
3.2 |
8.2 |
9.5 |
13.5 |
15.4 |
18.6 |
21 |
24 |
26 |
27 |
32 |
67° |
|
|
1/2” |
32 |
5.2 |
3.6 |
10.4 |
12.2 |
17.3 |
19.8 |
24 |
27 |
30 |
33 |
35 |
41 |
75° |
|
40 |
6.2 |
3.6 |
13.1 |
15.2 |
22 |
25 |
30 |
34 |
38 |
41 |
44 |
52 |
91° |
|
|
50 |
6.7 |
4 |
16.3 |
19.1 |
27 |
31 |
37 |
42 |
47 |
51 |
55 |
65 |
94° |
|
|
3/4” |
2.5 |
4.9 |
4.4 |
9.6 |
11.2 |
15.9 |
18.2 |
22 |
25 |
28 |
30 |
32 |
38 |
50° |
|
4 |
6.4 |
4.4 |
15.4 |
18 |
26 |
29 |
35 |
40 |
44 |
48 |
52 |
61 |
70° |
|
|
7 |
9.5 |
5.2 |
27 |
31 |
45 |
51 |
61 |
70 |
78 |
84 |
91 |
107 |
92° |
|
|
1” |
4.2 |
6 |
5.6 |
16.2 |
18.9 |
27 |
31 |
37 |
42 |
47 |
51 |
54 |
64 |
50° |
|
7 |
8.3 |
5.6 |
27 |
31 |
45 |
51 |
61 |
70 |
78 |
84 |
91 |
107 |
68° |
|
|
8 |
9.5 |
5.6 |
31 |
36 |
51 |
58 |
70 |
80 |
89 |
91 |
104 |
122 |
81° |
|
|
10 |
11.9 |
5.6 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
90° |
|
|
1 1/4” |
12 |
11.9 |
6.4 |
46 |
54 |
77 |
87 |
105 |
120 |
133 |
145 |
155 |
183 |
92° |
|
6 |
7.4 |
6.4 |
23 |
27 |
38 |
44 |
53 |
60 |
67 |
72 |
78 |
92 |
50° |
|
|
10 |
9.6 |
6.4 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
67° |
|
|
12 |
10.7 |
6.4 |
46 |
54 |
77 |
87 |
105 |
120 |
133 |
145 |
155 |
183 |
70° |
|
|
14 |
12.3 |
6.4 |
54 |
63 |
89 |
102 |
123 |
140 |
155 |
169 |
181 |
215 |
80° |
|
|
1 1/2” |
20 |
15.1 |
7.9 |
77 |
90 |
128 |
146 |
175 |
200 |
220 |
240 |
260 |
305 |
93° |
|
10 |
9.5 |
8.7 |
38 |
45 |
64 |
73 |
88 |
100 |
111 |
121 |
130 |
153 |
50° |
|
|
16 |
12.7 |
8.7 |
62 |
72 |
102 |
116 |
140 |
160 |
178 |
193 |
210 |
245 |
74° |
|
|
20 |
14.3 |
8.7 |
77 |
90 |
128 |
146 |
175 |
200 |
220 |
240 |
260 |
305 |
76° |
|
|
30 |
18.3 |
10.3 |
115 |
135 |
191 |
220 |
265 |
300 |
330 |
360 |
390 |
460 |
94° |
|
|
2” |
17 |
12.7 |
11.1 |
65 |
76 |
108 |
124 |
149 |
170 |
189 |
205 |
220 |
260 |
50° |
|
30 |
17.3 |
11.1 |
115 |
135 |
191 |
220 |
265 |
300 |
330 |
360 |
390 |
460 |
74° |
|
|
35 |
19.2 |
11.1 |
135 |
157 |
225 |
255 |
310 |
355 |
390 |
425 |
455 |
540 |
77° |
|
|
40 |
21 |
11.1 |
154 |
180 |
255 |
295 |
350 |
400 |
445 |
485 |
520 |
610 |
80° |
|
|
50 |
23.8 |
14.3 |
192 |
225 |
320 |
365 |
440 |
500 |
560 |
610 |
650 |
770 |
85° |
|
|
60 |
28.6 |
14.3 |
230 |
270 |
385 |
440 |
530 |
600 |
670 |
730 |
780 |
920 |
100° |
|
Ordering information
|
GG |
1/4’’ |
SS |
5 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
Application pictures
|
Dust control |
Roll cooling |
