Features
Full cone nozzles achieve an extraordinarily uniform distribution of liquid over the whole circular impact area. Full cone spray nozzles are free of swirl inserts and therefore particularly non-clogging. Full cone nozzles produce medium to large size drops forming a solid cone shaped spray pattern with a round impact area. The unique vane design features large flow passages to provide superior control and uniform distribution. The full cone spray pattern is ideal for washing, rinsing, cooling, dust control and fire protection.
What are the different types of full cone nozzles?

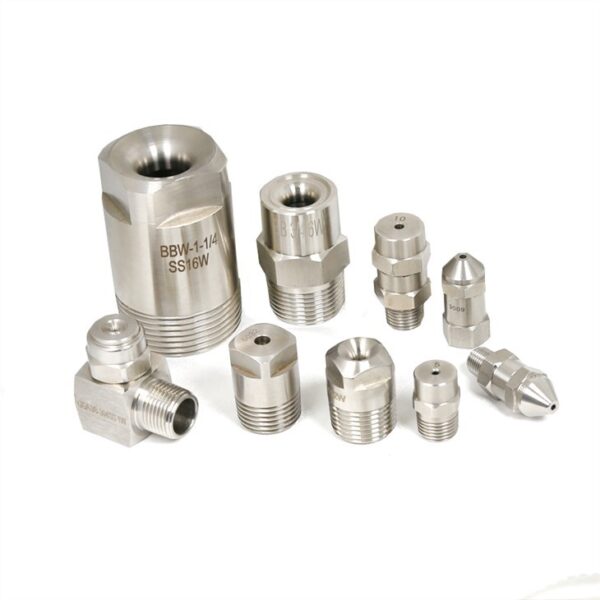

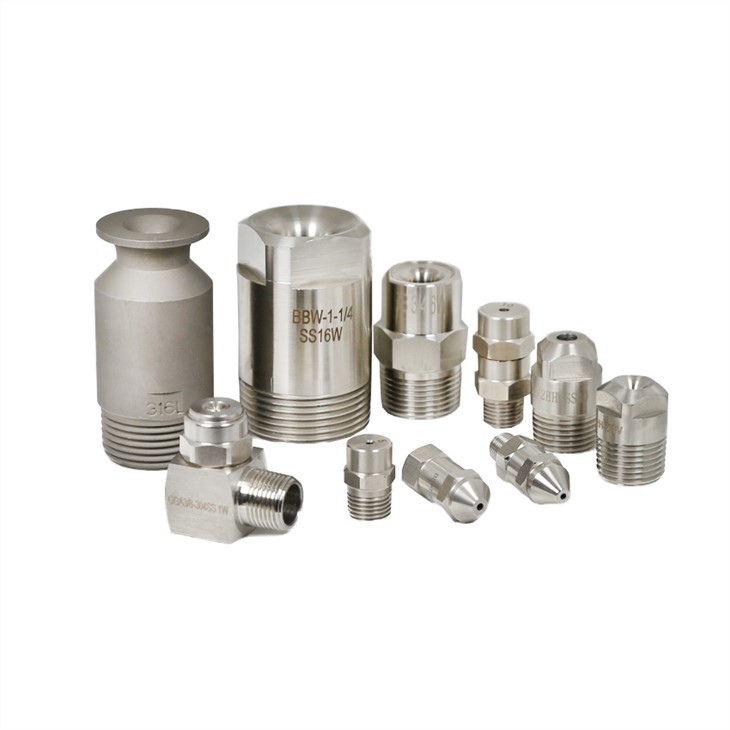

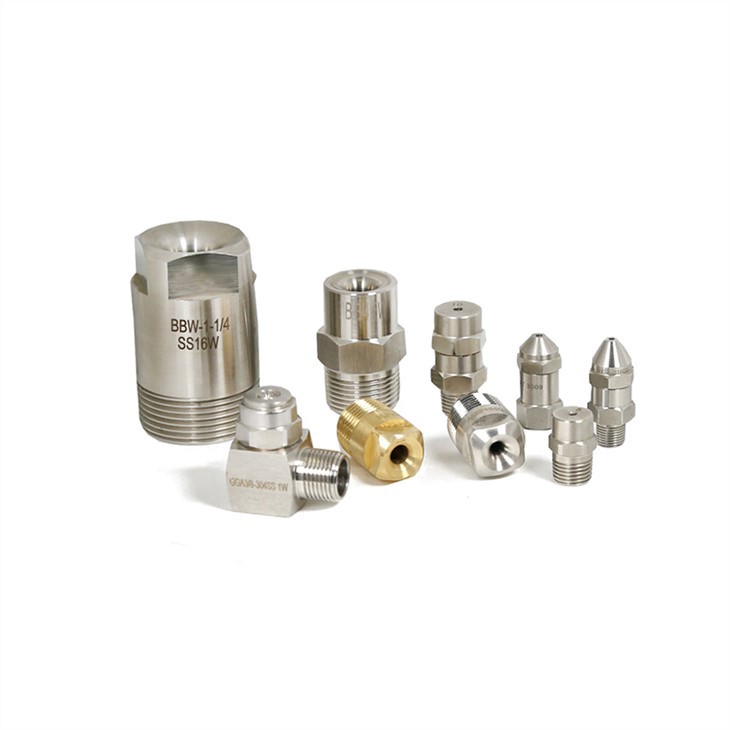

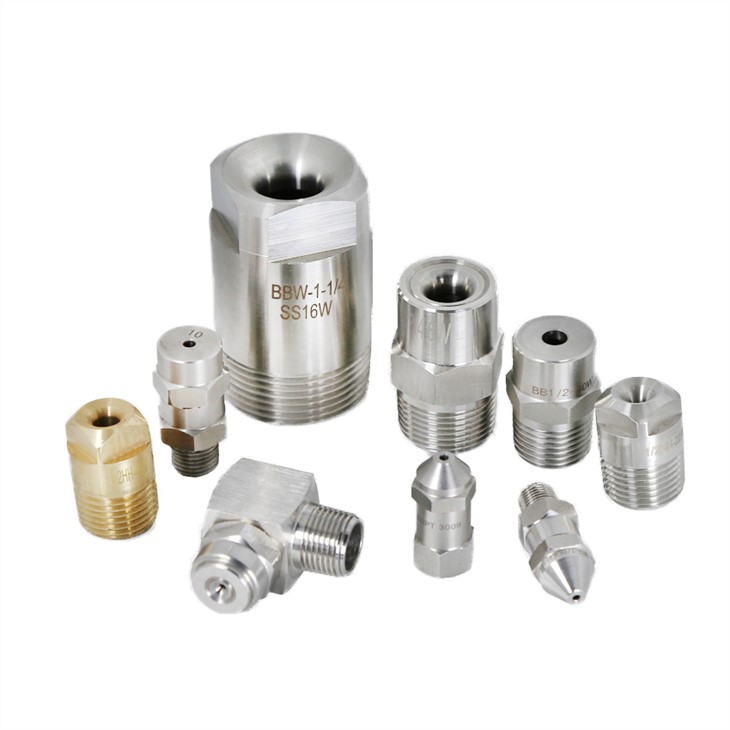

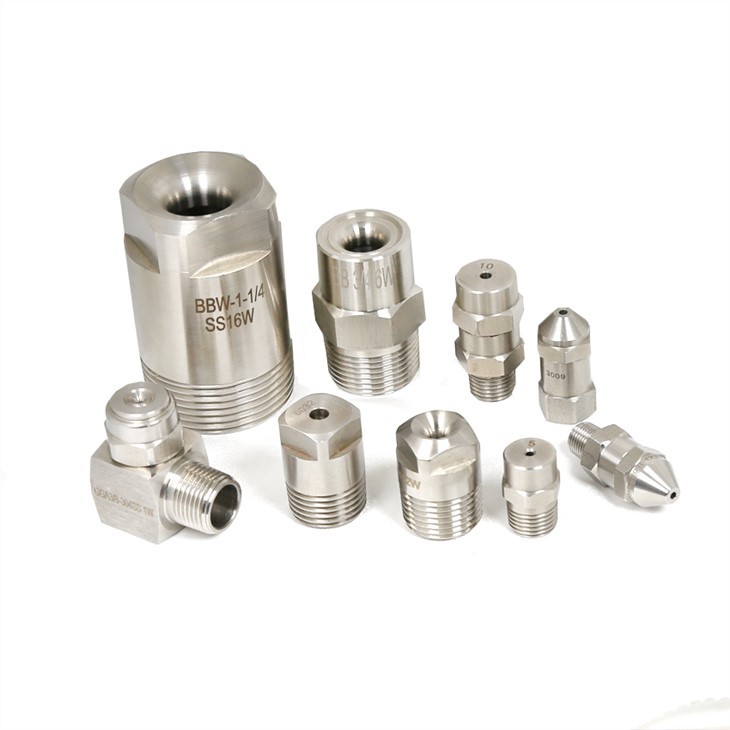

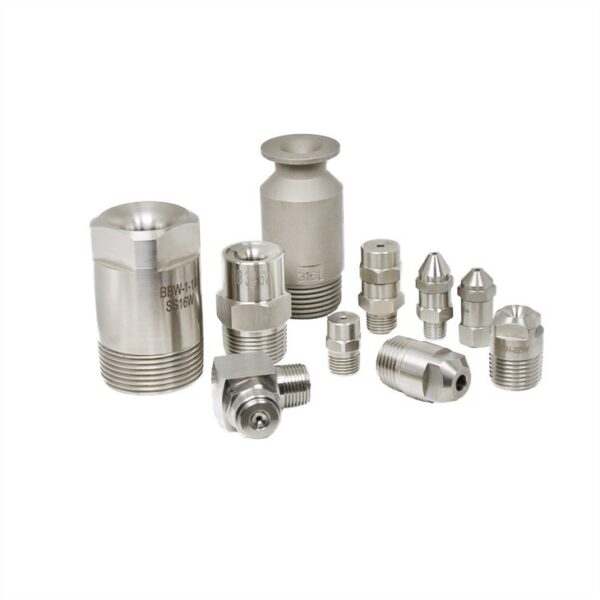

Stainless Steel Full Cone Nozzles
Standard fulljet nozzle can generate full cone spray. The spray area is round. Spray angle is 43°-106°.Fulljet nozzle can spray uniformly, droplets are from medium to big.The vane of H series standard nozzle is fixed by positioning screw, which is easy to be detached. HH series standard nozzles’s vane is not detachable.
90 120 degrees Wide-angle Full Cone Nozzles
Wide angle full cone nozzles produce large droplets that are distributed uniformly in a full cone pattern. Droplets are larger than with other tip styles of equal capacity at similar pressures.
GG Removable Cap Conejet Full Cone Nozzles
G and GG series have detachable cap and vane, can match both headers and multibranch pipe.This design makes it possible that the cap and vane can be detached from nozzle to be maintained and cleaned, instead of nozzle body.
15 30 Degrees Narrow angle Full Cone Nozzles
The feature about square narrow angle spray nozzle is that it generates full cone spray, the spraying area is round. Narrow angle series generate well distributed and coarser particles spray,15°series have more of this feature.
Square Pattern Water Spray Full Cone Nozzles
The feature about square spray nozzle is that it generates full cone spray, the spraying area is square. Spray angle is 40°-105°.Full jet square spray nozzle can spray uniformly, droplets are from medium to big under big range of pressure and flow rate
SJV Series Solid Jet Full Cone Nozzles
SJV Series Solid Jet Full Cone Nozzles spray pattern with round impact area, it is assembled or combined nozzle suit by cap, body and spray tip. Its unique vane design ensures uniform spray distribution.
Right Angle Tangential-flow Full Cone Nozzles
It is corner type spray design, the spray shape is round full cone. The spray effect is same as universal full cone nozzle. It is veru suitable for sprinker pipe with side hole.Its spray angle have standard angle and wide angle.
Large Flow SMP Fulljet Full Cone Nozzles
The unique design avoid the usual blocking problem quite a lot under bad working condition,it especially fits for spraying seriflux which contains much grain impurity, and conveys dreggy liquid easily.

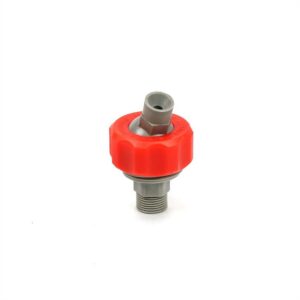

155 adjustable threaded ball plastic full cone Nozzles
Fot plastic 155 Adjustable Full Cone Spray Nozzles ,its material is glass fiber reinforced PP( Polypropylene) with corrosion and wear resistance.
ZSTWB High Speed Centrifugal Full Cone Nozzles
The series of ZSTWB High Speed Centrifugal Full Cone Nozzles breaks down a certain pressure of water into two streams, one of which is a rotating water stream that moves along the inner wall and has a centrifugal velocity. The other is a straight water flow with axial velocity, two water streams meet at the nozzle of the nozzle, and is sprayed at the synthesis speed to form atomization.
Demist Blue Plastic Full Cone Nozzle
The uniqueness of the fan nozzle made from brass The Demist Blue Plastic Full Cone Nozzles are compact in design, allowing liquid to reach maximum flow on a given size of pipe, and with a smooth passage design, minimizes nozzle clogging. This nozzle can be installed and updated on most piping systems. the high flexibility for machining .It is suitable for precision processing
Description
|
Spray pattern |
Full cone |
|
Thread size |
1/8’’-2’’ |
|
Material |
Stainless steel; Brass; Copper; Plastic |
|
Spray angle |
15°-120° |
Application
1 Washing , rinsing,bleaching
2 Coke quenching and cooling
3 Control dust, flue gas dust removal
4 Waste gas washing and cooling
5 Disinfection , Sterilization
6 Defoaming
7 The generation and elimianation of the droplets in the process of chemical reaction
8 Air and flue gas washing
9 Scrubbing
10 Fire-extinguishing ,Fireproof, fire protection
11 Cooling and cleaning pipe through spraying the inner side of pipe
12 Quick cooling of high-temperature flue gas
13 Wet desulphurization
14 Leaching tower
15 Chemical tower spraying, Cooling water and fractionating tower spraying
Why choose Xinhou’s full cone nozzles?
Shanghai Xinhou was established in 2004, and has nearly 20 years of experience in producing and selling nozzles. In the nozzle industry, we can say without modesty that we are the top five in the industry. Full cone spray nozzles represent the second most common nozzle type in use today. Available in several materials and spray angles, the pattern generated by this type of nozzle swirls the fluid into a full “cone” pattern. Spray nozzle design and precision machining play an important role on the stability of the spray pattern, flow distribution and the spray angles’ integrity at various pressures.
Fulljet nozzle can spray uniformly, droplets are from medium to big. This well distributed spray benefits from distinct vane design, big and clear channel, excellent control feature.Full cone nozzle made as precise dimension, which assure accurate and reliable performance. Shanghai Xinhou Company in ensuring the spray effect of each full cone nozzle and its high quality standards, for the full jet cone nozzle appearance is also done to the extreme. Please do not hesitate to contact us if you are interested in solid cone nozzles
Full Cone Nozzles: The Helpful Guide for Importers
What is a full cone nozzle?
The most commonly used nozzle type in industry is the Full Cone nozzle. These nozzles use a specially shaped vane placed at the nozzle inlet to give a rotational speed to the fluid flowing through the nozzle. Because of the rotational speed of the fluid, water exiting the nozzle orifice is subjected to centrifugal force and opens up in the shape of a full cone. A low flow rate makes these nozzles good for distributing fluids, cooling, washing, and rinsing.
Full cone spray nozzles are commonly used for general washing and rinsing applications that do not require high impact. Narrower spray angle nozzles can be used for cleaning or chemical injection and wider spray angle nozzles tend to be used for dust suppression, fire suppression, coating, general washing, rinsing and other applications. The droplet sizes generated by full cone nozzles range from fine to coarse. Pressure and flow rate and to a lesser degree, spray angle will affect droplet size. If wide surface areas need to be covered or the target is stationary, full cone nozzles may be more appropriate.
Perhaps you would like to learn more about full cone nozzles?
What is a solid cone spray?
The type of spray created by our full cone nozzles is obtained through a specific vortex with a wide passage placed inside the nozzles themselves. This range of nozzles ensures uniform distribution of the drops over the entire covered section.
What is the effect of the vane in a full cone nozzle?
The design of the vane creates a high speed rotational action inside the nozzle creating the full cone spray pattern.
Compared with the flat fan nozzle, what are the characteristics of the full cone nozzle?
The main feature of the fan nozzle is its high impact force. However, full cone nozzles can spray uniformly, droplets are from medium to big under big range of pressure and flow rate.This kind of nozzle is suitable to be installed at the area that needs to be completely covered by spray.
