Features
Features
• FD High Pressure Fog Misting Nozzles thread size can be made as 3/16″, 10/24″, 12/24″
• FD High Pressure Fog Misting Nozzles can be used indoor and outdoor.
• Not easy become clogging, no leakage, good wear resistance, uniform spray.
• This series of nozzles does not need air supply.
• The system is simple; the spray mist is fine, full atomization, energy saving, • Stainless steel micro-nozzle plate is processed by advanced forging process and has strong durability. It is 2.5 times longer than the same type of nozzle.
|

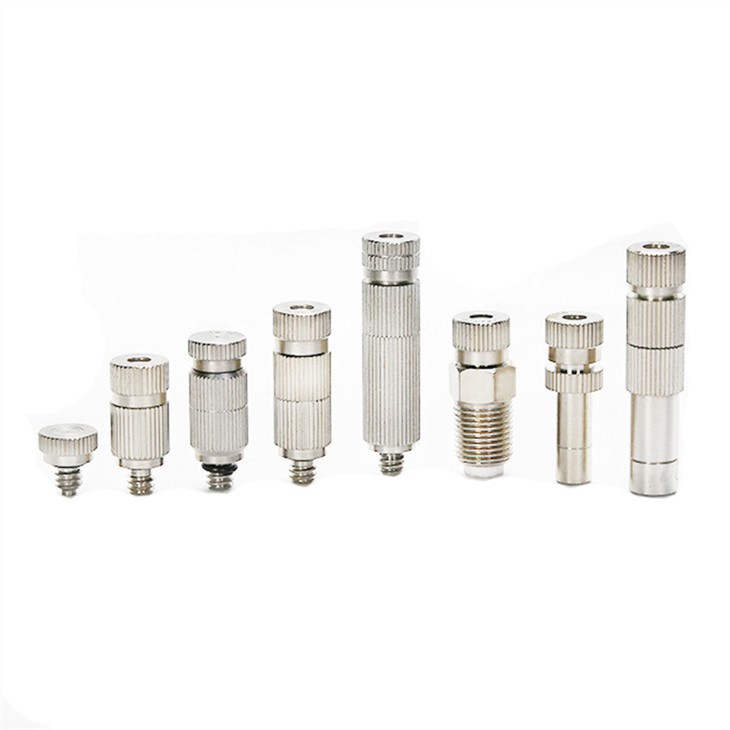

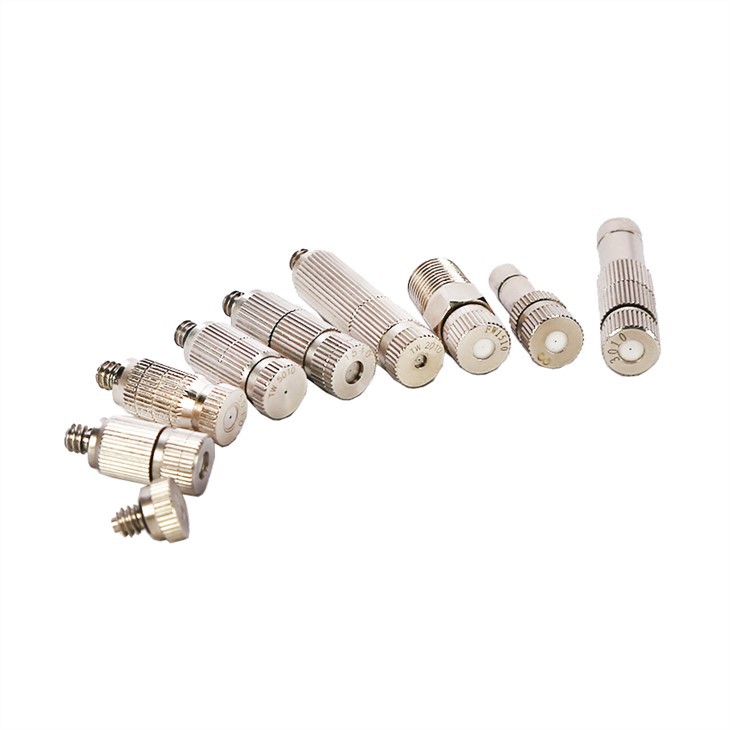

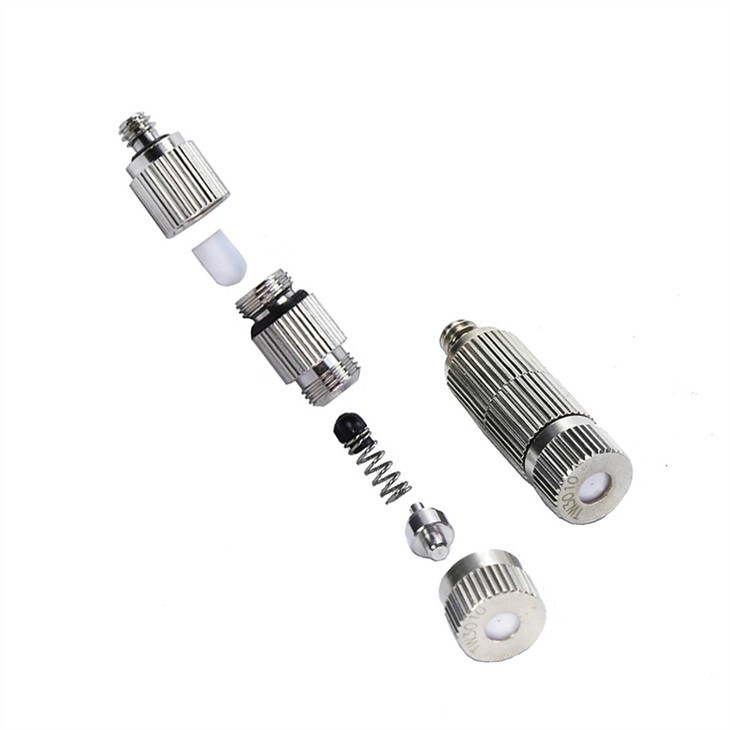

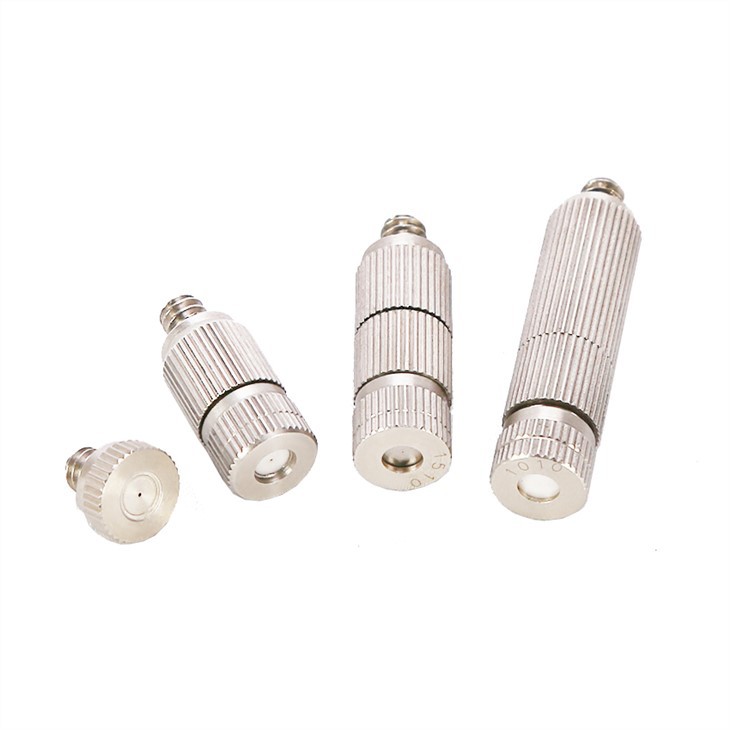

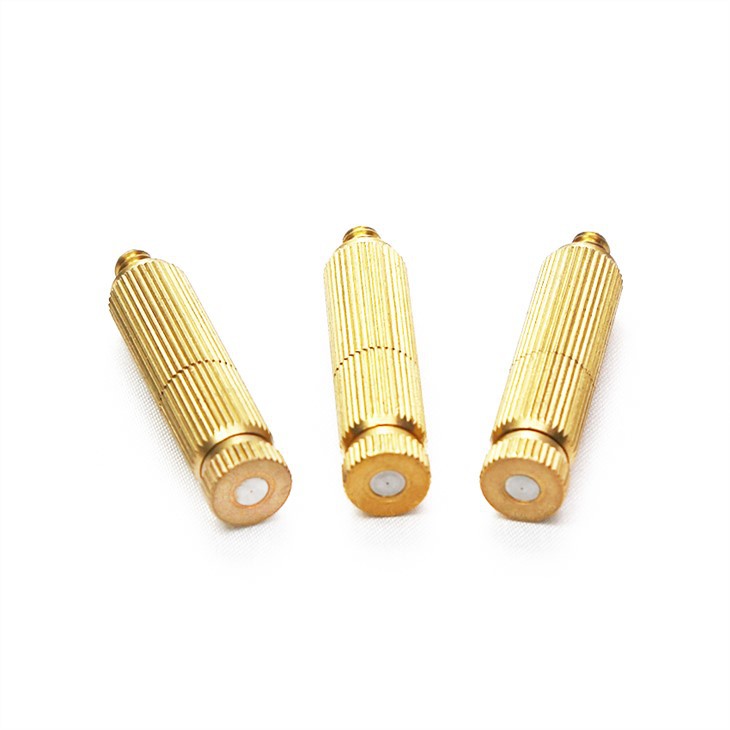

FD High Pressure Fog Misting Nozzles |
High Pressure Fog Misting Nozzles |
General Application
• Wetting and descaling
• Humidification
• Chemical treatment or spraying
• Liquid spraying
• Garden park or agricultural humidification or cooling
• Tablet coating
• Flue gas evaporating cooling
• Sterilization
• Fruit spray Wax
• Wetting and cooling of textile mills
• Plant humidification
• Salt spray test
• Artificial fog
Description
|
Model |
FD ( High pressure) 3/16”, 10/24 ”, 12/24” FD ( Low pressure) Quick connect (6mm, 8mm ) |
|
Inlet connection |
1/8”; 3/16”; 10/24”; 12/24” |
|
Orifice dia. |
0.8mm/0.5mm/0.4mm/0.3mm/0.2mm/0.15mm/0.1mm |
|
Water pressure |
100bar/84bar/70bar/50bar/35bar/18bar/15bar/10bar/7bar/4bar/3bar |
Parameter
|
Thread Size |
Style NO. |
Orifice Dia. |
Flow rate(L/min) |
|||||||||||
|
mm |
3bar |
4bar |
7bar |
10bar |
15bar |
18bar |
35bar |
50bar |
70bar |
80bar |
100bar |
120bar |
||
|
– |
1010 |
0.1 |
– |
– |
– |
– |
– |
– |
0.015 |
0.02 |
0.03 |
0.04 |
0.05 |
0.06 |
|
1/8 |
1510 |
0.15 |
– |
– |
– |
– |
– |
0.012 |
0.022 |
0.03 |
0.05 |
0.06 |
0.07 |
0.08 |
|
3/16 |
2010 |
0.2 |
– |
– |
– |
– |
0.04 |
0.045 |
0.053 |
0.091 |
0.095 |
0.098 |
0.10 |
0.114 |
|
10/24 |
3010 |
0.3 |
– |
– |
– |
0.06 |
0.07 |
0.08 |
0.092 |
0.13 |
0.15 |
0.16 |
0.17 |
0.18 |
|
12/24 |
4010 |
0.4 |
0.04 | 0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.12 |
0.17 |
0.28 |
0.38 |
0.39 |
0.41 |
|
– |
5010 |
0.5 |
0.05 |
0.06 |
0.08 |
0.09 |
0.11 |
0.12 |
0.135 |
0.2 |
0.30 |
0.39 |
0.40 |
0.42 |
|
– |
6010 |
0.6 |
0.09 |
0.11 |
0.13 |
0.14 |
0.15 |
0.16 |
0.18 |
0.26 |
0.38 |
0.49 |
0.50 |
0.52 |
|
– |
7010 |
0.7 |
0.11 |
0.13 |
0.15 |
0.16 |
0.18 |
0.19 |
0.24 |
0.34 |
0.4 |
0.5 |
0.51 |
0.54 |
| 8010 | 0.8 | 0.14 | 0.16 | 0.18 | 0.2 | 0.22 | 0.26 | 0.30 | 0.4 | 0.48 | 0.59 | 0.60 | 0.62 | |
Application pictures
|
Humidifying |
Cooling |
