Features
Brass flat fan nozzles, mostly means common standard fan nozzles. Since its material is brass, it has high strength and good durability. As flat nozzles, it can produce flat fan shape and uniform spraying drop.

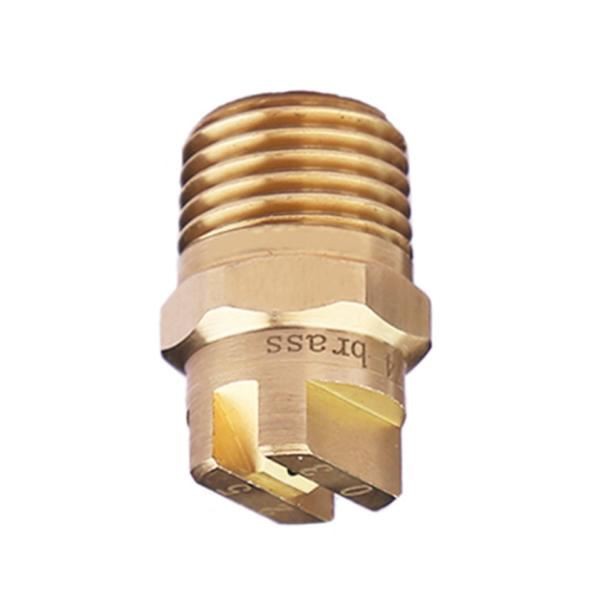

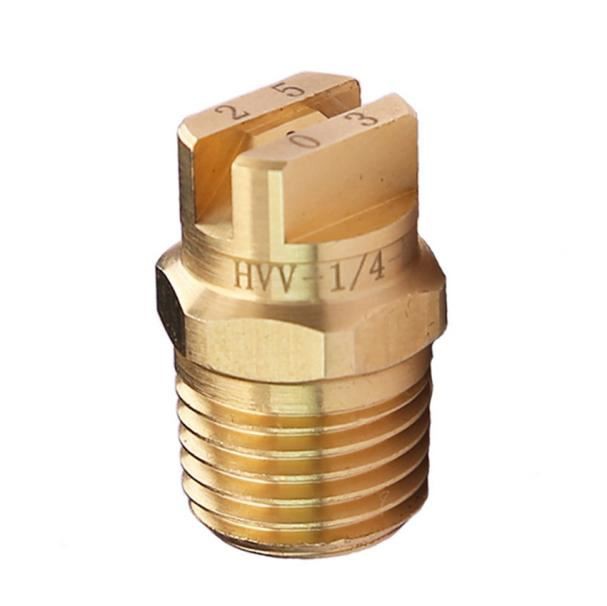

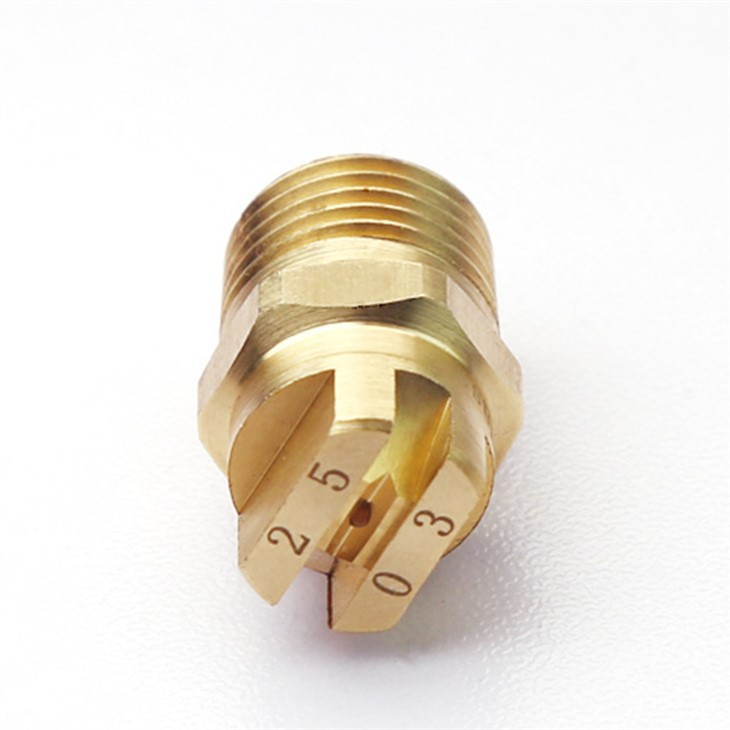

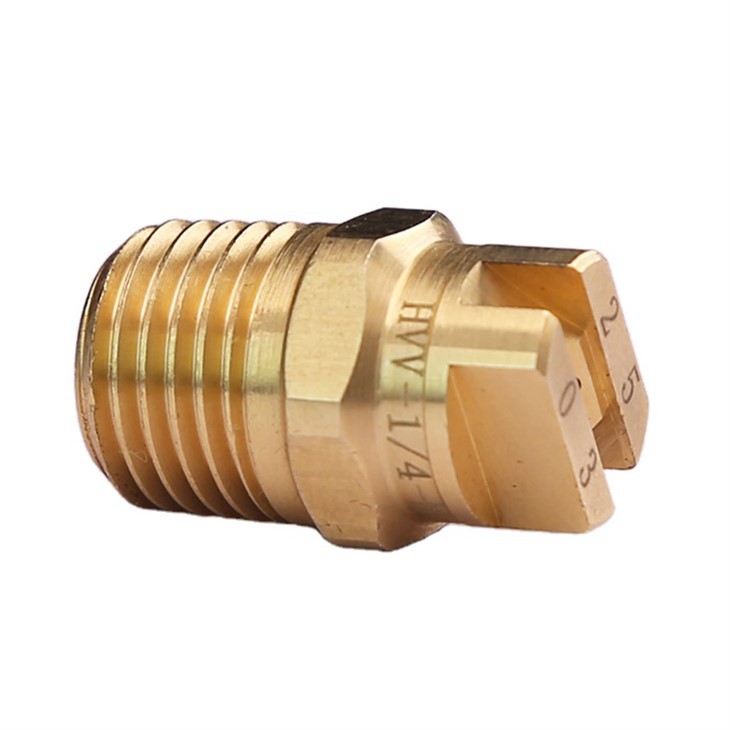

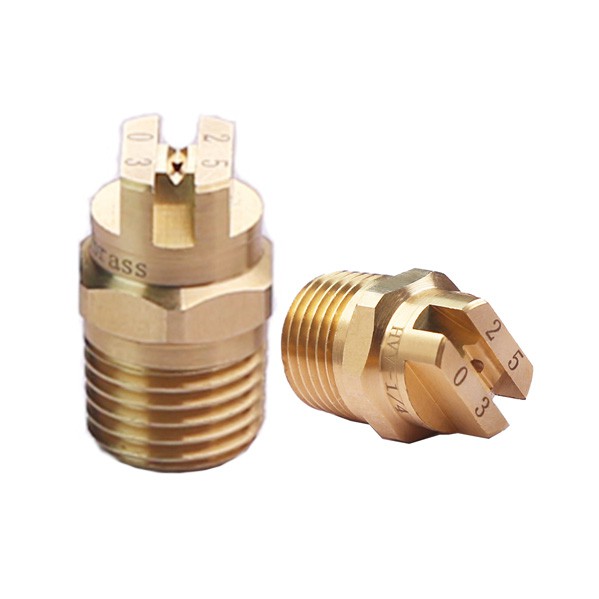

Brass Wash jet Flat Fan Spray Nozzles
Brass Flat Fan Spray Nozzles
Description
|
Model |
H-VV; H-VVL; H -U; U |
|
Inlet connection |
1/8’’1/4’’ BSPT or NPT |
|
Spray pattern |
Flat Fan |
|
Spray angle |
110°/95°/80°/73°/65°/50°/40°/25°/15°/0° |
|
Application |
Air and gas purifier; Scourers; Liquid cleaner; Dust control; Fireproof |
|
Lead time |
1-2 days after payment |
|
Delivery |
DHL,FedEx,UPS,TNT,EMS |
|
Payment |
T/T,Western Union,Paypal,Credit Card,Ali pay,We chat pay |
Parameter
|
Spray Angle |
Flow Code |
Orifice Dia |
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
||||||||||
|
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
3 bar |
|||
|
0° 15° |
0.3 bar |
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
35bar |
Spray Angle (3bar) |
||
|
0017 |
0.28 |
|
|
0.05 |
0.06 |
0.07 |
0.08 |
0.09 |
0.1 |
0.12 |
0.17 |
0.23 |
|
|
|
0033 |
0.38 |
|
|
0.11 |
0.13 |
0.15 |
0.17 |
0.18 |
0.2 |
0.24 |
0.34 |
0.44 |
0° |
|
|
0050 |
0.46 |
|
0.11 |
0.16 |
0.2 |
0.23 |
0.25 |
0.28 |
0.3 |
0.36 |
0.51 |
0.67 |
||
|
0067 |
0.53 |
|
0.15 |
0.22 |
0.26 |
0.31 |
0.34 |
0.37 |
0.4 |
0.48 |
0.68 |
0.9 |
||
|
01 |
0.66 |
0.12 |
0.23 |
0.32 |
0.39 |
0.46 |
0.51 |
0.56 |
0.6 |
0.72 |
1.0 |
1.3 |
||
|
015 |
0.79 |
0.19 |
0.34 |
0.48 |
0.59 |
0.68 |
0.76 |
0.84 |
0.90 |
1.1 |
1.5 |
2.0 |
||
|
02 |
0.91 |
0.25 |
0.46 |
0.64 |
0.79 |
0.91 |
1.0 |
1.1 |
1.2 |
1.4 |
2 |
2.7 |
||
|
03 |
1.1 |
0.37 |
0.68 |
0.97 |
1.2 |
1.4 |
1.5 |
1.7 |
1.8 |
2.2 |
3.1 |
4.0 |
||
|
04 |
1.3 |
0.5 |
0.91 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
2.9 |
4.1 |
5.4 |
||
|
05 |
1.4 |
0.62 |
1.1 |
1.6 |
2.0 |
2.3 |
2.5 |
2.8 |
3 |
3.6 |
5.1 |
6.7 |
||
|
06 |
1.6 |
0.75 |
1.4 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
3.6 |
4.3 |
6.1 |
8.1 |
||
|
08 |
1.8 |
1.0 |
1.8 |
2.6 |
3.2 |
3.6 |
4.1 |
4.5 |
4.8 |
5.8 |
8.2 |
10.8 |
||
|
10 |
2.0 |
1.2 |
2.3 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
6.0 |
7.2 |
10.2 |
13.5 |
||
|
15 |
2.4 |
1.9 |
3.4 |
4.8 |
5.9 |
6.8 |
7.6 |
8.4 |
9.0 |
10.8 |
15.3 |
20 |
||
|
20 |
2.8 |
2.5 |
4.6 |
6.5 |
7.9 |
9.1 |
10.2 |
11.2 |
12.1 |
14.4 |
20 |
27 |
||
|
30 |
3.6 |
3.7 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
40 |
||
|
40 |
4.0 |
5.0 |
9.1 |
12.9 |
15.8 |
18.2 |
20.0 |
22 |
24 |
29 |
41 |
54 |
||
|
50 |
4.4 |
6.2 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
68 |
||
|
60 |
4.8 |
7.5 |
13.7 |
19.3 |
24 |
27 |
31 |
33 |
36 |
43 |
61 |
81 |
||
|
70 |
5.2 |
8.7 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
70 |
94 |
||
|
100 |
6.4 |
12.5 |
23 |
32 |
39 |
46 |
51 |
56 |
60.0 |
72 |
102 |
135 |
||
|
150 |
7.5 |
18.7 |
34 |
48 |
59 |
68 |
76 |
84 |
90.0 |
108 |
153 |
205 |
||
|
200 |
8.7 |
25 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
205 |
270 |
||
Ordering information
|
HU |
1/8‘’ |
– |
304SS |
9570 |
|
↓ |
↓ |
|
↓ |
↓ |
|
Nozzle Type |
connector Size |
|
Material |
Flow code |
General Application:
1) Cleaning
2) Rinsing
3) Coating
4) Washing
5) Pressure Washing
6) Surface Preparation
Dust Control
Car washing
•Our flexible management enable orders reach the production department quickly ,thus ensure fastest delivery.
•Generally plastic nozzles are available in stock ,so we can arrange immediate delivery for them.
•Due to the wide variety of specifications of metal nozzles, only some commonly used specifications are available from stock. Most of the specifications need to be customized. The delivery time is around 6 to 15 days.
