Features

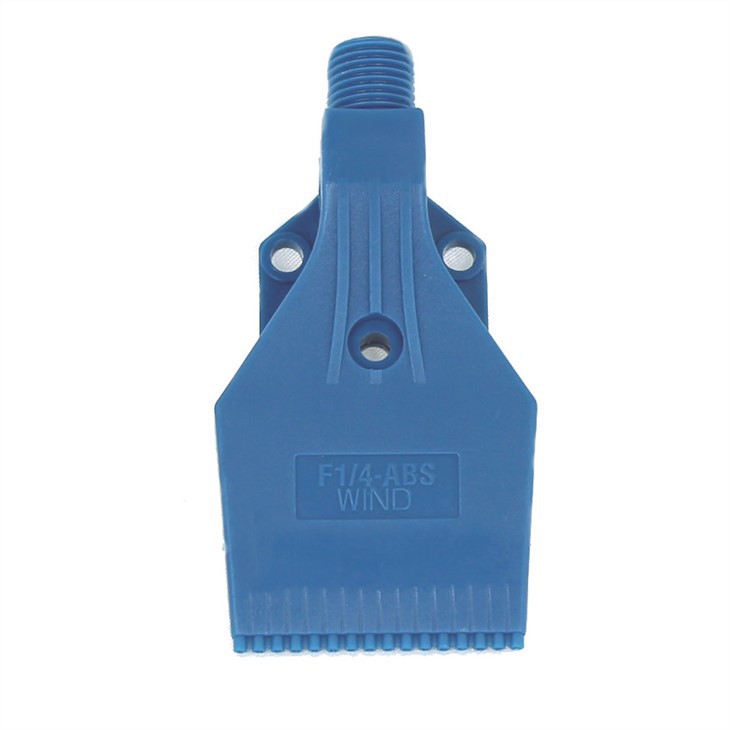

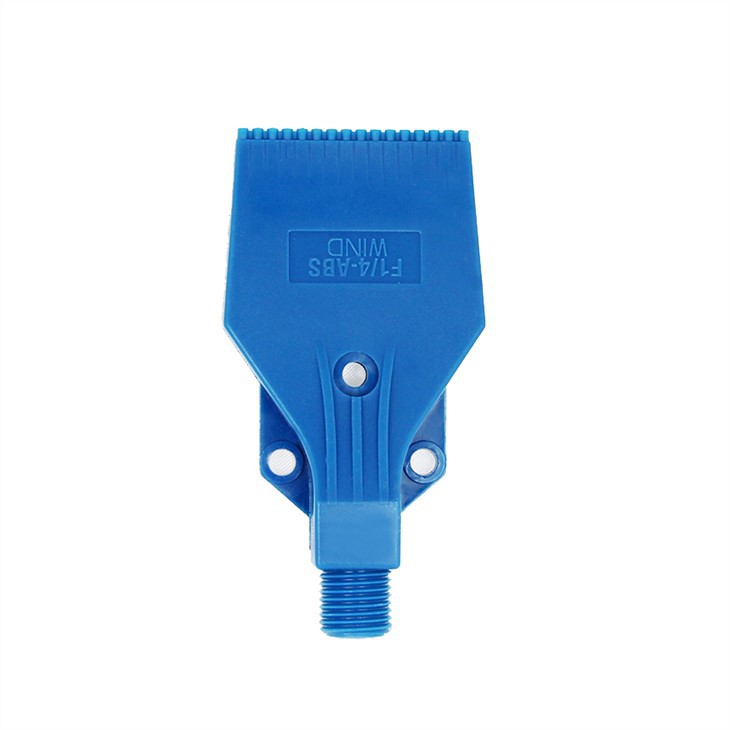

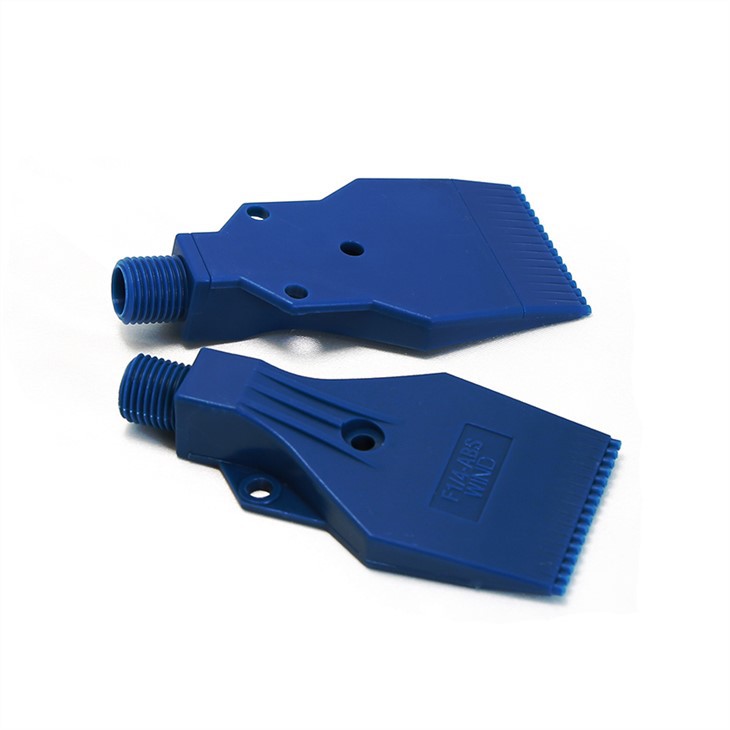

Blue Air Blow off ABS Wind Jet Air Nozzles have the following features:
• Only 1/4″ male thread size is available
• Using Blue Air Blow off ABS Wind Jet Air Nozzles can help reduce operating costs and noise, improve worker safety and provide more precise, repeatable drying and blow-off.
• Blue Air Blow off ABS Wind Jet Air Nozzles use 25% to 35% less air than open pipe with perceived noise reductions ranging from 28% to 60%
• Max pressure for Blue Air Blow off ABS Wind Jet Air Nozzles is 7 bar
• Max operating temperature is 77°C
General Application :
1) Applications where impact or a continuous stream of air is needed
2) Air recycling with existing compressed air lines
3) Drying
4) Cooling
5) Blow-off and moving materials
Description
|
Model |
FB 1/4 |
|
Material |
ABS |
|
Spray pattern |
Flat Fan |
|
Thread size |
1/4’’ |
|
Hole |
16 holes |
DIMENSIONS
|
Model No. |
Thread size |
Dimensions(mm) |
|
|
h |
d |
||
|
FB 1/4-ABS |
1/4 |
89 |
46 |
PERFORMANCE DATA
|
Series |
Orifice section |
Number of holes |
Air consumption at different wind speed |
||||||||
|
V=2m/s |
V=3m/s |
V=4m/s |
V=5m/s |
V=10m/s |
V=15m/s |
V=20m/s |
V=25m/s |
V=30m/s |
|||
|
FB 1/4-ABS |
1.256 * 10-5 ㎡ |
16 |
0.9 |
1.36 |
1.8 |
2.26 |
4.52 |
6.78 |
9.0 |
11.3 |
13.6 |
Ordering information
|
FB |
1/4’’ |
ABS |
|
↓ |
↓ |
↓ |
|
Model No. |
Thread size Size |
Material |
