Features

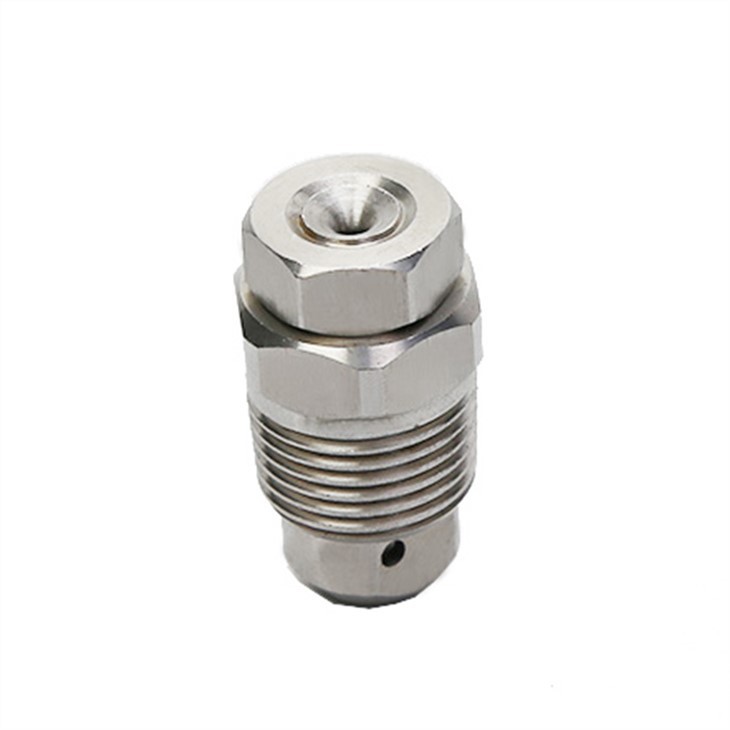

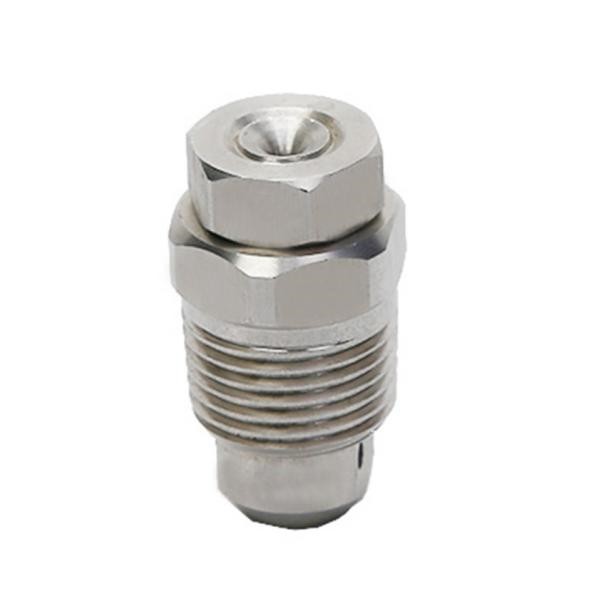

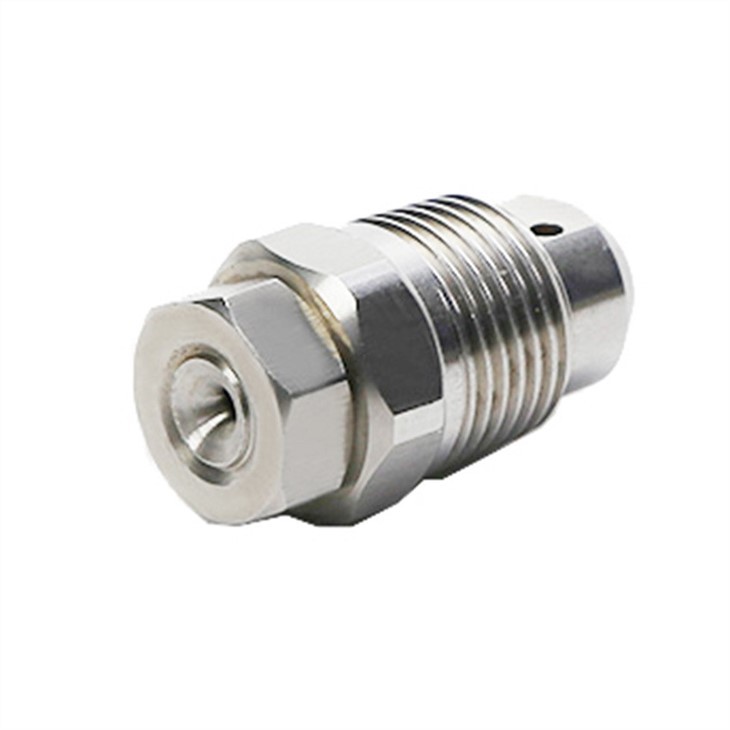

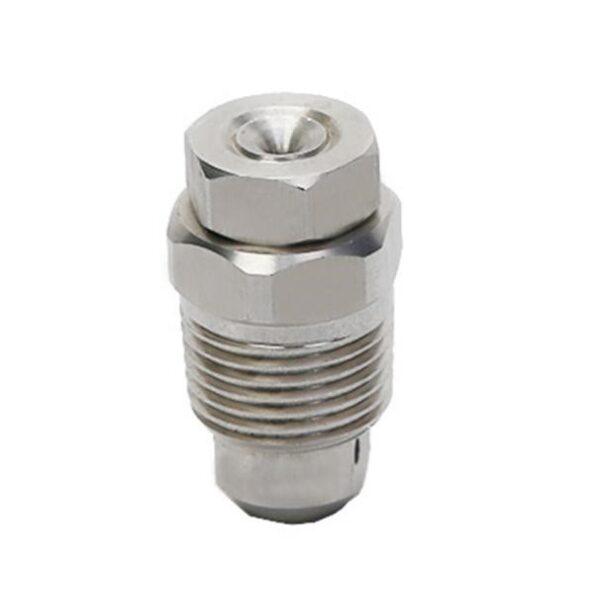

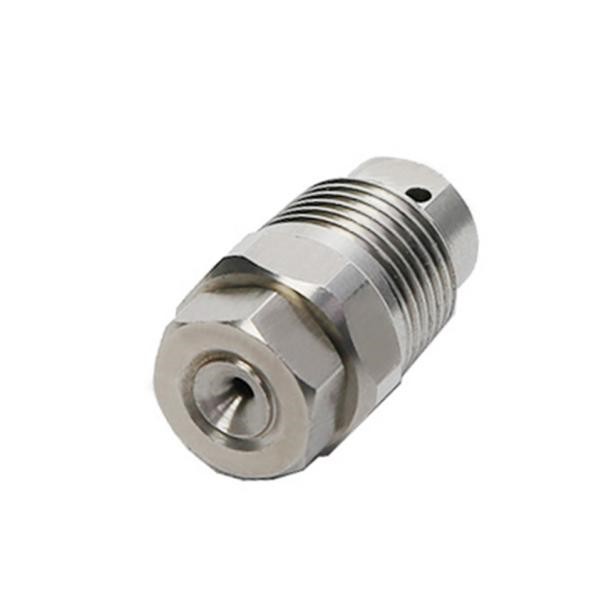

BD Straight Line Hollow Cone Spray Nozzles
Features
• Simple structure with caps can be removable and changeable.
• BD Straight Line Hollow Cone Spray Nozzles produce fine and uniform spraying with a hollow circle pattern
• Spray angles include standard angle and wide angle
• Connections: 3/8″ , 1/2”
Straight Line Hollow Cone Spray Nozzles
BD Straight Line Hollow Cone Spray Nozzles
General Application
1) Cooling
2) Dust suppression
3) Chemical treatment
4) Washing or cleaning
Description
|
Model |
BD；BD-W |
|
Inlet connection |
3/8”; 1/2’’; 3/4’’; 1 1/2’’ |
|
Spray pattern |
Hollow cone |
|
Spray angle |
119°/113°/112°/111°/110°/109°/104°/103°/102°/101°/100°/98°/97°/92°/90°/88°/86°/84°/83°/82°/79°/77°/76°/75°/74°/73°/72°/70°/69°/68°/67°/65°/64°/63°/60° |
|
Application |
Defoaming; Cleaning; Coolung; Smoke washing; Spray tower; Humidifying; Dedusting |
Parameter
● Standard Angle
|
Thread size |
Flow code |
Inlet orifice Dia |
Outlet orifice Dia |
Flow Rate ( l/min) |
Spray angle |
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
|||||||||
|
|
|
|
|
0.5bar |
0.7bar |
1bar |
1.5bar |
2bar |
3bar |
4bar |
5bar |
6bar |
1.5bar |
6bar |
|
3/8 |
2 |
2.4 |
2.0 |
|
0.76 |
0.91 |
1.1 |
1.3 |
1.6 |
1.8 |
2.0 |
2.2 |
60° |
70° |
|
|
3 |
2.4 |
2.4 |
0.96 |
1.1 |
1.4 |
1.7 |
1.9 |
2.4 |
2.7 |
3.1 |
3.3 |
64° |
77° |
|
|
5 |
2.8 |
3.2 |
1.6 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
67° |
76° |
|
|
8 |
4.0 |
4.0 |
2.6 |
3.1 |
3.6 |
4.5 |
5.2 |
6.3 |
7.3 |
8.2 |
8.9 |
65° |
70° |
|
|
10 |
4.0 |
4.4 |
3.2 |
3.8 |
4.6 |
5.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
65° |
72° |
|
|
20-10 |
4.0 |
4.4 |
4.5 |
5.3 |
6.4 |
7.8 |
9.0 |
11.1 |
12.8 |
14.3 |
15.6 |
65° |
67° |
|
1/2 |
5 |
3.2 |
3.6 |
1.6 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
73° |
79° |
|
|
8 |
4.0 |
4.0 |
2.6 |
3.1 |
3.6 |
4.5 |
5.2 |
6.3 |
7.3 |
8.2 |
8.9 |
69° |
73° |
|
|
10 |
4.4 |
4.4 |
3.2 |
3.8 |
4.6 |
5.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
70° |
74° |
|
|
15 |
4.4 |
5.2 |
4.8 |
5.7 |
6.8 |
8.4 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
67° |
70° |
|
|
20 |
4.8 |
6.0 |
6.4 |
7.6 |
9.1 |
11.2 |
12.9 |
15.8 |
18.2 |
20 |
22 |
65° |
69° |
|
|
25 |
5.2 |
7.1 |
8.1 |
9.5 |
11.4 |
14.0 |
16.1 |
19.7 |
23 |
25 |
28 |
63° |
68° |
|
3/4 |
5 |
3.6 |
3.2 |
1.6 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.6 |
5.1 |
5.6 |
73° |
79° |
|
|
8 |
4.4 |
4.0 |
2.6 |
3.1 |
3.6 |
4.5 |
5.2 |
6.3 |
7.3 |
8.2 |
8.9 |
70° |
74° |
|
|
10 |
5.2 |
4.4 |
3.2 |
3.8 |
4.6 |
5.6 |
6.4 |
7.9 |
9.1 |
10.2 |
11.2 |
72° |
75° |
|
|
15 |
6.4 |
5.6 |
4.8 |
5.7 |
6.8 |
8.4 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
72° |
74° |
|
|
20 |
7.1 |
6.4 |
6.4 |
7.6 |
9.1 |
11.2 |
12.9 |
15.8 |
18.2 |
20 |
22 |
70° |
74° |
|
|
25 |
7.1 |
7.5 |
8.1 |
9.5 |
11.4 |
14.0 |
16.1 |
19.7 |
23 |
25 |
28 |
70° |
74° |
|
|
50-50.3 |
7.1 |
9.5 |
16.1 |
19.1 |
23 |
28 |
32 |
39 |
46 |
51 |
56 |
72° |
73° |
|
1-1/2 |
40 |
9.5 |
7.9 |
12.9 |
15.3 |
18.2 |
22 |
26 |
32 |
36 |
41 |
45 |
73° |
74° |
|
|
50 |
9.5 |
9.5 |
16.1 |
19.1 |
23 |
28 |
32 |
39 |
46 |
51 |
56 |
75° |
77° |
|
|
60 |
9.5 |
11.1 |
19.3 |
23 |
27 |
33 |
39 |
47 |
55 |
61 |
67 |
76° |
79° |
|
|
70 |
9.5 |
12.7 |
23 |
27 |
32 |
39 |
45 |
55 |
64 |
71 |
78 |
79° |
83° |
|
|
80 |
9.5 |
14.3 |
26 |
31 |
36 |
45 |
52 |
63 |
73 |
82 |
89 |
82° |
84° |
|
|
90 |
9.5 |
14.7 |
29 |
34 |
41 |
50 |
58 |
71 |
82 |
92 |
100 |
84° |
84° |
|
|
100 |
9.5 |
15.9 |
32 |
38 |
46 |
56 |
64 |
79 |
91 |
102 |
112 |
86° |
86° |
|
|
110 |
9.5 |
17.1 |
35 |
42 |
50 |
61 |
71 |
87 |
100 |
112 |
123 |
88° |
88° |
|
|
120 |
9.5 |
18.3 |
39 |
46 |
55 |
67 |
77 |
95 |
109 |
122 |
134 |
90° |
90° |
● Wide Angle
|
Thread size |
Flow code |
Inlet orifice Dia |
Outlet orifice Dia |
Flow Rate ( l/min) |
Spray angle |
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|
|||||||||
|
|
|
|
|
3.9 |
0.7bar |
1bar |
1.5bar |
2bar |
3bar |
4bar |
5bar |
6bar |
1.5bar |
6bar |
|
3/8 |
3-2W |
2.4 |
2.0 |
0.73 |
0.84 |
1.0 |
1.2 |
1.4 |
1.7 |
2.0 |
2.2 |
2.5 |
109° |
90° |
|
|
3-3W |
2.4 |
2.8 |
0.96 |
1.1 |
1.4 |
1.7 |
1.9 |
2.4 |
2.7 |
3.1 |
3.4 |
112° |
97° |
|
|
3-5W |
2.4 |
3.2 |
1.1 |
1.3 |
1.6 |
1.9 |
2.2 |
2.7 |
3.1 |
3.5 |
3.8 |
113° |
103° |
|
|
5-5W |
2.8 |
3.2 |
1.6 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.5 |
5.0 |
5.6 |
112° |
102° |
|
|
5-10W |
2.8 |
4.4 |
2.1 |
2.5 |
3.0 |
3.6 |
4.1 |
5.1 |
6.0 |
6.5 |
7.2 |
119° |
109° |
|
|
8-8W |
3.9 |
3.9 |
2.6 |
3.1 |
3.6 |
4.4 |
5.2 |
6.3 |
7.4 |
8.3 |
9.0 |
110° |
98° |
|
|
8-10W |
3.9 |
4.4 |
2.9 |
3.4 |
4.1 |
5.1 |
6.0 |
7.1 |
8.2 |
9.1 |
9.9 |
113° |
101° |
|
|
10-10W |
3.9 |
4.4 |
3.2 |
3.8 |
4.5 |
5.5 |
6.3 |
7.9 |
9.3 |
10.2 |
11.0 |
111° |
100° |
|
1/2 |
5-3W |
3.2 |
2.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
2.5 |
2.9 |
3.2 |
3.5 |
110° |
96° |
|
|
5-5W |
3.2 |
3.2 |
1.6 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.5 |
5.0 |
5.6 |
112° |
102° |
|
|
8-8W |
3.9 |
3.9 |
2.6 |
3.1 |
3.6 |
4.4 |
5.2 |
6.3 |
7.4 |
8.3 |
9.0 |
113° |
103° |
|
|
10-15W |
4.4 |
5.6 |
3.9 |
4.6 |
5.6 |
6.7 |
7.8 |
9.5 |
11.1 |
12.3 |
13.4 |
112° |
102° |
|
|
15-15W |
4.4 |
5.6 |
5.0 |
5.7 |
6.7 |
8.3 |
9.7 |
11.9 |
14.1 |
15.4 |
16.7 |
111° |
104° |
Ordering information
|
BD |
1/4’’ |
– |
SS |
2 |
|
↓ |
↓ |
↓ |
↓ |
|
|
Nozzle Type |
Thread Size |
Material |
Flow code |
