Air Spray Nozzles
An air spray nozzle is a device used control the direction or characteristics of air flow by converting pressure into flow. Wind jet nozzles are frequently used to control the rate of flow, speed, direction, mass, shape, or the pressure of the stream that emerges. In a nozzle, the velocity of fluid increases at the expense of its pressure energy. Air knife nozzles are one of the most common product used in a factory environment. They are primarily used for blowing off debris and liquid and for cooling or drying parts. It is also used for cleaning, part ejection, and conveying.

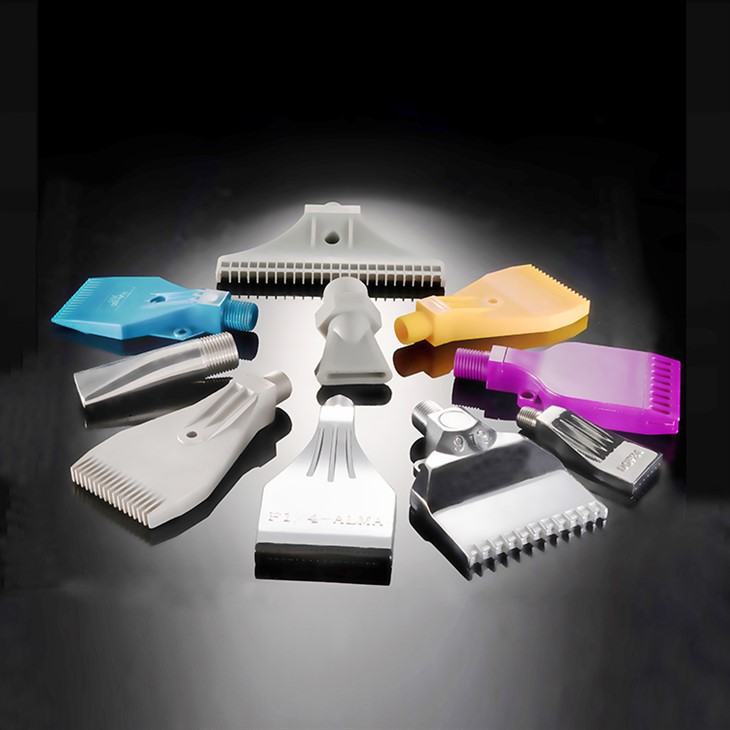

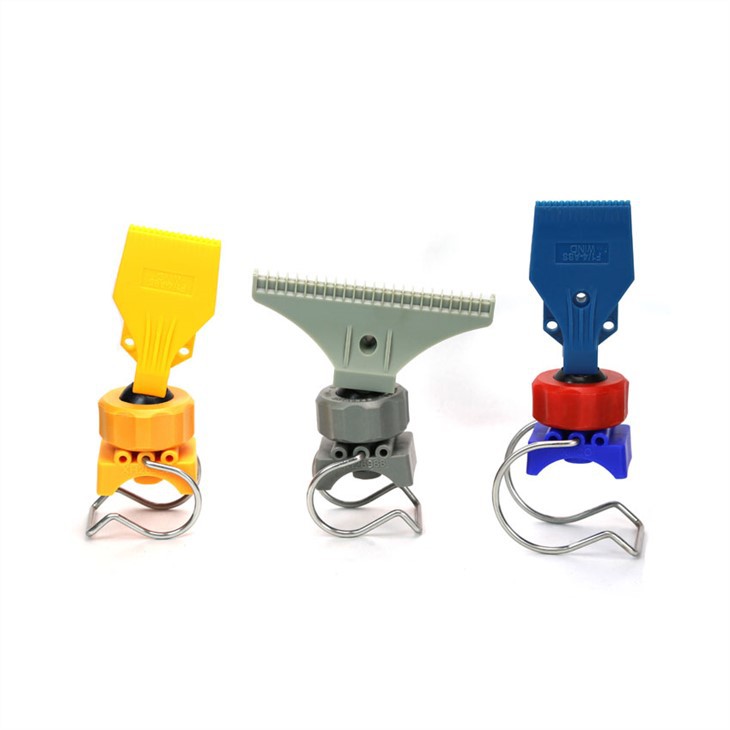

What are the different types of air nozzles?

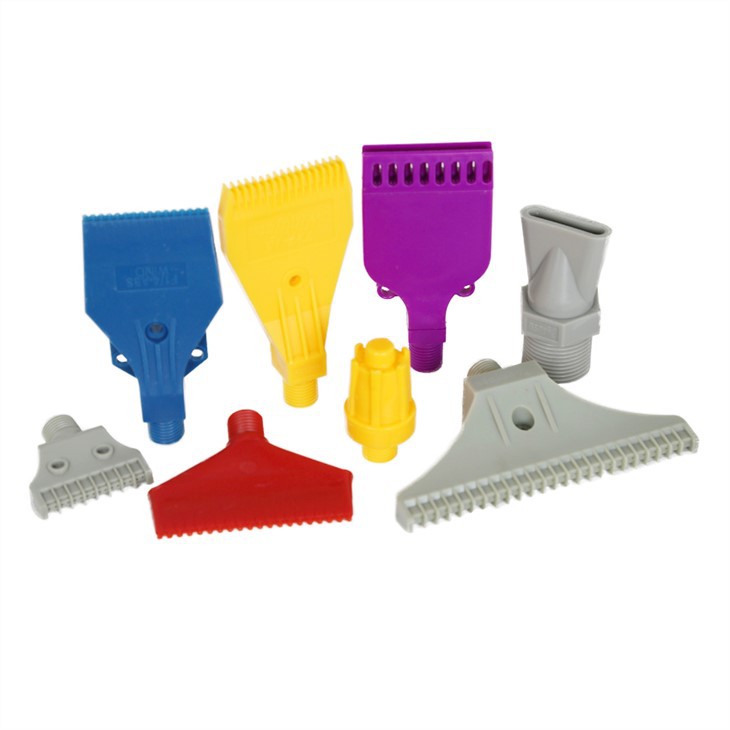

727-15 ABS Air knife Windjet Air Nozzles
Using 727-15 ABS Air knife Windjet Air Nozzles can help reduce operating costs and noise, improve worker safety and provide more precise, repeatable drying and blow-off.
Blue Air Blow off ABS Wind Jet Air Nozzles
Blue Air Blow off ABS Wind Jet Air Nozzles use 25% to 35% less air than open pipe with perceived noise reductions ranging from 28% to 60%
ABS Round Compressed Air Nozzles
Spray pattern of this wind jet air nozzle type is Round area and only 1/4” male thread size is available. Max pressure for ABS Round Compressed Air Nozzles is 7 bar , also max operating temperature is 77°C.
110mm 48 Holes Wide Windjet Air Nozzles
It’s an extra wide type of 110mm with 48 holes. The max pressure for 110mm 48 Holes Wide Windjet Air Nozzles is 7 bars in plastic and 30 bars in stainless steel . At the same time, max operating temperature is 77°C in plastic, and 250 °C in stainless steel

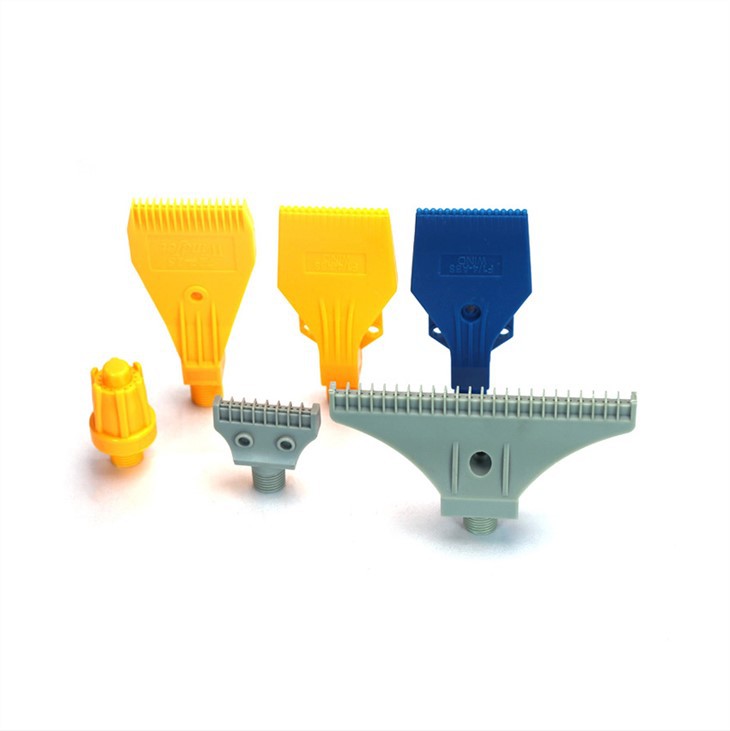

Plastic Mini Type Wind Jet Air Nozzles
It’s a mini type in 39.5mm width with 16 holes. WindJet air knives and air nozzles can help reduce operating costs and noise, improve worker safety, and provide more precise, repeatable drying and blow-off.
Plastic Duckbill Flat Air Nozzles
These plastic duckbill flat air nozzles generate a broad and flat air stream. Air nozzles are commonly used for blowing with compressed air in the industry when e.g. cleaning, drying, cooling, sorting and transporting objects.
DGF24 Stainless Steel Mini Wind Jet Air Nozzles
It’s a mini type in 24mm width with 7 holes. Only 1/8” male thread size is available for DGF24 stainless steel mini wind jet air nozzles. Xinhou’s wind jet air nozzles optimize energy use and enable quiet and efficient blowing with compressed air.
Aluminium Air Curtain wind jet air Nozzles
The unique design of xinhou wind jet air nozzles allows the noise level to be verifiably reduced by up to 25 % compared to conventional solutions. This also reduces noise-related stress for your employees.

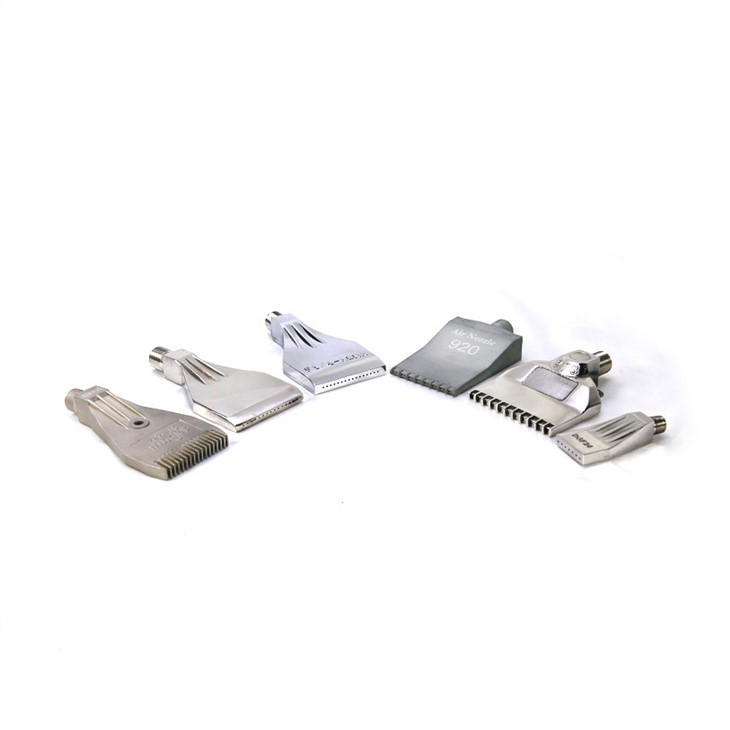

727 Stainless Steel Windjet Air Nozzles
303/304/316L Stainless Steel is often used for liquid and lightweight part blow-off applications for food, pharmaceutical, and corrosive environmental applications. 316L stainless steel is more expensive but worth the cost when the manufacturing environment has high chloride and salt exposure.
973 Air Stainless Steel Windjet Air Nozzles
It’s a wider nozzle of 58.5mm width with 22 holes. Using WindJet blow-off nozzles, compressed air nozzles, air amplifiers, and air knife products can help reduce operating costs and noise, improve worker safety, and provide more precise, repeatable drying and blow-off.
Noise Reduction Round Compressed Air Nozzles
It’s specially made entirely of stainless steel with aerodynamic slots to allow optimal utilization of compressed air while keeping the noise to a minimum. WindJet air nozzles use 25% to 35% less air than open pipes, with perceived noise reductions ranging from 28% to 60%.

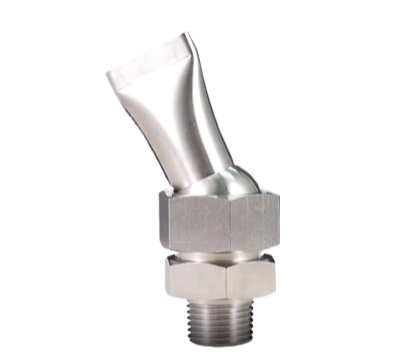

Stainless Steel Steam Flat Jet Air Nozzles
Flat fan spray of air or steam or vapor. 1/4” and 3/8” thread sizes are available. It is composed of a body, cap, and spray tip. The standard working pressure of Stainless Steel Flat Jet Steam Air Nozzles is 3 bar. The max pressure for Noise Reduction Round Compressed Air Nozzles is 30 bar.
Description
|
Medium |
Air ; Water |
|
Thread size |
1/4″ |
|
Material |
Plastic ABS ; 304 Stainless steel ; Frosted stainless steel ; Aluminium alloy |
| DIMENSIONS | |||||||||||||||||||
| Model No. | Thread size | Dimensions(mm) | |||||||||||||||||
| h | d | ||||||||||||||||||
| 707-ABS | 1/4 | 47 | 20 | ||||||||||||||||
| 707-AL | 47 | 20 | |||||||||||||||||
| FN 1/4 -ABS | 38 | 39.5 | |||||||||||||||||
| FW 1/4-ABS | 60 | 110 | |||||||||||||||||
| FB 1/4-ABS | 89 | 46 | |||||||||||||||||
| FJ1/4 | 92 | 46 | |||||||||||||||||
| 973-SS | 76 | 58.5 | |||||||||||||||||
| DGF24-SS | 55 | 24 | |||||||||||||||||
| Performance Data | |||||||||||||||||||
| Series | Orifice section summation |
Number of holes | Air consumption at different wind speed | ||||||||||||||||
| V=2m/s | V=3m/s | V=4m/s | V=5m/s | V=10m/s | V=15m/s | V=20m/s | V=25m/s | V=30m/s | |||||||||||
| 707-ABS | 1.256 * 10-5 ㎡ | 16 | 0.9 | 1.36 | 1.8 | 2.26 | 4.52 | 6.78 | 9.0 | 11.3 | 13.6 | ||||||||
| 707-AL | |||||||||||||||||||
| FB 1/4-ABS | |||||||||||||||||||
| FN 1/4 -ABS | 1.256 * 10-5 ㎡ | 16 | |||||||||||||||||
| FW 1/4-ABS | 3.768 * 10-5 ㎡ | 48 | 2.7 | 4.1 | 5.4 | 6.78 | 13.56 | 20.34 | 27.0 | 33.9 | 40.8 | ||||||||
| 973-SS | 1.727 * 10-5 ㎡ | 22 | 1.24 | 1.87 | 2.48 | 3.1 | 6.21 | 9.32 | 12.37 | 15.54 | 18.7 | ||||||||
Application
1 Cooling
2 Drying
3 Cleaning and blowing off
4 Moving material
5 Direct paper
6 Selecting and sortings
7 Ionizing
8 Creating an air curtain
Why choose Xinhou’s wind jet air spray nozzles?
Air nozzle, is a more complex nozzle, it has many names and is not the same. We can call it wind jet air nozzle, air knife nozzle, air blow nozzle, or even wind jet air blow-off nozzle. One of its peculiarities is that unlike other nozzles, which use liquids like water as a medium, it uses more air. Shanghai Xinhou Spray Company is often thinking about a problem, how to make our customers better understand Xinhou air-blowing nozzle?
Using xinhou air nozzles, replacing non-engineered air nozzles, or replacing old nozzles with more efficient products can save significant operating costs by using compressed air more effectively. There is also an average 10 dBA reduction in noise, which improves the working environment. Xinhou wind jet air nozzles provide precise, repeatable drying and blowing-off capabilities for all applications.
A perfect solution must be optimally tailored to the exact requirements. We will therefore gladly advise you in person about the use of compressed air nozzles and introduce you to new possibilities. Contact us and let us define the best possible solution together for improved quality and optimized process reliability.
Perhaps you would like to learn more about air blow-off nozzles?
How to choose the right air nozzles?
There are many different types of air nozzles specially designed to suit specific industries and applications. It can thus be difficult to identify the wind jet air nozzle that is most effective for a particular blowing application. The choice of the right air nozzle should be based on the following three parameters: blowing force, blowing pattern and the material.
What benefits can you get if you use Xinhou’s wind jet air nozzles?
First of all, you can reduce noise level. Of course, you can get low operating air pressure with the same blowing force, thus lower air consumption. Then you can improve blowing efficiency over larger distances. At last, lower operating costs and cost efficiency will come to you
What are the features of each material of the air blower nozzle?
Anodized aluminum is ideal for blow guns and for part ejection of heavier viscosity liquids. Stainless Steel is often used for liquid and lightweight part blow-off applications for food, pharmaceutical, and corrosive environmental applications. Cast zinc is rugged and provides extra strength for use in harsh environments.
What is a wind jet air nozzle?
F style wind jet nozzle generates efficient fan-shaped air current, it is designed to maintain spray pattern integrity. They are available in materials that withstand high temperatures, like ABS or aluminum alloy. Air nozzles is applicable to 1/4” BSPT made connector and are designed with a locating hole (ABS spray nozzle) in order to be mounted side-by-side for air curtain applications. Plastic air knife nozzles can reduce 7 bar air pressure, at this air pressure, max operating temperature is 77 ℃. Aluminum alloy wind jet air nozzles can endure 30 bar pressure, at this pressure, the max operating temperature is 250℃.
WindJet Air Nozzles are designed to be used in air drying or air cleaning applications when used with compressed air. Helps reduce operating costs and noise, improves worker safety, and provides more precise drying and blow-off. 25% to 35% less air used and noise reductions from 30% to 60% compared to open pipe. Used for industrial cleaning and drying as well as for car washes for drying door handles, window and door trim, mirrors, and more. These nozzles convert a low-pressure volume of air into a targeted high-velocity air stream. Precision orifices ensure uniform distribution and spray patterns.
