Features
• Spray pattern is Round area.
• Only 1/4″ male thread size is available.
• Using ABS Round Compressed Air Nozzles can help reduce operating costs and noise, improve worker safety and provide more precise, repeatable drying and blow-off.
• ABS Round Compressed Air Nozzles use 25% to 35% less air than open pipe with perceived noise reductions ranging from 28% to 60%.
• Max pressure for ABS Round Compressed Air Nozzles is 7 bar.
• Max operating temperature is 77°C.
|

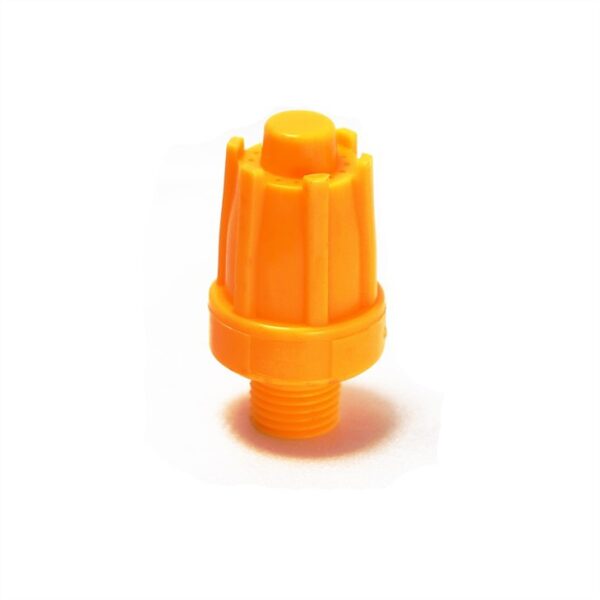

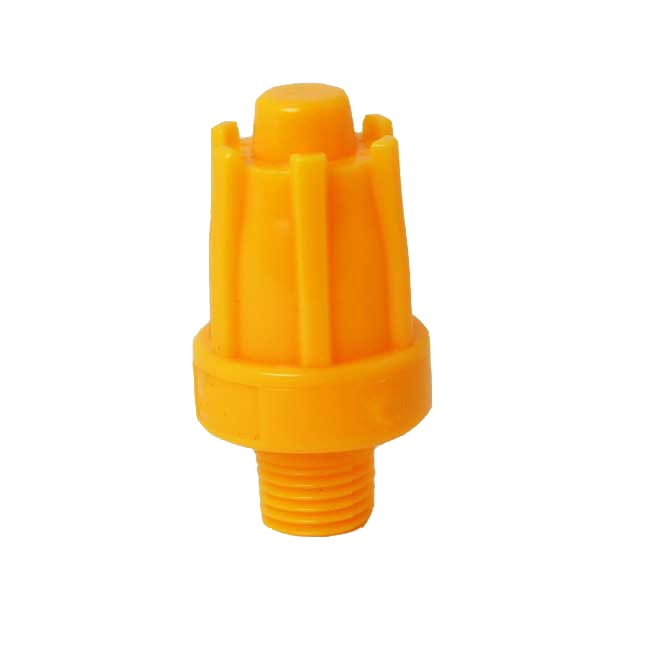

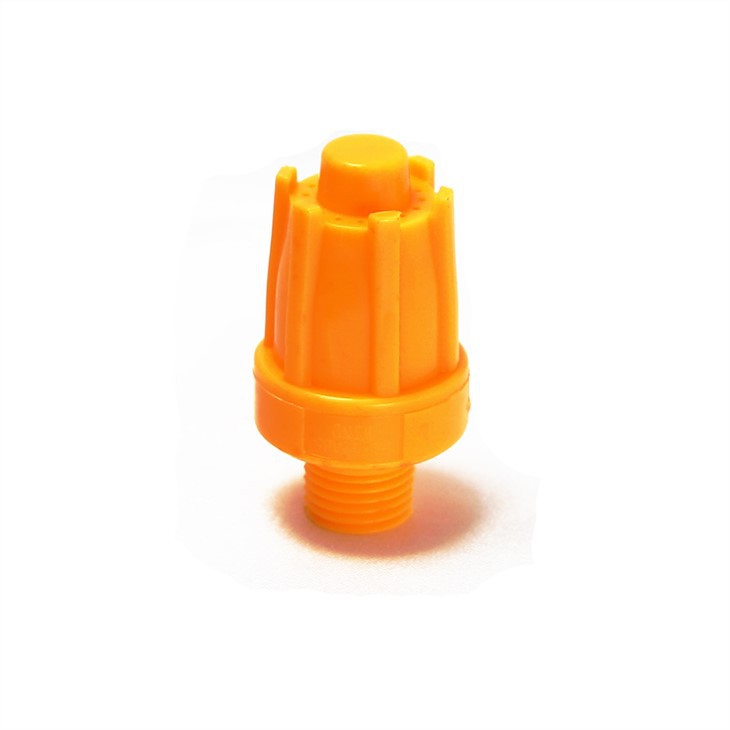

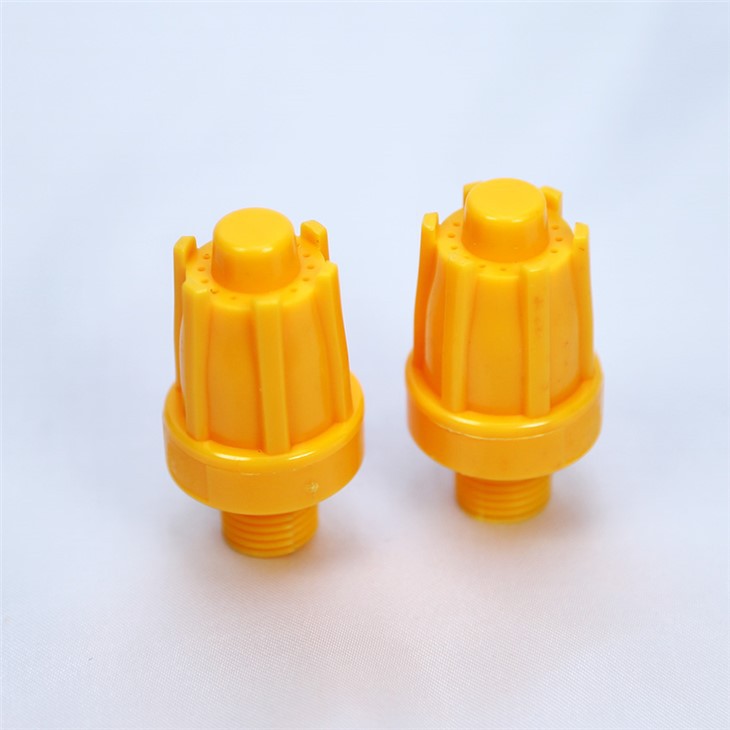

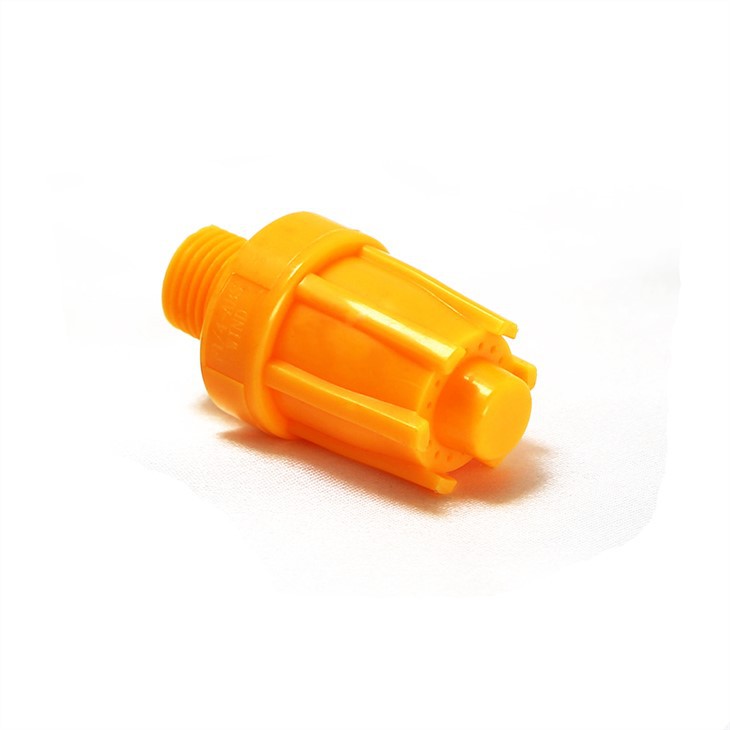

ABS Round Compressed Air Nozzles |
Round Compressed Air Nozzles |
We are a professional enterprise engaged in the manufacture and sale of ABS Round Compressed Air Nozzles.
We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
Description
|
Model |
707 |
|
Material |
ABS |
|
Spray pattern |
Round |
|
Thread size |
1/4’’ |
|
Hole |
16 holes |
DIMENSIONS
|
Model No. |
Thread size |
Dimensions(mm) |
|
|
h |
d |
||
|
707-ABS |
1/4 |
47 |
20 |
PERFORMANCE DATA
|
Series |
Orifice section |
Number of holes |
Air consumption at different wind speed |
||||||||
|
V=2m/s |
V=3m/s |
V=4m/s |
V=5m/s |
V=10m/s |
V=15m/s |
V=20m/s |
V=25m/s |
V=30m/s |
|||
|
707-ABS |
1.256 * 10-5 ㎡ |
16 |
0.9 |
1.36 |
1.8 |
2.26 |
4.52 |
6.78 |
9.0 |
11.3 |
13.6 |
Ordering information
|
707 |
1/4’’ |
ABS |
|
↓ |
↓ |
↓ |
|
Model No. |
Thread size Size |
Material |
