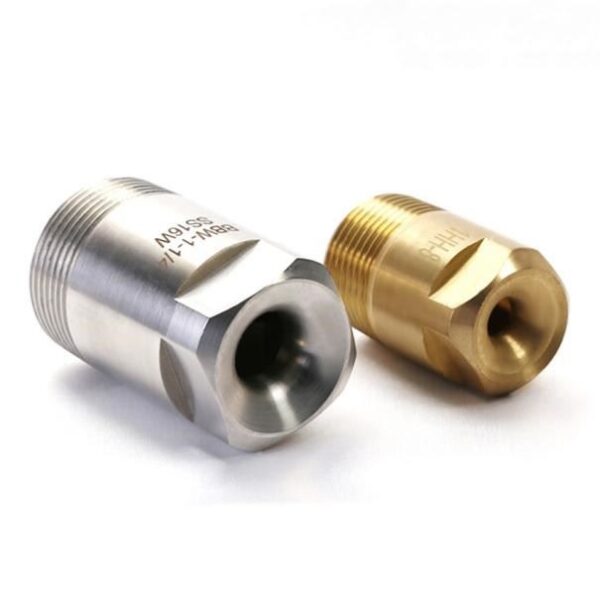

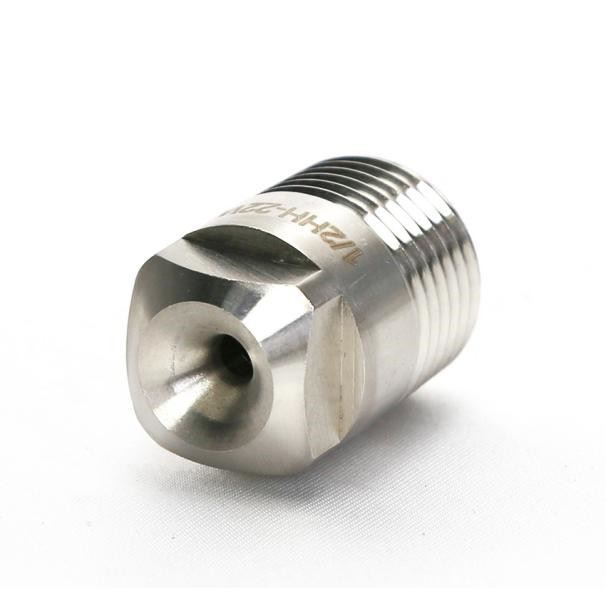

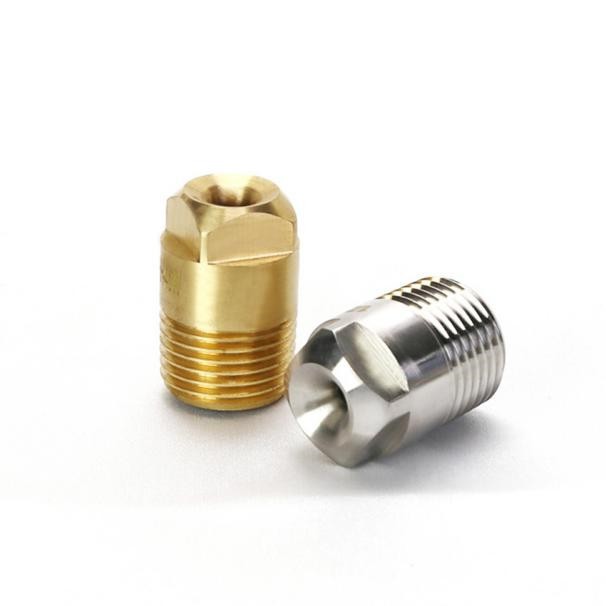

Features
• 90 120 degrees Wide-angle Full Cone Nozzles spray pattern with wide round impact area
• Unique vane design ensures uniform spray distribution,the pattern is achieved by way of an internal vane.
• Spray angles: 90⁰ to 120⁰
• Connections: 1/8” to 2” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
|
90 120 Degrees Wide-angle Full Cone Nozzles |
Wide-angle Full Cone Nozzles |
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
Founded in 2008, Shanghai Xinhou is a professional nozzle manufacturing enterprise integrating R&D, production, sales, and service. Our company is located near Shanghai Hongqiao Station and National Exhibition Center, with convenient transportation.
After more than 10 years of stable development, Shanghai Xinhou has been recognized by customers for its reliable quality and thoughtful service. Especially in the automotive surface treatment, Xinhou has become the designated supplier for most customers. Our Products are also exported to more than 20 countries abroad, all over North America, South America, Europe, Africa, Southeast Asia, and the Middle East.
If you are interested in any of the Wide-angle Full Cone Nozzles or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Full cone nozzles are made as precise dimensions, which assure accurate and reliable performance.
Description
|
Model |
BB-W; HH-W; GG-W;SJV-BW |
|
Inlet connection |
1/8’’;1/4’’;3/8”;1/2”;3/4”;1”;1-1/4”;1-1/2”; 2”;2 1/2” |
|
Spray pattern |
Full cone |
|
Spray angle |
119°/117°/112°/110°/108°/104°/103°/102°/86° |
|
Application |
The generation and elimination of the droplets in the process of chemical reaction |
Parameter
|
Thread Size |
Flow Code |
Orifice Dia(mm) |
Max free Passage Orifice Dia(mm) |
Flow rate ( L/min) |
Spray angle |
|||||||||
|
1 (usgal) =3.785 L ; 1 ( uk gal) =4.546 L |
||||||||||||||
|
0.4 bar |
0.5 bar |
0.7 bar |
1 bar |
1.5 bar |
2 bar |
3 bar |
4 bar |
6 bar |
0.7 bar |
6 bar |
||||
|
1/8” |
1.5W |
1.2 |
0.64 |
– |
– |
0.57 |
0.67 |
0.81 |
0.93 |
1.1 |
1.3 |
1.5 |
120° |
86° |
|
2.8W |
1.6 |
1.0 |
– |
– |
1.1 |
1.3 |
1.5 |
1.7 |
2.1 |
2.4 |
2.9 |
120° |
102° |
|
|
4.3W |
2 |
1.0 |
– |
– |
1.6 |
1.9 |
2.3 |
2.7 |
3.2 |
3.7 |
4.4 |
120° |
102° |
|
|
5.6W |
2.4 |
1.0 |
– |
1.8 |
2.1 |
2.5 |
3 |
3.5 |
4.2 |
4.8 |
5.7 |
120° |
102° |
|
|
8W |
2.4 |
1.3 |
– |
2.6 |
3 |
3.6 |
4.3 |
4.9 |
6 |
6.8 |
8.2 |
120° |
103° |
|
|
1/4” |
10W |
2.8 |
1.3 |
2.9 |
3.3 |
3.8 |
4.5 |
5.4 |
6.2 |
7.4 |
8.5 |
10.2 |
120° |
103° |
|
12W |
3.2 |
1.3 |
3.5 |
3.9 |
4.6 |
5.4 |
6.5 |
7.4 |
8.9 |
10.2 |
12.3 |
120° |
103° |
|
|
14W |
3.6 |
1.6 |
4.1 |
4.6 |
5.3 |
6.3 |
7.6 |
8.6 |
10.4 |
11.9 |
14.3 |
120° |
103° |
|
|
3/8” |
17W |
4 |
1.6 |
5 |
5.6 |
6.5 |
7.6 |
9.2 |
10.5 |
12.7 |
14.4 |
17.4 |
120° |
103° |
|
20W |
4.4 |
2.4 |
5.9 |
6.5 |
7.6 |
9 |
10.8 |
12.4 |
14.9 |
17 |
20 |
120° |
104° |
|
|
24W |
4.8 |
2.4 |
7.1 |
7.8 |
9.1 |
10.8 |
13 |
14.8 |
17.9 |
20 |
25 |
120° |
104° |
|
|
27W |
5.2 |
2.8 |
8 |
8.8 |
10.3 |
12.1 |
14.6 |
16.7 |
20 |
23 |
28 |
120° |
106° |
|
|
1/2” |
30W |
5.6 |
2.8 |
8.8 |
9.8 |
11.4 |
13.5 |
16.2 |
18.5 |
22 |
25 |
31 |
120° |
108° |
|
35W |
6 |
3.2 |
10.3 |
11.4 |
13.3 |
15.7 |
18.9 |
22 |
26 |
30 |
36 |
120° |
108° |
|
|
40W |
6.4 |
3.2 |
11.8 |
13.1 |
15.2 |
18 |
22 |
25 |
30 |
34 |
41 |
120° |
108° |
|
|
45W |
6.4 |
3.6 |
13.3 |
14.7 |
17.2 |
20 |
24 |
28 |
34 |
38 |
46 |
120° |
110° |
|
|
50W |
6.7 |
4 |
14.7 |
16.9 |
19.1 |
22 |
27 |
31 |
37 |
42 |
51 |
120° |
112° |
|
|
3/4” |
6W |
9.9 |
4.4 |
21 |
23 |
27 |
31 |
37 |
42 |
51 |
58 |
69 |
120° |
112° |
|
1” |
11W |
13.1 |
5.6 |
38 |
42 |
49 |
57 |
69 |
78 |
93 |
106 |
126 |
120° |
117° |
|
1 1/4” |
16W |
15.5 |
6.4 |
56 |
62 |
71 |
83 |
100 |
113 |
135 |
154 |
184 |
120° |
119° |
|
1 1/2” |
24W |
18.3 |
10.3 |
84 |
92 |
107 |
125 |
150 |
170 |
203 |
230 |
275 |
124° |
119° |
|
2” |
47W |
25 |
11.1 |
164 |
181 |
210 |
245 |
293 |
333 |
398 |
451 |
539 |
124° |
119° |
|
2 1/2” |
70W |
31.8 |
14.3 |
244 |
269 |
312 |
365 |
436 |
495 |
592 |
672 |
803 |
125° |
119° |

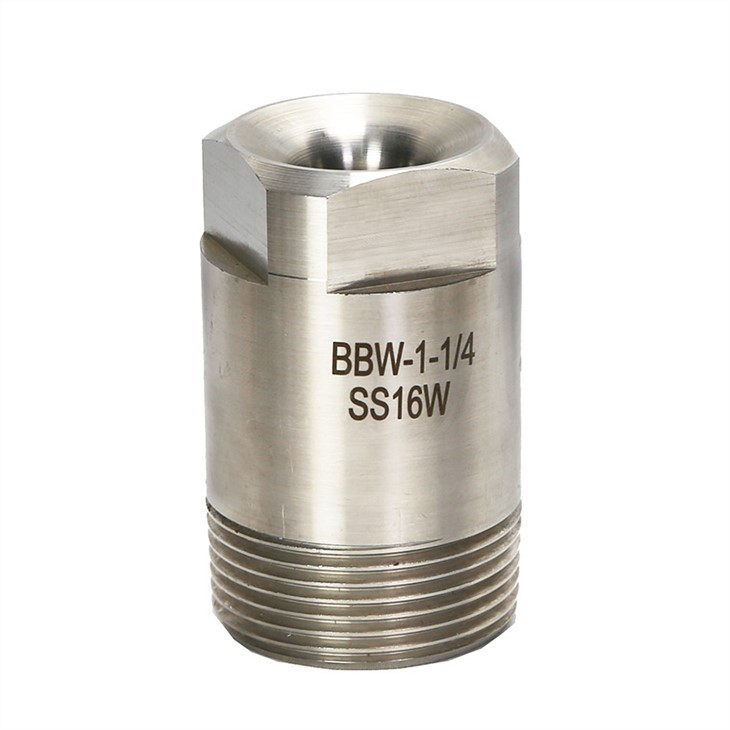

Ordering information
|
BB |
1/4’’ |
SS |
2.8W |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
Application pictures
|
Dust control |
Roll cooling |
