Features
Features
• Snap-on pipe connection with Clip Eyelet ball type spray tips.
• Adjustable Ball type tips allow quick and accurate adjustment of spray direction without disturbing pipe connection.
• Use with 3/4″, 1″, 1-1/4″, 1-1/2″ or 2″ pipe.
• Inlet sizes for 8mm,14 mm, 16mm, 18mm, 20mm dia. drill holes.
• Chemical- and corrosion-resistant material PP or FRPP ( Fiber reinforced Polypropylene) withstands high temperatures at about 85°C.
• Use with Nitrile or Fluorine rubber as O-ring seal material which is Chemical- and corrosion-resistant.
• Spring-grade stainless steel single- and double-clamp.
• More suitable for low-pressure working environment.
• Multi-piece structure, easy maintenance, cleaning and replacement, and can save the cost of replacement nozzle head.
| 26988 | 26988-D | 26988-T | 155 | 155-T |
|

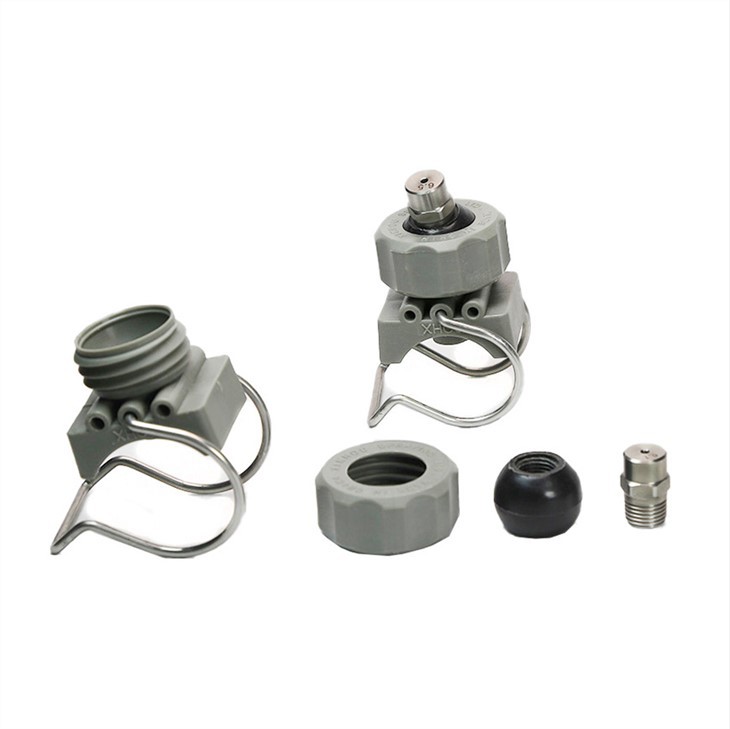

26988 Adjustable Ball Clip Eyelet Nozzles It is suitable tp clamp on pipes with outer diametner from 3/4” to 1 1/2” ( 27mm to 51mm) |

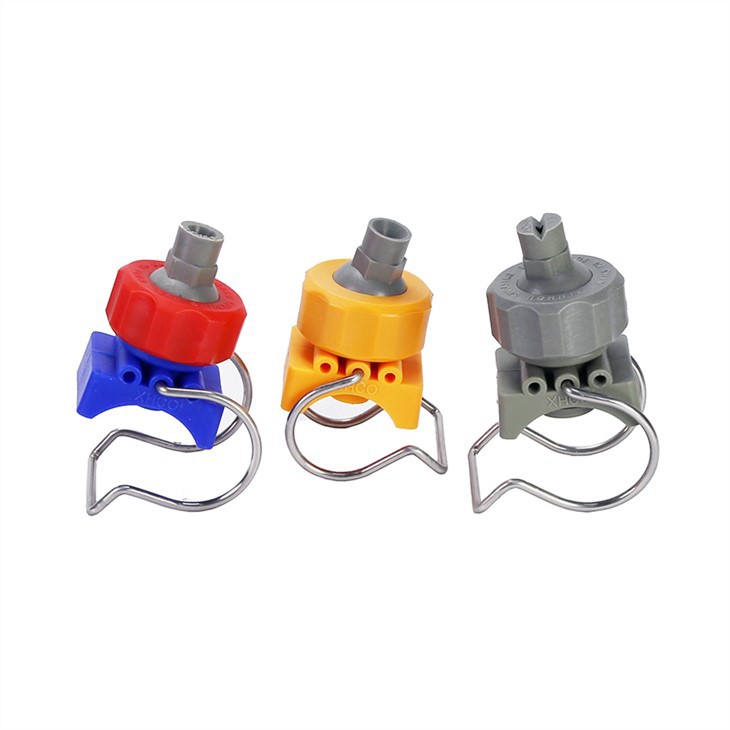

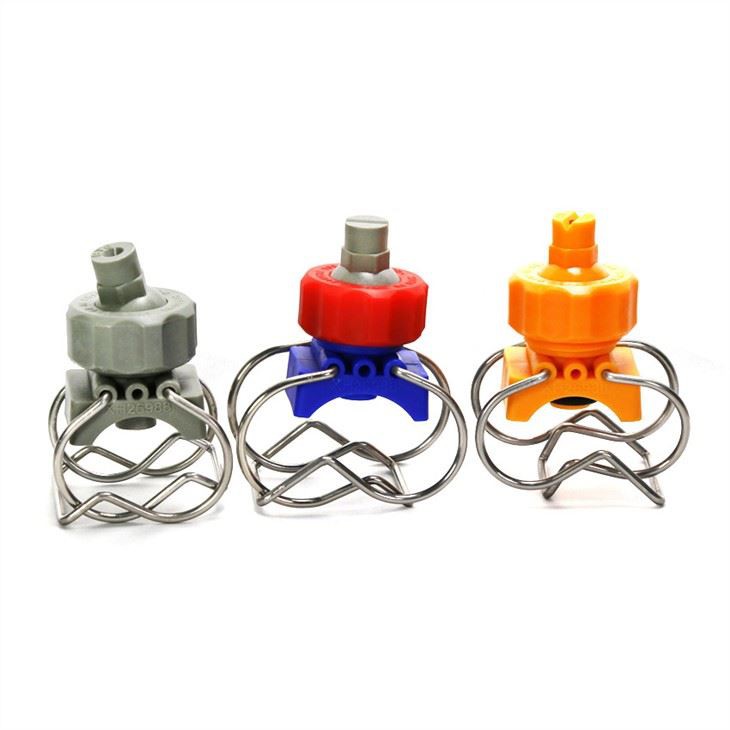

Adjustable Ball Clip Eyelet Nozzles It is suitable tp clamp on pipes with outer diametner of 2” ( 54mm to 60mm) |
|

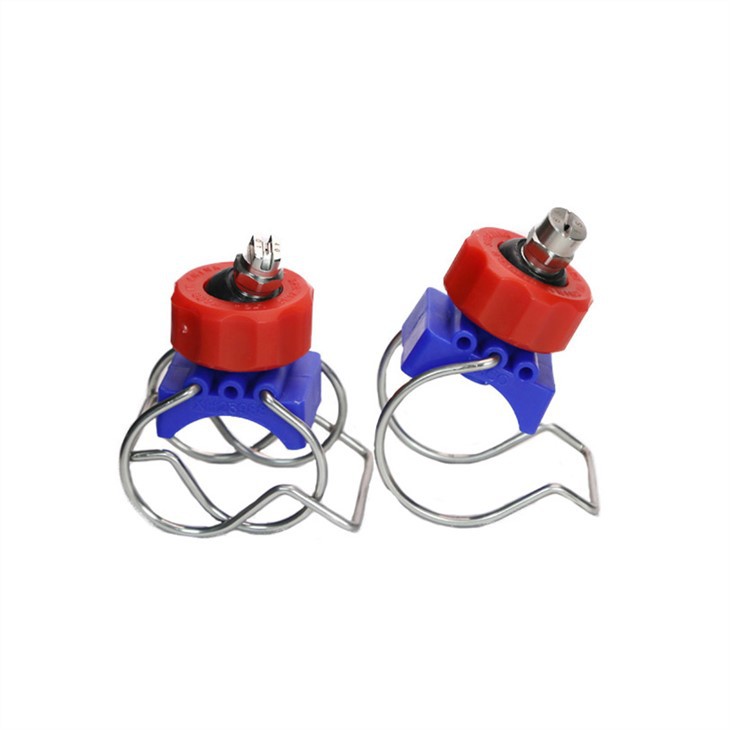

Clamp Nozzle With Adjustable Ball The spray angle of adjustable ball spray tip can be adjusted with 45 degrees |
Clamp Nozzle With Plastic Adjustable Spray Tip Different spray nozzles can in plastic or stainless steel with thread size of 1/4” or 3/8” can be connected to the black threaded ball with adjustable angle 45 degrees |
General Application:
1) Metal surface treatment.
2) Pretreatment and rainning test in auto coating industry.
3) Degreasing and phosphating in the process of surface treatment.
4) Other low pressure washing or cleaning application: Vegetable & fruit pre-treatment cleaning
5) Chemical treatment and coating pre-Treatment cleaning nozzle before electrophoresis processing
6) Cleaning: conveyor belt, film, copper thin, paper, all kinds of plates, filters, dust and gravel, and machine tool cleaning.
7) Cooling: conveyor belt, gas, tank, machinery, metal, roof etc.
8) Dispersion: humidifying, chemicals, firefighting, dedust, deodorization, defoaming, etc
Performance Data:
Hollow Cone Spray Tip
Flat Fan Tip
|
Spray Tip Style No. ( Spray angle at 3 bar ) |
Flow Rate ( l/min) |
|||||||||
|
40° |
50° |
65° |
80° |
0.3 bar |
0.7 bar |
1bar |
1.5 bar |
2 bar |
3 bar |
4 bar |
|
– |
– |
CT6505 |
– |
0.62 |
0.9 |
1.1 |
1.3 |
1.6 |
2 |
2.3 |
|
– |
– |
CT6510 |
CT8010 |
1.2 |
1.9 |
2.3 |
2.8 |
3.2 |
3.9 |
4.6 |
|
CT4020 |
CT5020 |
CT6520 |
CT8020 |
2.5 |
3.8 |
4.6 |
5.6 |
6.5 |
7.9 |
9.1 |
|
CT4030 |
– |
CT6530 |
CT8030 |
3.7 |
5.7 |
6.8 |
8.4 |
9.7 |
11.8 |
13.7 |
|
CT4040 |
– |
CT6540 |
CT8040 |
5.0 |
7.6 |
9.1 |
11.2 |
12.9 |
15.8 |
18.2 |
|
CT4050 |
– |
CT6550 |
– |
6.2 |
9.5 |
11.4 |
14.0 |
16.1 |
19.7 |
23.0 |
|
CT4060 |
– |
CT6560 |
– |
7.5 |
11.4 |
13.7 |
16.7 |
19.3 |
24.0 |
27.0 |
|
CT4070 |
– |
CT6570 |
– |
8.7 |
13.3 |
16.0 |
19.5 |
23.0 |
28.0 |
32.0 |
|
CT4026 |
– |
CT65100 |
– |
12.5 |
19.1 |
23.0 |
28.0 |
32.0 |
39.0 |
46.0 |
Full Cone Spray Tip
Size Of Clip- eyelet Nozzle
Threaded ball size
155 nozzle female thread size
|
Style No. |
Male thread size |
|
155 |
1/8” |
| 1/4” | |
| 3/8” | |
| 1/2” |
Please kindly contact us by inquiry or email for more catalogues of different spray tips
|
Uniform flat fan spray pattern |
Uniform full cone spray pattern |
Perfectly match with the pipe
Ordering information
|
26988 |
1 |
D14 |
CT6510 |
PP |
|
↓ |
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
Pipe outer dia. |
drilling hole dia.on pipe |
spray tip No. |
Material |
Application pictures
|
Cooling |
Washing |
Why choose Xinhou’s clip eyelet nozzles?
Clamp nozzle is a more common nozzle, its application is very wide, and convenient disassembly and replacement. Therefore, it is one of the nozzle consumption is relatively large nozzle. Shanghai Xinhou Spray Purification Equipment Co., Ltd. is a serious and responsible enterprise with rich experience, long years. Even though the clip nozzle is a more commonly used nozzle, Xinhou Company is still improving on its production technology to ensure the accurate Angle of the clip eyelet nozzle and the match of the thread.
Adjustable ball-Type nozzle has two types of connection: Clamp type (26988 series) and Threaded type (155 series). Clamp spray nozzle is fixed on the pipe by clamp, threaded type is to be fixed by threaded connection. Adjustable ball-Type nozzle can offer three types of spraying: Full cone type, hollow cone type, fan type. You can precisely adjust the spray direction anytime and make it under the best working operation. Ball-type tip is very quick to detach or connect. It can be detached or connected without any tools, and connect new spray tip.
Perhaps you would like to learn more about clamp nozzles?
1 How to change the clip nozzle?
In the use of the process, you can quickly and accurately adjusting nozzle injection direction, so that it is always in the best working condition, the disassembly of this kind of nozzle is very convenient, can be directly used without any tools, hand rotation, from the nozzle body to remove the spherical head, thread ball or quick release ball can be inserted into the new spray nozzle.
2 How is the clip eyelet nozzle fixed?
Adjustable ball nozzles have two types:clamp connection type and thread connection type.The clamp connection type nozzle is positioned on the pipe with spring clamp while the thread connection type nozzle is positioned by the way of thread connection.
