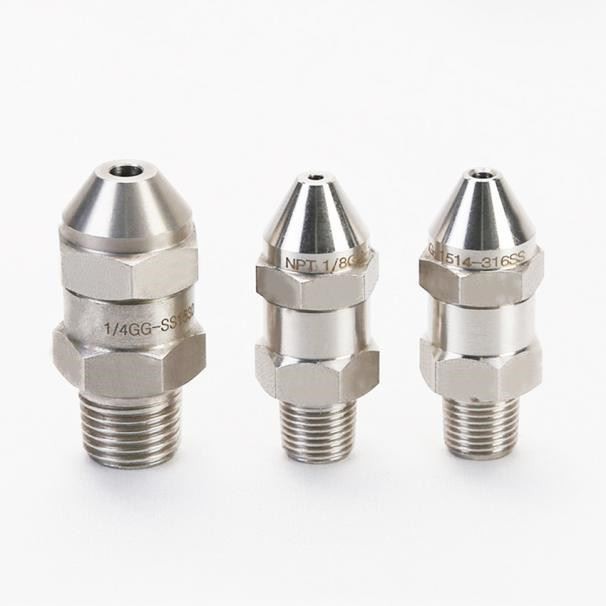

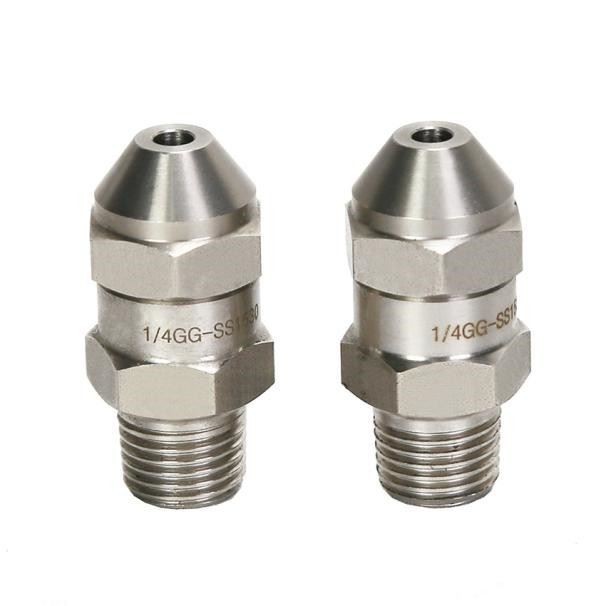

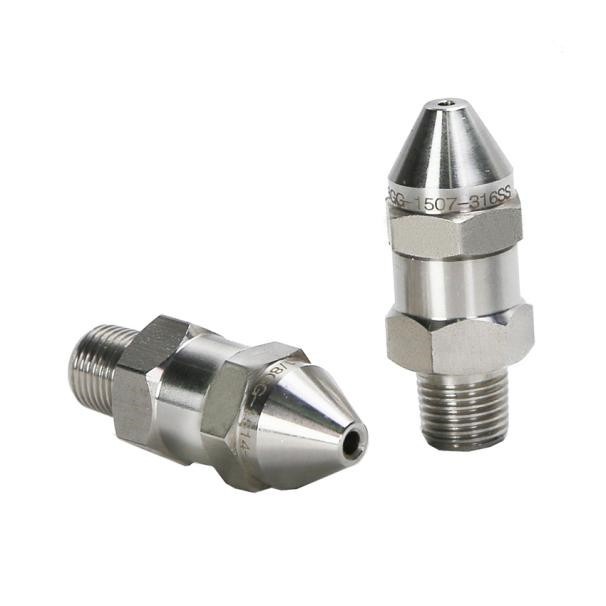

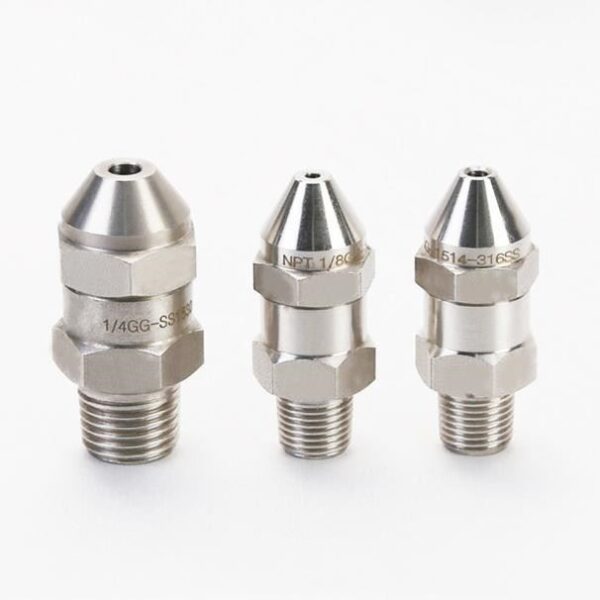

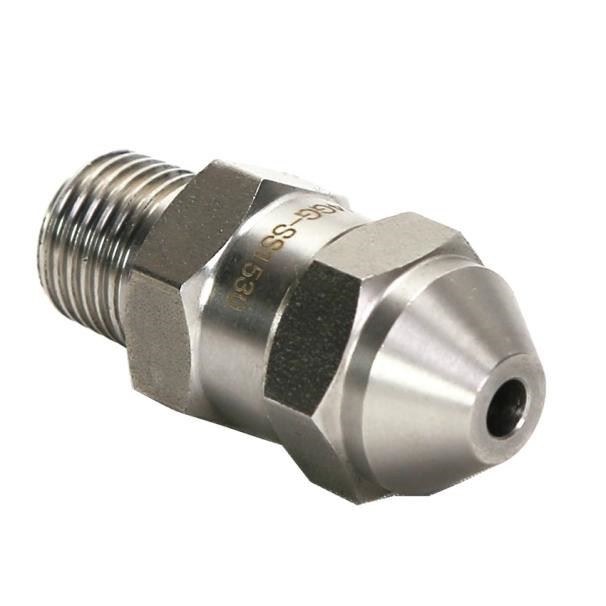

Features
• Unique vane design produces a narrow spray angle 15 °or 30°
• Removable caps and vanes on most models for easy cleaning
• 15 30 Degrees Narrow angle Full Cone Nozzles produce solid cone-shaped spray pattern with small round impact area
• Connections: 1/8” to 2” (male and female NPT and BSPT)
• Operating pressure range: up to 400 psi (25 bar)
|
15 30 Degrees Narrow Angle Full Cone Nozzles |
Narrow Angle Full Cone Nozzles |
General Application
1) Cooling
2) Dust suppression
3) Fire Protection
4) Chemical Injection
5) Washing or cleaning
Description
|
Model |
G15；GG15；H15；G30；GG30；H30 |
|
Spray pattern |
Full cone |
|
Inner connection |
1/8’’; 1/4’’; 3/8’’; 1/2’’; 3/4’’; 1’’; 1 1/4’’; 1 1/2’’; 2’’; 2 1/2’’ |
|
Spray angle |
30°/15° |
|
Application |
Cooling and cleaning pipe through spraying the inner side of pipe |
Parameter
● 15 Degrees
|
Thread Size |
Flow Code |
Orifice Dia. |
Flow Rate ( L/min) |
Spray angle |
||||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
||||||||||||||
|
0.7 bar |
1.5 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
20bar |
3bar |
7bar |
|||
|
1/8” |
1507 |
1.6 |
1.3 |
2 |
2.3 |
2.8 |
3.2 |
3.6 |
3.9 |
4.2 |
5 |
7.1 |
15° |
15° |
|
1514 |
2.4 |
2.7 |
3.9 |
4.5 |
5.5 |
6.4 |
7.1 |
7.8 |
8.4 |
10.1 |
14.3 |
15° |
15° |
|
|
1/4” |
1530 |
3.2 |
5.7 |
8.4 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
31 |
15° |
15° |
|
3/8” |
1550 |
4.4 |
9.5 |
14 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
51 |
15° |
15° |
|
1/2” |
1590 |
5.6 |
17.2 |
25 |
29 |
36 |
41 |
46 |
50 |
54 |
65 |
92 |
15° |
15° |
|
3/4” |
15150 |
7.5 |
29 |
42 |
48 |
59 |
68 |
76 |
84 |
90 |
108 |
153 |
15° |
15° |
|
1” |
15280 |
9.9 |
53 |
78 |
90 |
111 |
128 |
143 |
156 |
169 |
200 |
285 |
15° |
15° |
|
1 1/4” |
15430 |
12.3 |
82 |
120 |
139 |
170 |
196 |
220 |
240 |
260 |
310 |
440 |
15° |
15° |
|
1 1/2” |
15630 |
15.1 |
120 |
176 |
205 |
250 |
290 |
320 |
350 |
380 |
455 |
640 |
15° |
15° |
|
2” |
151150 |
20.2 |
220 |
320 |
370 |
455 |
530 |
590 |
640 |
700 |
830 |
1170 |
15° |
15° |
|
2 1/2” |
15280 |
24.6 |
335 |
490 |
570 |
690 |
800 |
890 |
980 |
1060 |
1260 |
1780 |
15° |
15° |
● 30 Degrees
|
Thread Size |
Flow Code |
Orifice Dia. |
Flow Rate ( L/min) |
Spray Angle |
|||||||||
|
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L |
|||||||||||||
|
1 bar |
2 bar |
3bar |
4bar |
5bar |
6bar |
7bar |
10bar |
15bar |
20bar |
1.5bar |
|||
|
1/8” |
3001.4 |
0.79 |
0.32 |
0.45 |
0.55 |
0.64 |
0.71 |
0.78 |
0.84 |
1 |
1.2 |
1.4 |
30° |
|
3002.5 |
0.79 |
0.57 |
0.81 |
0.99 |
1.1 |
1.3 |
1.4 |
1.5 |
1.8 |
2.2 |
2.5 |
30° |
|
|
3004 |
1.2 |
0.91 |
1.3 |
1.6 |
1.8 |
2 |
2.2 |
2.4 |
2.9 |
3.5 |
4.1 |
30° |
|
|
3007 |
1.6 |
1.6 |
2.3 |
2.8 |
3.2 |
3.6 |
3.9 |
4.2 |
5 |
6.2 |
7.1 |
30° |
|
|
1/4” |
3009 |
2 |
2.1 |
2.9 |
3.6 |
4.1 |
4.6 |
5 |
5.4 |
6.5 |
7.9 |
9.2 |
30° |
|
3/8” |
3014 |
2.4 |
3.2 |
4.5 |
5.5 |
6.4 |
7.1 |
7.8 |
8.4 |
10.1 |
12.4 |
14.3 |
30° |
|
1/2” |
3030 |
3.2 |
6.8 |
9.7 |
11.8 |
13.7 |
15.3 |
16.7 |
18.1 |
22 |
26 |
31 |
30° |
|
3/4” |
3050 |
4.4 |
11.4 |
16.1 |
19.7 |
23 |
25 |
28 |
30 |
36 |
44 |
51 |
30° |
|
1” |
3070 |
5.2 |
16 |
23 |
28 |
32 |
36 |
39 |
42 |
50 |
62 |
71 |
30° |
|
30100 |
6.4 |
23 |
32 |
39 |
46 |
51 |
56 |
60 |
72 |
88 |
102 |
30° |
|
|
1 1/4” |
30150 |
7.5 |
34 |
48 |
59 |
68 |
76 |
84 |
90 |
108 |
132 |
153 |
30° |
|
30200 |
8.7 |
46 |
64 |
79 |
91 |
102 |
112 |
121 |
144 |
177 |
205 |
30° |
|
|
1 1/2” |
30250 |
9.5 |
57 |
81 |
99 |
114 |
127 |
140 |
151 |
180 |
220 |
255 |
30° |
|
30300 |
10.3 |
68 |
97 |
118 |
137 |
153 |
167 |
181 |
220 |
265 |
305 |
30° |
|
|
2” |
30350 |
11.1 |
80 |
113 |
138 |
160 |
178 |
195 |
215 |
255 |
310 |
360 |
30° |
|
30400 |
11.9 |
91 |
129 |
158 |
182 |
205 |
225 |
245 |
290 |
355 |
410 |
30° |
|
|
30500 |
13.5 |
114 |
161 |
197 |
230 |
255 |
280 |
305 |
360 |
445 |
510 |
30° |
|
|
2 1/2” |
30600 |
14.7 |
137 |
193 |
235 |
275 |
305 |
335 |
365 |
435 |
530 |
620 |
30° |
|
30700 |
15.9 |
160 |
225 |
280 |
320 |
360 |
390 |
425 |
510 |
620 |
720 |
30° |
|
|
301000 |
19.1 |
230 |
325 |
395 |
455 |
510 |
560 |
610 |
720 |
890 |
1020 |
30° |
|
|
301100 |
19.8 |
250 |
355 |
435 |
510 |
560 |
620 |
670 |
800 |
970 |
1120 |
30° |
|
|
301200 |
20.6 |
275 |
390 |
475 |
550 |
620 |
670 |
730 |
870 |
1060 |
1230 |
30° |
|
Ordering information
|
GG15 |
1/4’’ |
SS |
1507 |
|
↓ |
↓ |
↓ |
↓ |
|
Nozzle Type |
connector Size |
Material |
Flow code |
Application pictures
|
Dust control |
Fire extinguishing |
