Features

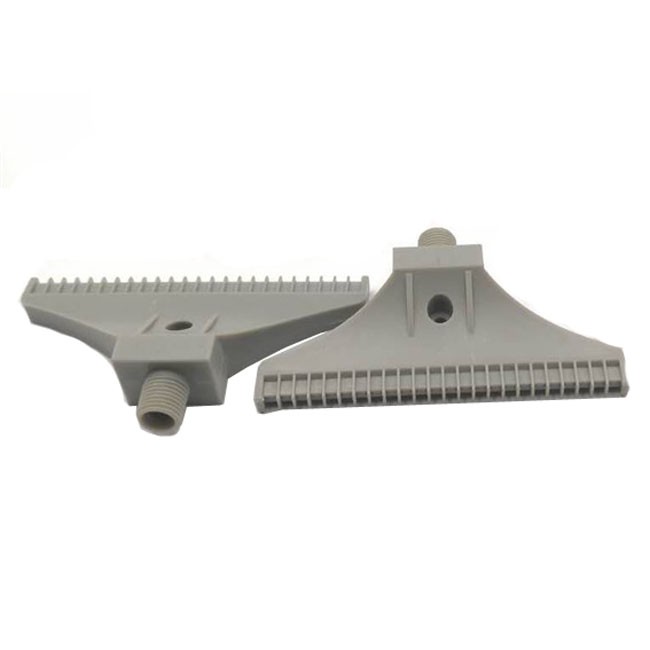

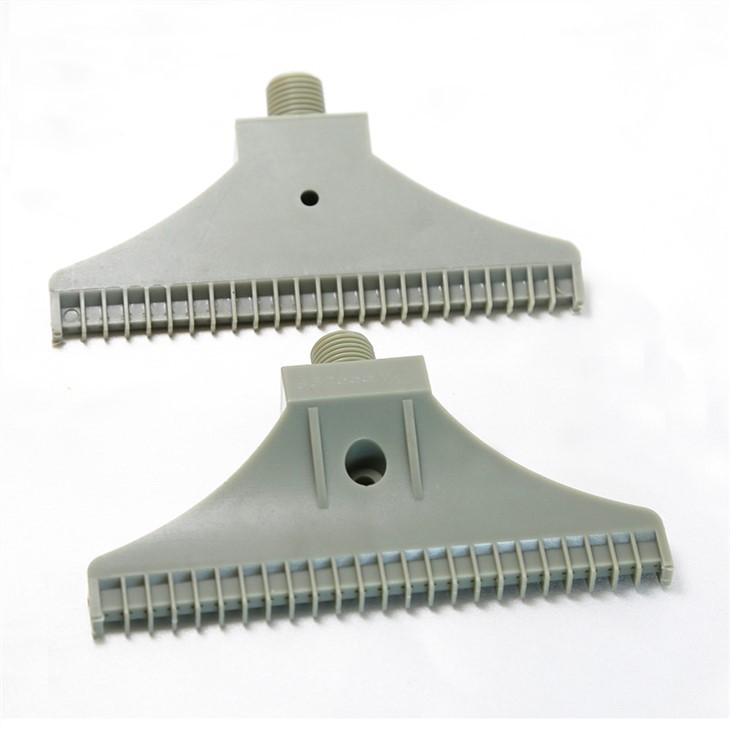

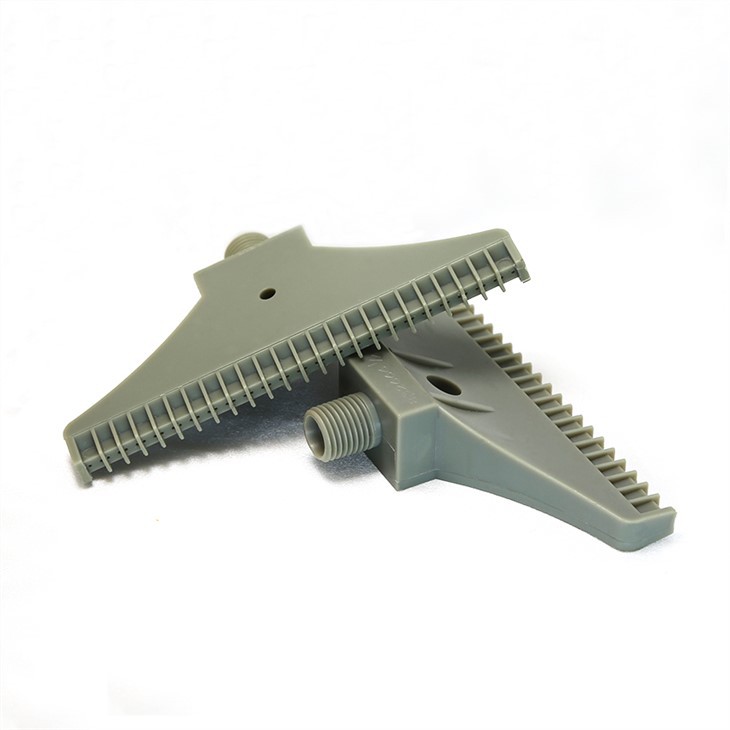

• It’s a extra wide type in 110mm with 48 holes.
• Only 1/4″ male thread size is available.
• Using 110mm 48 Holes Wide Windjet Air Nozzles can help reduce operating costs and noise, improve worker safety and provide more precise, repeatable drying and blow-off.
• 110mm 48 Holes Wide Windjet Air Nozzles use 25% to 35% less air than open pipe with perceived noise reductions ranging from 28% to 60%.

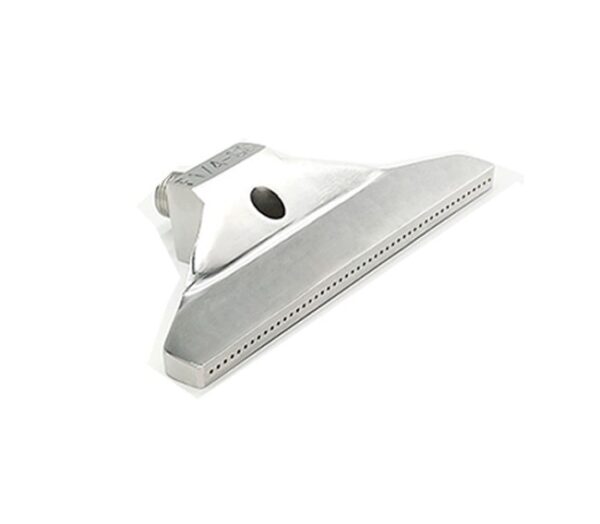

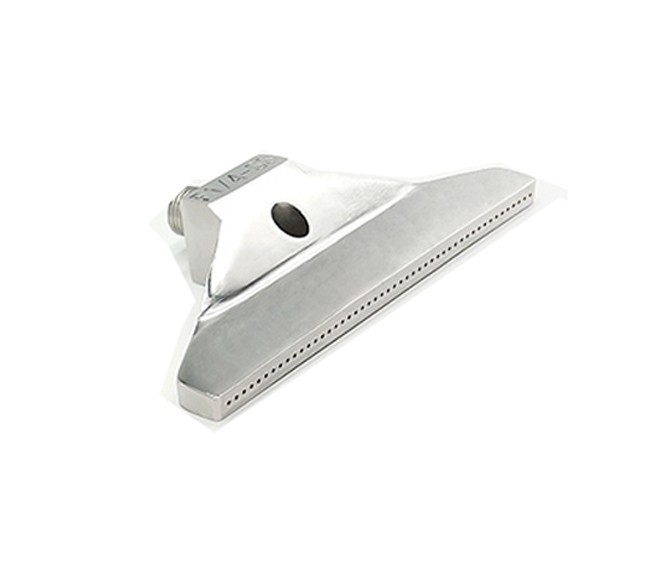

• Max pressure for 110mm 48 Holes Wide Windjet Air Nozzles is 7 bar in plastic, and 30 bar in stainless steel.
• Max operating temperature is 77°C in plastic, and 250 °C in stainless steel.
|
110mm 48 Holes Wide Windjet Air Nozzles |
48 Holes Wide Windjet Air Nozzles |
General Application
1) Applications where impact or a continuous stream of air is needed
2) Air recycling with existing compressed air lines
3) Drying
4) Cooling
5) Blow-off and moving materials
Description
|
Model |
FW |
|
Material |
ABS |
|
Spray pattern |
Flat Fan |
|
Thread size |
1/4″ |
|
Hole |
48 holes |
Dimensions
|
Model No. |
Thread size |
Dimensions(mm) |
|
|
h |
d |
||
|
FW 1/4-ABS |
1/4 |
60 |
110 |
Performance data
|
Series |
Orifice section |
Number of holes |
Air consumption at different wind speed |
||||||||
|
V=2m/s |
V=3m/s |
V=4m/s |
V=5m/s |
V=10m/s |
V=15m/s |
V=20m/s |
V=25m/s |
V=30m/s |
|||
|
FW 1/4-ABS |
3.768 * 10-5 ㎡ |
48 |
2.7 |
4.1 |
5.4 |
6.78 |
13.56 |
20.34 |
27.0 |
33.9 |
40.8 |
Ordering information
|
FW |
1/4″ |
ABS |
|
↓ |
↓ |
↓ |
|
Model No. |
Thread size Size |
Material |
